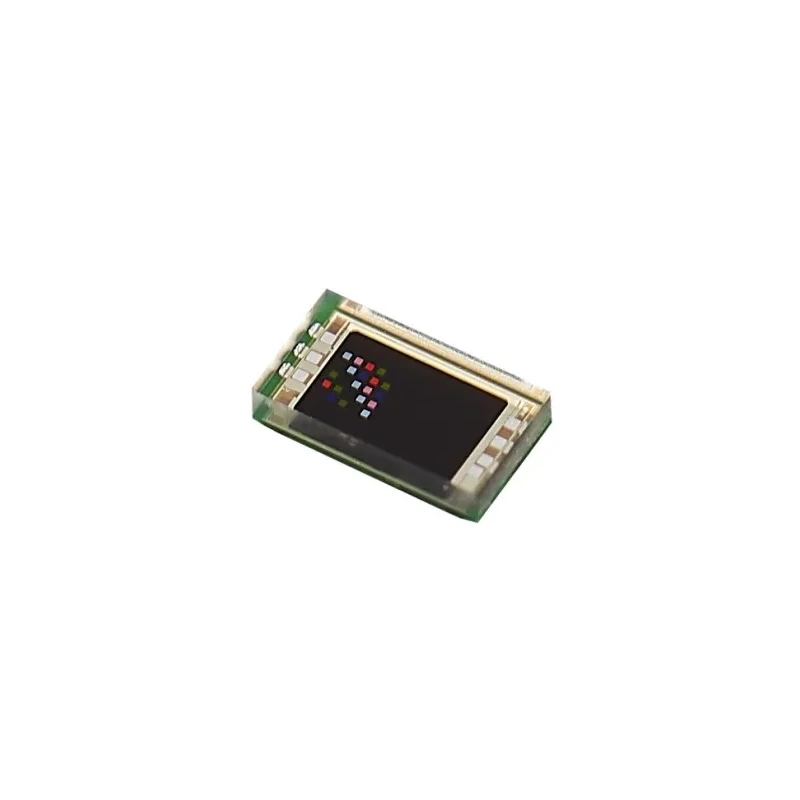

STMicroelectronics Ambient Light Sensor 850 nm BGA VD6283TX45/1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.56mm |
| Length | 1.83mm |
| Model | VD6283TX45/1 |
| Width | 1.01mm |
| Mount Type | Surface |
| Series | VD |
| Maximum Operating Temperature | 85°C |
| Package Type | BGA |
| Minimum Operating Temperature | -30°C |
| Typical Rise Time | 120ns |
| Maximum Supply Voltage | 1.95V |
| Minimum Supply Voltage | 1.65V |
| Output Signal Type | I2C |
| Maximum Wavelength Detected | 850nm |
Key Features
- The sensor features a typical rise and fall time of 120 ns for rapid response.
- It operates with a supply voltage range from 1.65 V to 1.95 V.
- Compact surface-mount BGA package measuring 1.83 mm length, 1.01 mm width, and 0.56 mm height.
- Designed for use in display brightness management and scene light correction applications.
- Operates over a wide temperature range from -30°C to 85°C.
- Outputs data via an I2C signal interface for efficient integration.
- Low power consumption suitable for battery-powered devices.
- Advanced flicker extraction technology supporting LED flicker detection from 100 Hz to 2 kHz.
Product Description
The STMicroelectronics VD6283TX45/1 ambient light sensor is a compact and advanced colour sensor designed to provide fast and accurate measurement of ambient light for industrial and commercial applications. This device operates within a supply voltage range of 1.65 V to 1.95 V and features a Ball Grid Array (BGA) surface mount package with dimensions of 1.83 mm length, 1.01 mm width, and 0.56 mm height. It is engineered to support display brightness management and scene light correction with superior precision.
This sensor includes advanced light flicker extraction capabilities, enabling it to detect and differentiate various flicker waveforms from 100 Hz to 2 kHz, including LED square-wave signals. Such functionality allows simultaneous flicker operations alongside ambient light sensing tasks, which is unique in its performance class. The output signal is communicated via an I2C interface, facilitating seamless integration into a wide range of electronic systems.
Designed for durability and reliability, the VD6283TX45/1 functions effectively over a temperature range from -30°C to 85°C, making it suitable for diverse environments including industrial, automotive non-standard, laboratory, and consumer electronics fields. The sensor is optimized for low power consumption, ideal for portable and battery-operated devices.
This product does not conform to automotive standards and has no specific certifications or approvals listed. It operates accurately within the designed wavelength detection up to 850 nm, making it ideal for applications requiring precise control of ambient light conditions.
The sensor features a typical rise and fall time of 120 ns, ensuring rapid response to changing light conditions. Compact BGA package supports surface mounting on PCBs. Operating voltage between 1.65 V and 1.95 V, compatible with low-voltage systems.
Output signal type: I2C digital communication. Wide operating temperature range from -30°C to 85°C for reliable performance. Advanced flicker detection enhances accuracy in LED lighting environments. Ideal for applications in display brightness control and ambient light adaptation.
Explore more Sensor ICs and electronic components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 1.65 V to 1.95 V.
The sensor features a typical rise and fall time of 120 ns, allowing for rapid response to changing light conditions.
The compact BGA package measures 1.83 mm in length, 1.01 mm in width, and 0.56 mm in height.
It outputs data via an I2C signal interface, facilitating integration into various electronic systems.
The sensor operates effectively over a wide temperature range from -30°C to 85°C.
This model is designed to detect wavelengths up to 850 nm, making it suitable for precise ambient light control applications.
It is designed for display brightness management and scene light correction applications.
Yes, it includes advanced flicker extraction technology that supports LED flicker detection from 100 Hz to 2 kHz.
The VD6283TX45/1 features a surface mount design, suitable for PCB integration.
This product does not conform to automotive standards and has no specific certifications or approvals listed.
It is optimized for low power consumption, making it suitable for battery-powered devices.
This model is part of the VD series of ambient light sensors.
