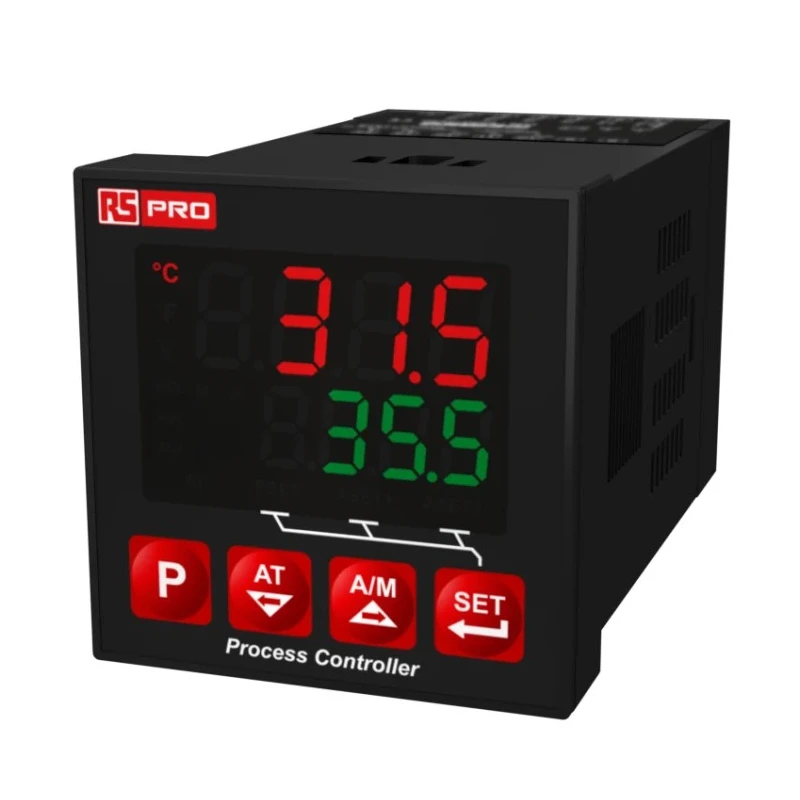

RS PRO ESM Panel Mount PID Temperature Controller 3 Input 3 Output SSR Relay 24V On-Off 222-8147
Specifications
| Country of Origin | Turkey |
|---|---|
| Display Type | LED |
| Brand | RS PRO |
| Operating Temperature | 0 to 50 °C |
| Dimensions | 48 mm x 48 mm |
| Length | 48mm |
| Model | 222-8147 |
| IP Rating | IP20, IP65 |
| Width | 48mm |
| Mount Type | Panel Mount |
| Number of inputs | 3 |
| Output type | SSR, Relay |
| Series | ESM |
| Input Type | RTD, Thermocouple |
| Maximum Operating Temperature | 50°C |
| Control Type | On-Off, PID Controller |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 5A |
| Number of outputs | 3 |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 24V |
| Thermocouple (TC) | L(DIN 43710) J, K, R, S, T, B, E, and N (IEC 584.1) (ITS90), C (ITS90) |
| 24 V, RS stock no | 222-8147 |
| 100 to 240 V, RS stock no | 222-8146 |
| Standard Relay Outputs | 2 pieces 5A@250V at resistive load) |
| SSR Driver Output | Maximum 17mA, Max. 25V |
| Thermo-resistance (RTD) | PT-100 (IEC751) (ITS90) Input: mV, V, mA |
Key Features
- Features universal input supporting thermocouple and RTD sensors.
- Equipped with LED display for process and set values.
- Supports On-Off and PID control modes with auto-tune and self-tune PID.
- Panel mount construction with IP20 and IP65 ratings for protection.
- Operates between 0°C and 50°C ambient temperature.
- Includes programmable heating, cooling, and alarm functions.
- Maximum supply voltage of 24V with 5A maximum current outputs.
- Complies with CE standards and is made in Turkey.
Product Description
RS PRO 222-8147 ESM Series Panel Mount PID Temperature Controller is a high-quality digital process controller designed for precise temperature management in industrial and manufacturing environments. It features universal inputs compatible with various thermocouples and RTD sensors, making it versatile for different temperature monitoring needs.
The controller provides three inputs and three outputs including SSR and relay contacts, enabling complex control schemes such as On-Off and PID control with precise auto-tuning capabilities. The LED display offers clear process and set point indication for reliable operation. Its robust panel mount design with IP20 and IP65 protection levels ensures durability in demanding conditions.
Suitable for applications in textiles, automotive, machine production, and other industrial sectors, this Temperature Controller operates within an ambient temperature range of 0 to 50°C, supporting process efficiencies and safety. Programmable heating, cooling, and alarm functions enhance its adaptability to varied control requirements.
The device is compact with a 48 mm by 48 mm form factor, operates at a maximum supply voltage of 24V, and supports outputs rated up to 5A. CE approved and manufactured in Turkey, it assures quality and compliance with industry standards.
Universal input supports a wide range of thermocouple types and RTD sensors. Auto-tune and self-tune PID control for optimized temperature regulation. Programmable heating, cooling, and alarm functions for flexible control.
Robust panel mount with IP20 and IP65 ratings for protection against dust and water. LED display with 4-digit process and set value visibility. Compact 48 mm x 48 mm dimensions suitable for various control panels. CE certified, ensuring adherence to safety and performance standards.
Applications include textiles, automotive, and machine production industries. For reliable and precise temperature control solutions, explore the RS PRO category on EnvMart to find compatible controllers, sensors, and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions are 48 mm x 48 mm, making it compact and suitable for various control panels.
The maximum supply voltage is 24V.
It features three inputs and three outputs, including SSR and relay contacts.
It operates within an ambient temperature range of 0°C to 50°C.
It supports On-Off and PID control modes, with capabilities for auto-tuning and self-tuning PID.
The panel mount has IP20 and IP65 ratings, providing protection against dust and water.
It is equipped with an LED display for clear visibility of process and set values.
The maximum current output is rated at 5A.
It complies with CE standards, ensuring adherence to safety and performance requirements.
It includes programmable heating, cooling, and alarm functions, allowing for flexible control requirements.
