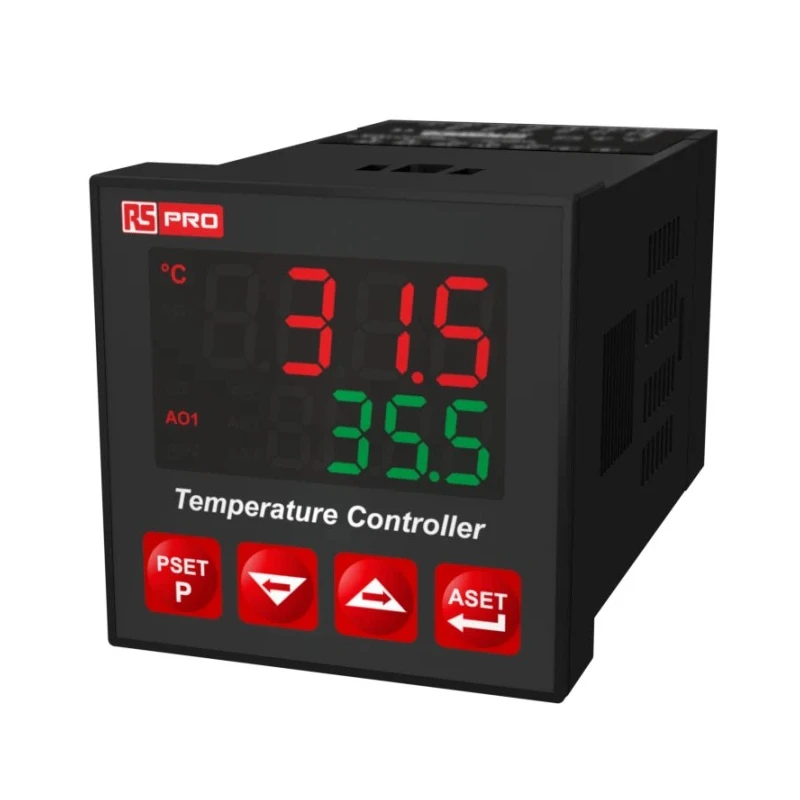

RS PRO ESM Panel Mount PID Temperature Controller 2 Input, 3 Output Relay SSR 24V On-Off Control 222-8142

RS PRO 222-8142 Panel Mount PID Temperature Controller is a high-quality digital temperature control unit from the trusted RS PRO brand tailored for industrial process and temperature regulation. Featuring two universal inputs compatible with thermocouples and RTD sensors, it supports precise temperature measurement and is ideal for diverse industrial and laboratory settings.

The controller provides three outputs including relay and SSR types, allowing for flexible control of heating or cooling systems. Operating at a maximum supply voltage of 24V with a clear LED display, the device supports multiple control strategies such as On-Off, PID, and advanced self-tuning for PID coefficients adaptation, enhancing system responsiveness and accuracy.

Its compact 48mm by 48mm panel mount form factor, combined with an IP65 protection rating at the front and IP20 at the rear, ensures reliable operation in harsh industrial environments. The digital controller accommodates different thermocouple types (J, K, R, S, T) and PT100 resistance sensors, making it highly versatile.

The unit supports programmable heating or cooling functions alongside alarm capabilities, beneficial for critical process monitoring. It is engineered to maintain accuracy within 0.25%, suitable for demanding applications requiring precise temperature control from 0°C to 50°C operating range.

This NEMA 4X rated temperature controller is suitable for use in industrial machines, HVAC systems, manufacturing processes, laboratory instrumentation, and water treatment plants. Its robust construction and compliance with CE standards ensure dependable performance and longevity.

Features two universal inputs compatible with thermocouples and RTDs. Equipped with three outputs including relay and SSR for versatile control options. Operates on 24V supply voltage with LED display for clear indication.

Offers PID and On-Off control modes with self-tuning for system adaptation. Compact panel mount design with IP20 and IP65 protection at rear and front respectively. Supports various thermocouple types selectable via parameters for flexibility.

Designed to work within an operating temperature range of 0°C to 50°C. Accuracy rated at 0.25% for thermocouple and resistance thermometer inputs. Meets CE standards and features NEMA 4X protection class. Includes programmable heating/cooling and alarm functions for advanced control.
