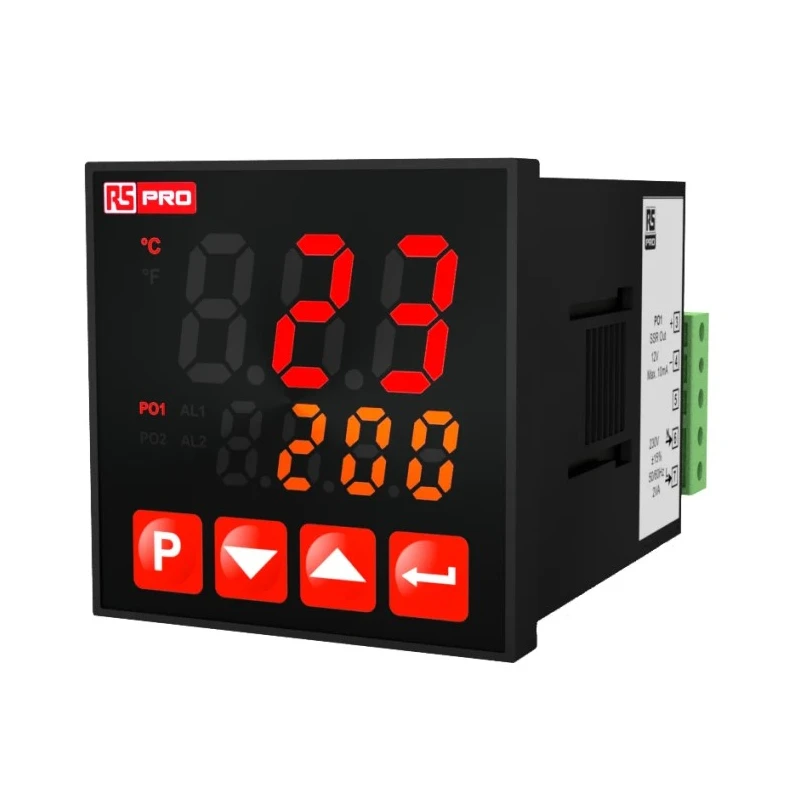

RS PRO ECO Panel Mount PID Temperature Controller 2 Input, 3 Output Relay, SSR 240V 222-8114

RS PRO 222-8114 ECO Panel Mount PID Temperature Controller is a reliable and high-quality device designed for accurate temperature control in various industrial and manufacturing settings. Featuring 2 inputs and 3 outputs with relay and SSR options, this controller ensures precise temperature regulation using PID control methodology.

Equipped with a clear LED display showing process value (PV) and set value (SV), it facilitates easy setup and operation. The controller supports multiple control forms including ON/OFF, P, PI, PD, and advanced PID controls with self-tune and auto-tune functions that adapt PID coefficients to the specific system, enhancing performance and stability.

This unit accepts inputs from thermocouples types J, K, R, S, T, L conforming to IEC584.1 and ITS90 standards, and RTD sensors Cu-50 and PT-100 (IEC751 ITS90), allowing integration with diverse industrial sensors.

The housing and panel mount configuration with IP65 protection at the front guarantees resistance to dust and water ingress, suitable for demanding industrial environments. Operating temperature ranges from 0 °C to +50 °C with a maximum humidity of 90%, non-condensing, ensuring robust performance even under challenging conditions.

The device operates on a wide supply voltage range of 24 V or 100 V to 240 V AC with a frequency of 50/60Hz and ±15% tolerance, providing versatility in power supply scenarios. Alarm outputs are programmable and provided through relay contacts capable of handling 5A at 250V resistive loads, enabling effective fault monitoring and safety control.

Applications for this controller cover automation systems, manufacturing equipment, and general industrial temperature control where precise and reliable regulation is critical. Its compact size of 48x48 mm with a panel depth of 86.5 mm simplifies installation into existing control panels.

Features a 3-digit process (PV) and 4-digit set (SV) LED display. Programmable ON/OFF, P, PI, PD, and PID control forms with self-tune and auto-tune. Supports thermocouple and RTD inputs with various types compliant to IEC and ITS standards.

Panel mount with IP65 front protection and IP20 rear protection. Wide supply voltage range with tolerance for industrial power variations. Alarm output relay rated for 5A at 250V resistive load. Designed for industrial, manufacturing, and automation control applications.
