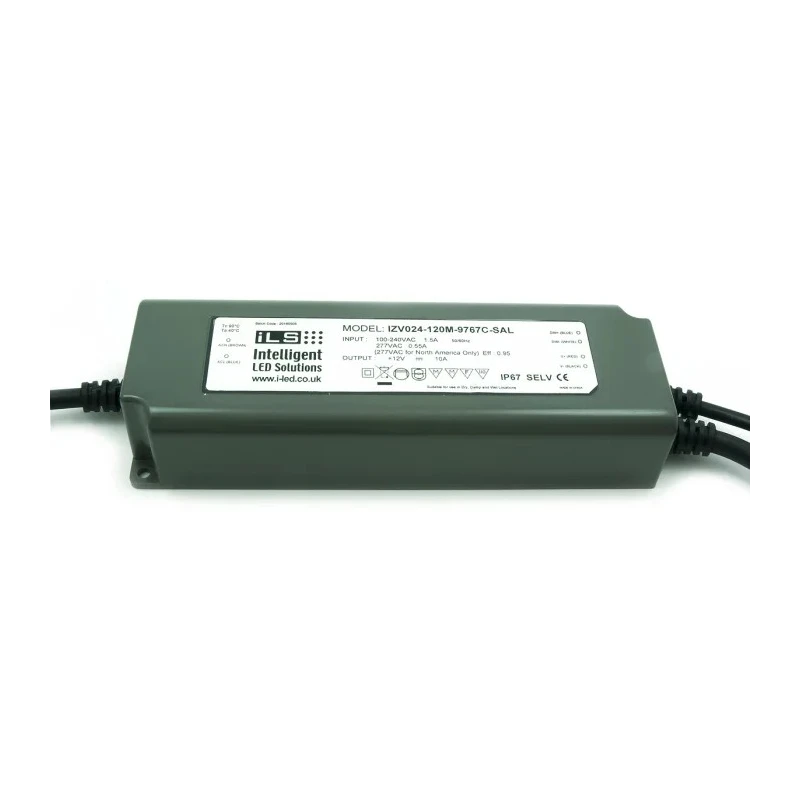

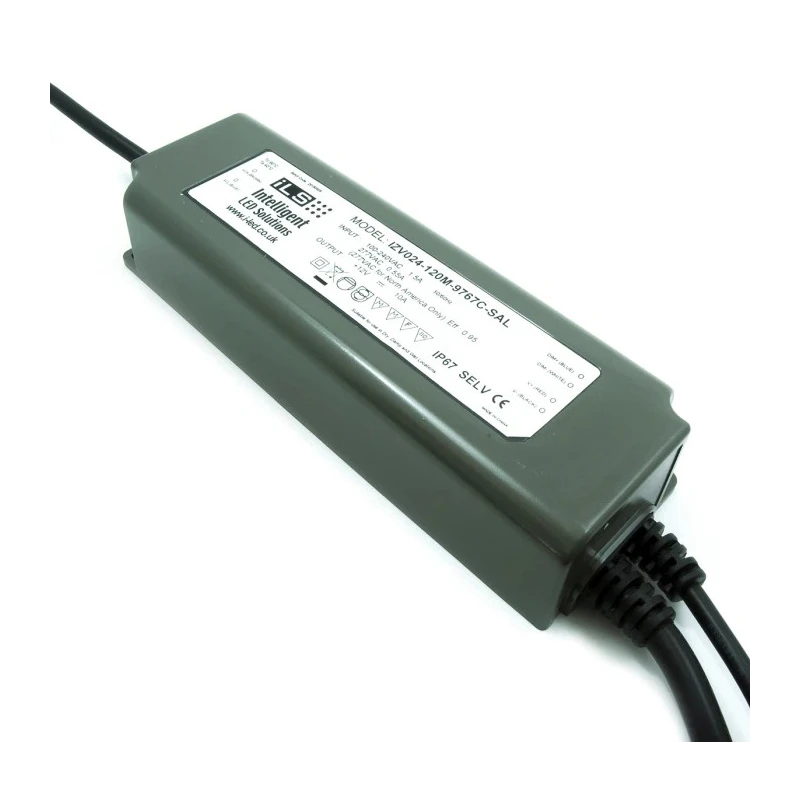

Intelligent LED Solutions IP67 5 Output Constant Voltage PWM Resistance LED Driver 24V 120W 5A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Intelligent LED Solutions |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | IZV |
| Configuration | Encapsulated |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 120W |
| Input Voltage | 305, 90V |
| Output Voltage | 24V |
| Power Dissipation | 0.5W |
| Standards/Approvals | CB, UL, CE, SELV, ENEC |
| Dimming Operation | 0 to 10 V PWM Resistance |
| Primary Type | AC |
| Driver Current | 5A |
| LED Voltage | 305, 90V |
Key Features
- The LED driver features an IP67 waterproof rating suitable for harsh environments.
- It supports a universal AC input voltage range of 90V to 305V.
- Designed with power factor correction for energy efficiency and reduced electrical losses.
- Mounting is accomplished using screws for secure installation.
- The LED driver operates in constant voltage mode for consistent lighting output.
- It has five independent output channels to power multiple LED strips simultaneously.
- Encapsulated configuration protects internal circuits from dust and moisture.
- Compliance with safety standards including CB, UL, CE, SELV, and ENEC ensures reliable operation.
Product Description
Intelligent LED Solutions IZV024-120M-9767C-SAL is an advanced constant voltage LED driver designed for robust and reliable LED lighting applications. Featuring an IP67 ingress protection rating, this driver is well suited for demanding indoor and outdoor environments where protection from dust and water is critical. The device delivers a 24V output voltage with a maximum output power of 120W and a driver current of 5A, enabling efficient powering of multiple LED strips.
Equipped with a universal AC input voltage range from 90V to 305V, the driver adapts to various power supply conditions. The unit includes an integrated 3-in-1 dimming function allowing adjustment via 0 to 10 V, PWM signals, or resistance, providing flexibility for different lighting control systems.
The product's encapsulated construction offers protection against environmental contaminants, while mounting via screws ensures a secure installation. Power factor correction is built in to optimize electrical performance and minimize power losses.
Certified to international standards including CB, UL, CE, SELV, and ENEC, this LED driver complies with key safety and performance requirements. Its multifunctional outputs support five LED channels, making it ideal for applications such as flexible LED strips, decorative lighting, indoor illumination, and architectural lighting design.
The LED driver features an IP67 waterproof rating suitable for harsh environments. It supports a universal AC input voltage range of 90V to 305V. The driver provides a 3-in-1 dimming function: 0-10V, PWM, and resistance for versatile brightness control.
Designed with power factor correction for energy efficiency and reduced electrical losses. Mounting is accomplished using screws for secure installation. The LED driver operates in constant voltage mode for consistent lighting output.
It has five independent output channels to power multiple LED strips simultaneously. Encapsulated configuration protects internal circuits from dust and moisture. Compliance with safety standards including CB, UL, CE, SELV, and ENEC ensures reliable operation.
Suitable for flexible LED strips, indoor lighting, decorative and architectural lighting applications.
This LED driver from Intelligent LED Solutions is a reliable choice for industrial, commercial, and architectural lighting projects requiring precise dimming and robust protection. Explore more LED driver options and components in the EnvMart LED Lighting Components category.
Explore more products in our LED Drivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 120W.
This model features five independent output channels for powering multiple LED strips simultaneously.
It includes a 3-in-1 dimming function that operates via 0 to 10V, PWM signals, or resistance.
The output voltage is 24V.
Mounting is accomplished using screws for a secure installation.
The encapsulated configuration protects the internal circuits from dust and moisture.
It complies with safety standards including CB, UL, CE, SELV, and ENEC.
It is designed with power factor correction for energy efficiency and reduced electrical losses.
The driver current is 5A.
The terminal type for this LED driver is wire.
