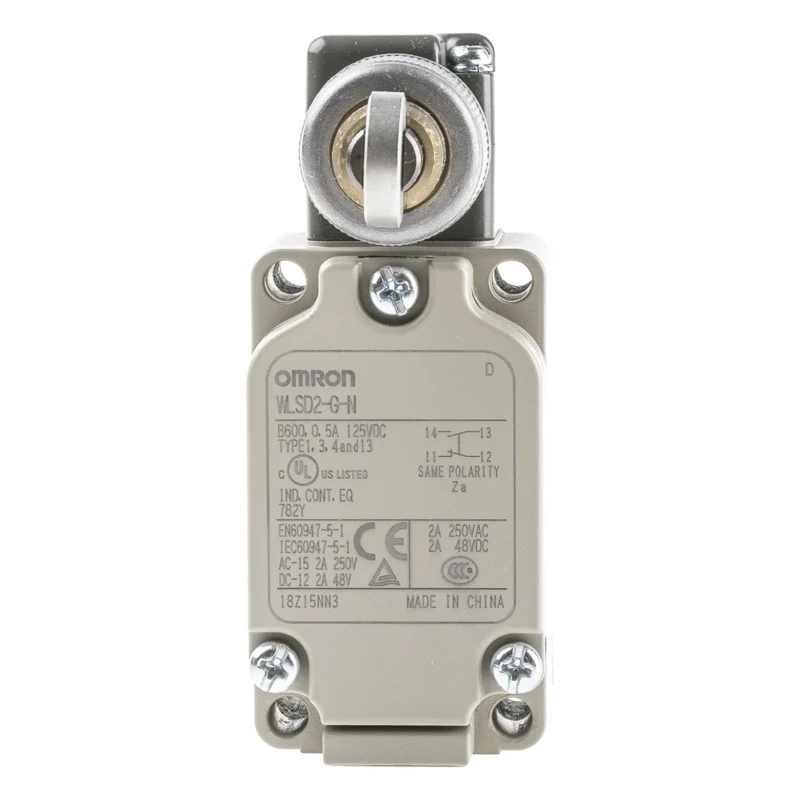

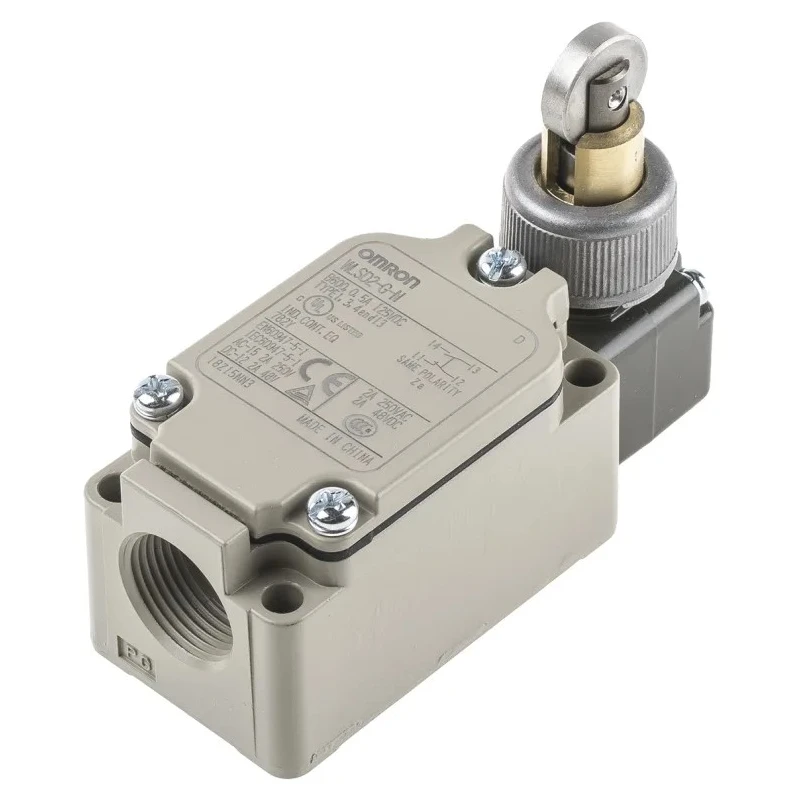

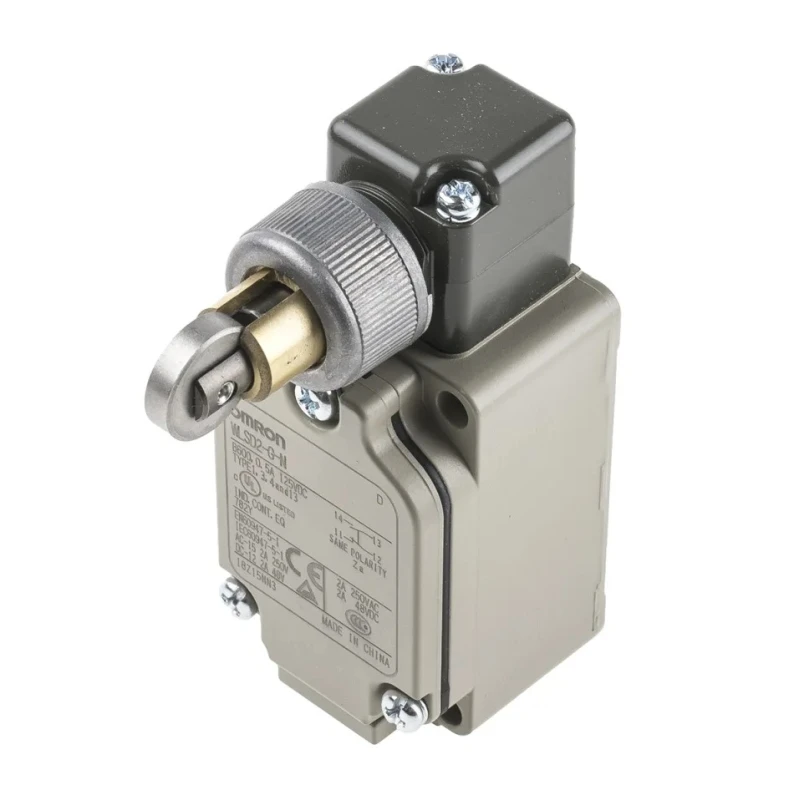

Omron WL Series Roller Plunger Limit Switch DPDB IP67 Stainless Steel Resin Epoxy Die Cast Aluminium WLSD2-G-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Length | 40mm |
| Model | WLSD2-G-N |
| Depth | 96.2mm |
| IP Rating | IP67 |
| Width | 67.3mm |
| Housing Material | Stainless Steel, Resin, Epoxy Resin, Die Cast Corrosion Proof Aluminium |
| Series | WL |
| Maximum Operating Temperature | 85°C |
| Mounting Orientation | Front |
| Contact Configuration | DPDB |
| Actuator Type | Roller Plunger |
| Contact Type | Gold |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | UL, RoHS, IEC, EC, CSA, CE, CCC |
| Operating Force | 40.03N |
| Mechanical Life | 15000000Operations |
| Switching AC Voltage | 500V |
| Conduit Entry | PG13.5 |
| Omron Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A MaxBrand | Omron |
Key Features
- The roller plunger actuator ensures precise operation and long service life.
- DPDB (double pole double throw) contact configuration supports versatile electrical control.
- IP67 rated housing provides excellent protection against dust and water ingress.
- Constructed with stainless steel, resin, epoxy resin, and die cast corrosion-proof aluminium for harsh environments.
- Operates reliably within a temperature range of -10°C to 85°C.
- Mechanical life rated for 15 million operations for industrial durability.
- Rated for a maximum switching AC voltage of 500V and maximum current of 10A.
- Includes mounting orientation for front installation.
Product Description
The Omron WL Series Roller Plunger Limit Switch model WLSD2-G-N is a high-quality industrial component designed for precise position detection and control in automation and manufacturing systems. Featuring a robust roller plunger actuator and DPDB (double pole double throw) contact configuration, this switch delivers reliable electrical switching up to 500V AC and maximum current handling of 10A, suitable for heavy-duty industrial applications.
Constructed from corrosion-resistant stainless steel, resin, epoxy resin, and die cast corrosion-proof aluminium, this limit switch is engineered to withstand adverse industrial environments, including exposure to dust, water, and welding spatter. Its IP67 protection rating guarantees dust-tight sealing and protection against water immersion, ensuring longevity and consistent performance.
The device measures 40mm in length, 67.3mm in width, and 96.2mm in depth, making it compact enough for diverse mounting needs. It operates efficiently within a temperature range from -10°C to 85°C, supporting stability across various thermal conditions. Its mechanical life extends up to 15 million operations, signifying excellent durability in continuous industrial use.
The roller plunger actuator allows full 360° rotation, enabling precise alignment to the operational requirements of conveyor systems, automated machinery, welding stations, and other industrial processes. The front mounting orientation supports easy installation and maintenance.
The roller plunger actuator ensures precise operation and long service life. DPDB contact configuration supports versatile electrical control. IP67 rating protects against dust and water ingress. Housing materials include stainless steel, resin, epoxy resin, and die cast aluminium for corrosion resistance.
Operating temperature range from -10°C to 85°C. Mechanical life of 15 million operations for extended durability. Rated for a maximum switching AC voltage of 500V and current up to 10A. Operating force of 40.03N ensures reliable actuation.
Mounting orientation is front for flexible installation.
This Omron Limit Switch is ideal for industrial automation, manufacturing process controls, conveyor systems, lifting equipment, welding stations, and other precision position sensing applications. Its rugged construction ensures dependable operation even in harsh environments, safeguarding your equipment and improving system reliability.
Explore more industrial automation components and high precision switches to enhance your control systems at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum switching AC voltage of 500V and a maximum current of 10A.
It has an IP67 rating, providing excellent protection against dust and water ingress.
The housing is constructed from stainless steel, resin, epoxy resin, and die cast corrosion-proof aluminium, making it suitable for harsh environments.
It operates efficiently within a temperature range of -10°C to 85°C.
The mechanical life is rated for up to 15 million operations, indicating its durability for industrial use.
It uses a roller plunger actuator, which allows for precise operation and alignment.
The mounting orientation is front, which supports easy installation and maintenance.
It measures 40mm in length, 67.3mm in width, and 96.2mm in depth.
The operating force is 40.03N, ensuring reliable actuation in various applications.
It features a DPDB (double pole double throw) contact configuration, allowing for versatile electrical control.
It complies with several standards including UL, RoHS, IEC, EC, CSA, CE, and CCC.
This model is suitable for industrial automation, manufacturing process controls, conveyor systems, and welding stations.
