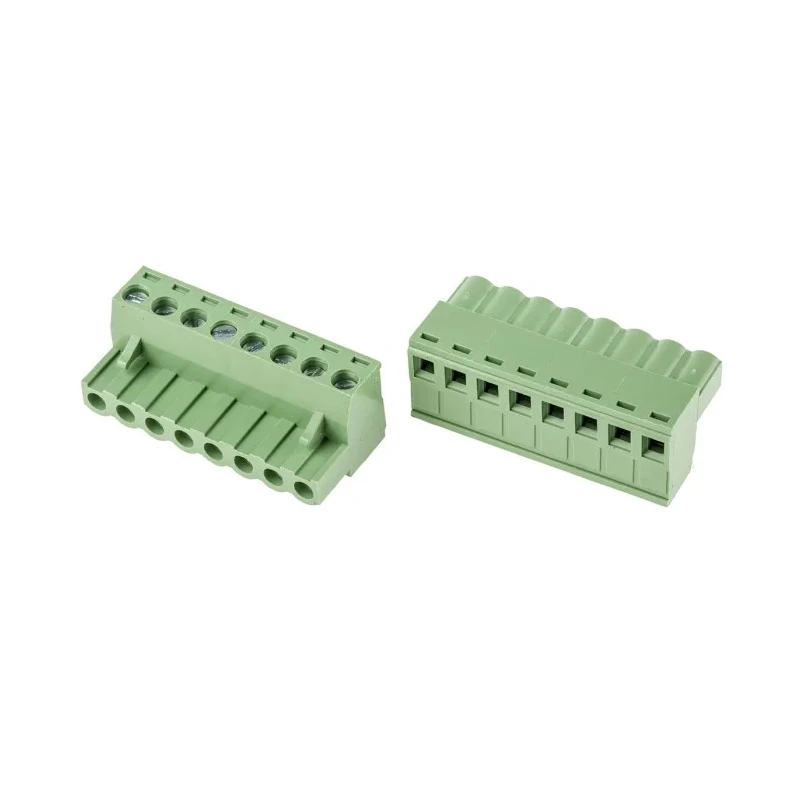

RS PRO Pluggable Terminal Block 8-Contact 5 mm Pitch 1 Row 250V 15A CTB9202

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Pluggable Terminal Block 8-Contact 5 mm Pitch 1 Row 250V 15A CTB9202

Name: RS PRO Pluggable Terminal Block 8-Contact 5 mm Pitch 1 Row 250V 15A CTB9202
Brand: RS PRO
SKU: 110275



Category Pluggable Terminal Blocks Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	RS PRO
Colour	Green
Orientation	Right Angle
Current	15A
Length	40mm
Model	CTB9202
Depth	15mm
Width	18.2mm
Housing Material	Polyamide
Series	CTB9202
Number of Rows	1
Pitch	5mm
Standards/Approvals	cULus
Number of Contacts	8
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	3.3mm²
Minimum Wire Size AWG	14AWG
Maximum Wire Size AWG	22AWG

Key Features

Constructed with polyamide housing providing UL94-V0 flame retardant properties.
Features rising clamp terminals with captive screws for secure wire retention.
Supports wiring from 0.2 mm² to 3.3 mm² (14 AWG to 22 AWG).
Operates safely at voltages up to 250V and a current rating of 15A.
Compact design with dimensions 40 mm x 18.2 mm x 15 mm (LxWxD).
Right-angle orientation suiting diverse PCB mounting applications.
Complies with cULus certification standards.
Green color housing aiding visual identification.

Product Description

RS PRO CTB9202 is a high-quality pluggable terminal block designed for electronic and industrial component applications. Featuring 8 contacts arranged in a single row with a 5 mm pitch, this connector ensures reliable and efficient electrical connections.

The terminal block's polyamide housing is crafted from UL94-V0 flame retardant material, providing excellent safety in demanding environments. Its rising clamp terminal design utilizes captive screws for secure wire retention, reducing maintenance and connection issues.

This terminal block supports a wide wire size range, from 0.2 mm² to 3.3 mm² (equivalent to 14 AWG to 22 AWG), suitable for a variety of wiring conditions including solid and stranded cables. The unit is rated for 15 amps of current and supports voltages up to 250 volts, making it suitable for a broad spectrum of industrial, manufacturing, and electronic assembly uses.

The connector features a right-angle orientation, facilitating versatile PCB mounting and assembly configurations while conserving board space. Its compact dimensions (40 mm length, 18.2 mm width, and 15 mm depth) enable integration in tight spaces.

Certified under cULus standards, the RS PRO CTB9202 guarantees compliance with North American safety and performance requirements. Its green coloration assists in visual identification during installation and service, supporting effective maintenance practices.

Constructed with polyamide housing providing UL94-V0 flame retardant properties. Features rising clamp terminals with captive screws for secure wire retention. Supports wiring from 0.2 mm² to 3.3 mm² (14 AWG to 22 AWG). Operates safely at voltages up to 250V and a current rating of 15A.

Compact design with dimensions 40 mm x 18.2 mm x 15 mm (LxWxD). Right-angle orientation suiting diverse PCB mounting applications. Complies with cULus certification standards. Green color housing aiding visual identification.

This pluggable terminal block is ideally suited for use in electronic equipment manufacturing, industrial control panels, automation systems, and power distribution frameworks. It provides ease of wiring, maintenance, and reliable operation ensuring long-term system stability.
