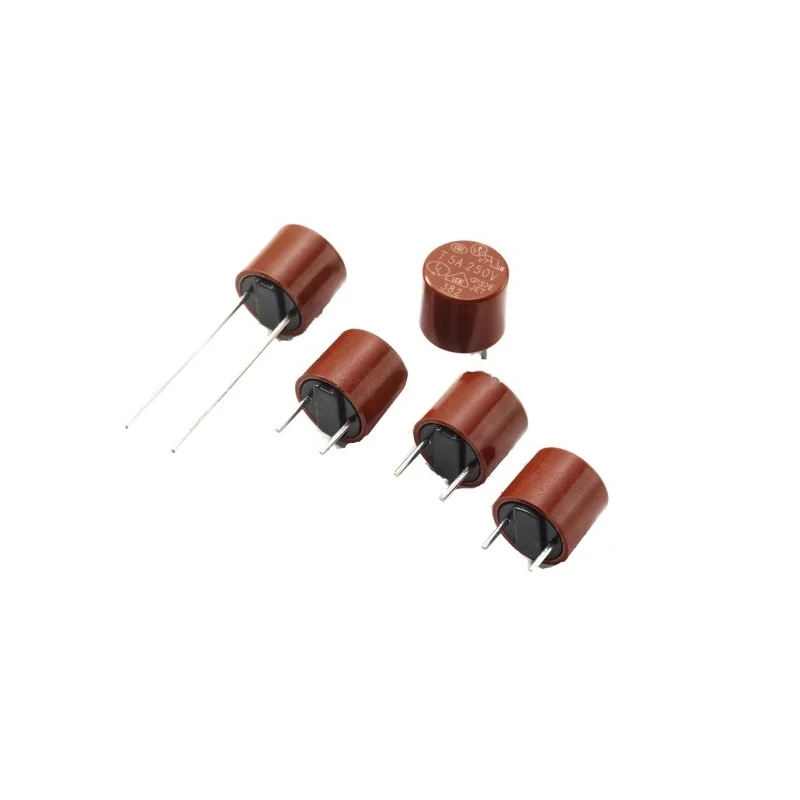

Littelfuse Non-Resettable Fuse Radial Lead 2A 250V AC Fast Acting Thermoplastic Polyamide Body 38212000410
Specifications
| Country of Origin | Philippines |
|---|---|
| Voltage | 250V ac |
| Diameter | 8.5mm |
| Brand | Littelfuse |
| Body Material | Thermoplastic Polyamide |
| Height | 8mm |
| Length | 18.8mm |
| Current Rating | 2A |
| Series | 382 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Lead Length | 4.3mm |
| Breaking Capacity | 100A |
| Standards/Approvals | CSA, UL |
| Lead Diameter | 0.6mm |
| Fuse Characteristics | Fast Acting |
| Lead Orientation | Radial |
Key Features
- This fuse features a radial lead orientation for easy installation.
- Rated current is 2 amperes with 250 volts AC voltage capability.
- Constructed with a thermoplastic polyamide body ensuring durability and heat resistance.
- Has a fast-acting characteristic suitable for sensitive circuit protection.
- Breaking capacity is 100 amperes, compliant with CSA and UL standards.
- Operates reliably between -40°C to a maximum of 85°C.
- Series 382 fuse offering low internal resistance and vibration resistance.
- Ideal for use in battery chargers, consumer electronics, power supplies, and industrial controllers.
Product Description
Littelfuse 38212000410 Non-Resettable Fuse is a radial lead fast acting fuse rated at 2 amperes and 250 volts AC, with a durable thermoplastic polyamide body. This fuse provides reliable time lag protection and enhanced breaking capacity designed according to IEC 60127-3 standards.
Its shock safe casing and vibration resistance make it suitable for use in demanding industrial environments. The fuse dimensions include a length of 18.8 mm, 8.5 mm diameter, and height of 8 mm, with leads measuring 4.3 mm in length and 0.6 mm in diameter.
Operating temperature ranges from -40°C minimum to 85°C maximum ensuring reliable performance in varied environments. The fuse complies with internationally recognized CSA and UL standards, holding a breaking capacity of 100A, which provides robust circuit protection.
Common applications for the Littelfuse 382 Series include battery chargers, consumer electronics, power supplies, and industrial controllers. This fuse line features thermoplastic polyamide bodies that withstand temperature and mechanical stress.
This fuse features a radial lead orientation for easy installation. Rated current is 2 amperes with 250 volts AC voltage capability. Constructed with a thermoplastic polyamide body ensuring durability and heat resistance.
Has a fast-acting characteristic suitable for sensitive circuit protection. Breaking capacity is 100 amperes, compliant with CSA and UL standards. Dimensions are 18.8 mm length, 8.5 mm diameter, 8 mm height with 4.3 mm lead length and 0.6 mm lead diameter.
Operates reliably between -40°C to a maximum of 85°C. Series 382 fuse offering low internal resistance and vibration resistance. Ideal for use in battery chargers, consumer electronics, power supplies, and industrial controllers.
This Littelfuse non-resettable Fuse is perfect for industrial, commercial, and electronic circuit protection applications. Browse more reliable circuit protection components at EnvMart to meet your industrial and electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2 amperes and a voltage rating of 250 volts AC.
The breaking capacity of this fuse is 100 amperes, which provides robust circuit protection.
The dimensions are 18.8 mm in length, 8.5 mm in diameter, and 8 mm in height, with leads measuring 4.3 mm in length and 0.6 mm in diameter.
It is constructed with a thermoplastic polyamide body, ensuring durability and heat resistance.
The operating temperature range is from -40°C to a maximum of 85°C.
This fuse features a fast-acting characteristic, making it suitable for sensitive circuit protection.
It complies with CSA and UL standards, ensuring it meets recognized safety and performance criteria.
This model has a radial lead orientation, which facilitates easy installation.
Common applications include battery chargers, consumer electronics, power supplies, and industrial controllers.
This fuse belongs to the 382 series, which is known for its low internal resistance and vibration resistance.
The country of origin for this fuse is the Philippines.
It is designed for non-resettable circuit protection in various industrial, commercial, and electronic applications.
