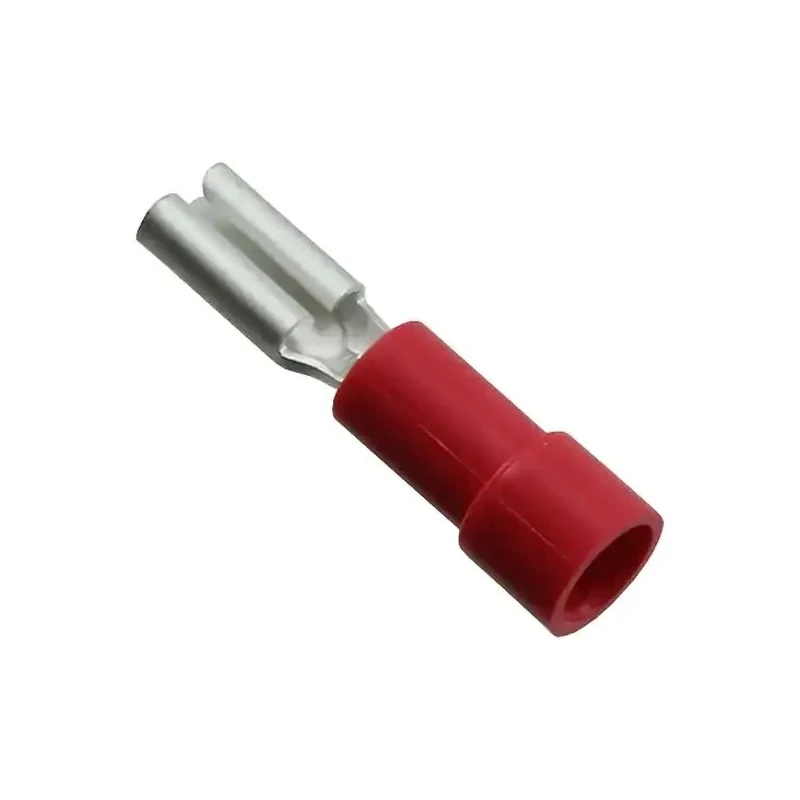

Molex Red Insulated Female Spade Connector Crimp 2.79 x 0.81 mm Tab Size 22 AWG to 18 AWG 190170005
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Red |
| Orientation | Straight |
| Gender | Female |
| Insulation | Insulated |
| Contact Material | Brass |
| Series | 19017 |
| Termination Type | Crimp |
| Insulation Material | Polyvinyl Chloride |
| Standards/Approvals | CSA LR18689, UL E79133 |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Tab Width | 2.79mm |
| Tab Thickness | 0.81mm |
| Tab Size | 2.79 x 0.81 mm |
Key Features
- This connector features a red insulated design for clear identification.
- Constructed with brass contact material plated with tin for enhanced conductivity and durability.
- Designed with a straight orientation for easy and reliable connections.
- Insulation is made from polyvinyl chloride, providing electrical safety and environmental resistance.
- Suitable for crimp termination type to ensure secure and stable wire connections.
- Certified to CSA LR18689 and UL E79133 standards, assuring quality and compliance.
- Compatible with wire sizes ranging from 22 AWG to 18 AWG, covering common wiring applications.
- Compact tab dimensions of 2.79 mm width and 0.81 mm thickness for versatile use.
Product Description
The Molex 190170005 is a high-quality insulated female spade connector designed for crimp termination. It features a straight orientation and specifically sized tabs measuring 2.79 x 0.81 mm, optimized for wire sizes 22 AWG to 18 AWG (0.35 to 0.80 mm²). The connector's red insulation and polyvinyl chloride material offer superior electrical insulation and environmental protection.
Constructed with brass as the contact material and plated with tin, this spade connector ensures excellent electrical conductivity and corrosion resistance. Its crimp termination type allows for secure attachment to wires, making it suitable for applications in electronic components, power connectors, and wire terminal assemblies.
This connector complies with recognized CSA LR18689 and UL E79133 standards, making it suitable for industrial, manufacturing, and laboratory use where reliable and certified wire terminations are essential.
The compact dimensions and compatibility with common wire gauges make this Molex Spade Connector ideal for various electronics and electrical installations requiring robust and safe connections.
This connector features a red insulated design for clear identification. Constructed with brass contact material plated with tin for enhanced conductivity and durability. Designed with a straight orientation for easy and reliable connections.
Insulation is made from polyvinyl chloride, providing electrical safety and environmental resistance. Suitable for crimp termination type to ensure secure and stable wire connections. Certified to CSA LR18689 and UL E79133 standards, assuring quality and compliance.
Compatible with wire sizes ranging from 22 AWG to 18 AWG, covering common wiring applications. Compact tab dimensions of 2.79 mm width and 0.81 mm thickness for versatile use. Explore more high-quality connectors and electronic components in the Molex range at EnvMart for professional and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this spade connector is 2.79 mm in width and 0.81 mm in thickness.
This model is compatible with wire sizes ranging from 22 AWG to 18 AWG.
The contact material is brass, which is plated with tin for enhanced conductivity.
It uses a crimp termination type to ensure secure and stable wire connections.
The connector is designed with a straight orientation for easy and reliable connections.
The insulation is made from polyvinyl chloride, providing electrical safety and environmental resistance.
It is certified to CSA LR18689 and UL E79133 standards, ensuring quality and compliance.
The insulation of this connector is red, allowing for clear identification.
The country of origin for this spade connector is the United States.
This connector belongs to the Molex 19017 series.
This model is suitable for applications in electronic components, power connectors, and wire terminal assemblies.
The dimensions of the tabs are 2.79 mm in width and 0.81 mm in thickness.
