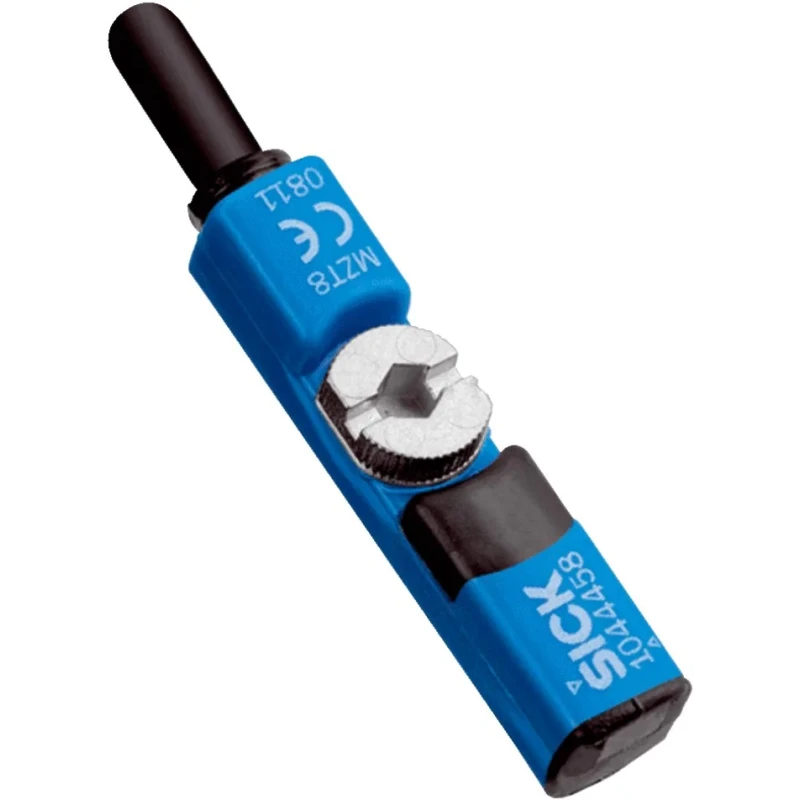

SICK Pneumatic Sensor T-Slot Construction with LED Indicator IP68 IP69K 30V DC Magnetic Cylindrical Sensor MZT8-03VPS-KUB

The SICK MZT8-03VPS-KUB pneumatic sensor is designed for reliable piston position detection in pneumatic actuators. Featuring a T-slot construction and a magnetic cylindrical sensor measurement principle, this sensor is suited to use in standard cylinders, linear slides, and grippers, as well as round rod, tie-rod, profile cylinders, and those with dovetail grooves when adapters are used.

The sensor housing, made from durable polyamide 12 plastic, exhibits excellent resistance to harsh industrial environments with IP68 and IP69K enclosure ratings, safeguarding against dust ingress, water jets, and high-pressure washdowns. Its temperature resistance up to 100°C supports applications with elevated thermal conditions.

The MZT8-03VPS-KUB sensor utilizes patented Giant Magneto Resistive (GMR) technology combined with SICK ASIC electronics to provide precise switching on the first attempt and prevent multiple switching, increasing machine efficiency and reliability.

Installation is simplified by the patented quick-fix mechanism using a combined hexagon socket and slotted screw, allowing mounting from above without removing cylinder end caps, thereby saving significant service time. The compact sensor with a 2.9mm diameter accommodates short stroke cylinders where space is limited.

This sensor operates on a 30V DC voltage supply with a PNP type switching action and includes an LED indicator for visual status monitoring. Its robustness against shock and vibration reduces sensor displacement in slots and lowers maintenance expenses significantly.

Industries including consumer goods, automotive, metalworking, electronics, solar technology, and machine building benefit from its precise position monitoring capabilities, which include clamping cylinder monitoring, cylinder end position detection, gripper state checking, and indexing station position control.

The device meets internationally recognized standards DIN 40050, EN 60947-5-2, and EN 60529, assuring dependable and consistent performance in demanding industrial applications.

Choose the SICK MZT8-03VPS-KUB pneumatic sensor for an industrial-grade solution that delivers durable, precise piston position detection and efficient installation, enhancing machine uptime and reducing operational costs.

Explore more sensors and pneumatic tools within the Industrial Tools & Equipment category at EnvMart for comprehensive system integration. Designed for standard cylinders, linear slides, and grippers with T-slot and adapters.

IP68 and IP69K enclosure ratings for dust and high-pressure water protection. Temperature resistant up to 100°C for high-temperature applications. Easy mounting with combined fixing screw for fast installation and replacement.

Patented GMR technology ensures accurate switching on the first attempt. Compact 2.9mm diameter housing suitable for short stroke cylinders. Robust against shock and vibration, minimizing maintenance costs. Complies with DIN 40050, EN 60947-5-2, and EN 60529 standards.
