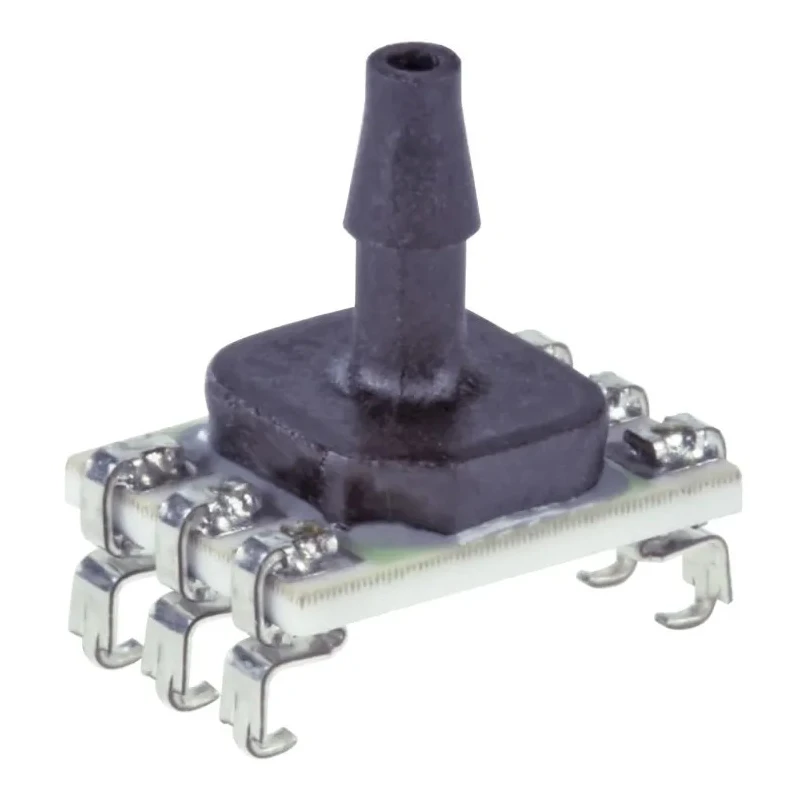

Honeywell Technologies Gauge Pressure Sensor PCB Mount SMT 6-Pin ±0.25% Accuracy 5V ABPMANV060PG2A3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 420 kPa |
| Height | 10.63mm |
| Length | 7.3mm |
| Model | ABPMANV060PG2A3 |
| Sensor Type | Gauge Pressure Sensor |
| Mount Type | PCB |
| Series | ABP |
| Maximum Operating Temperature | 85°C |
| Port Type | Single Axial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 1724kPa |
Key Features
- Compact SMT gauge pressure sensor designed for PCB installation.
- Operates with a maximum supply voltage of 5 volts for efficient power usage.
- Pressure range up to 420 kPa with a maximum overload pressure of 1724 kPa.
- Temperature operation range from -40°C to 85°C suitable for harsh environments.
- Outputs ratiometric electrical signals compatible with analog or digital interfaces.
- Single axial barbed port designed for easy connection and integration.
- 6-pin configuration saves PCB space and simplifies mounting.
- Meets RoHS compliance standards ensuring environmental safety.
Product Description
Honeywell ABPMANV060PG2A3 Gauge Pressure Sensor is a compact SMT sensor designed specifically for PCB mounting to measure gauge pressure with high accuracy of ±0.25%. It operates from a single 5V supply voltage and delivers reliable ratiometric electrical signals for precise measurement and control.
This sensor supports a maximum operating pressure of 420 kPa and withstands overload pressures up to 1724 kPa, ensuring durability in demanding industrial environments. Its wide temperature operating range from -40°C to 85°C makes it suitable for harsh conditions encountered in various applications.
The compact 6-pin SMT package design is optimized to save PCB space while simplifying integration. The single axial barbed port facilitates secure and efficient pressure sensing for gases and liquids when coated with protective gel. It is produced under ISO 9001 standards and complies with RoHS environmental directives.
This sensor is suitable for diverse industrial and commercial uses including CPAP and ventilator pressure monitoring, pneumatic control and valve feedback, process gas monitoring, and consumer appliances like coffee makers and washing machines. It supports both analog and 12-bit digital outputs compatible with I2C or SPI interfaces.
Compact SMT gauge Pressure Sensor with 6-pin PCB mount. Accurate pressure measurement within ±0.25% tolerance. Wide temperature range from -40°C to 85°C for reliability. Ratiometric output supports analog and digital interfaces.
Robust single axial barbed port for pressure connection. Compliant with RoHS and ISO 9001 standards. Ideal for industrial, medical, and consumer device applications. Explore our wide range of precision sensors and electronic components suitable for industrial automation, HVAC systems, medical equipment, and manufacturing on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy of this gauge pressure sensor is ±0.25%.
It supports a maximum operating pressure of 420 kPa.
The sensor operates within a temperature range of -40°C to 85°C.
It outputs ratiometric electrical signals compatible with both analog and digital interfaces.
The sensor features a compact 6-pin SMT package designed for easy PCB mounting.
The maximum supply voltage for this model is 5V.
It has a single axial barbed port for secure pressure connection.
The dimensions are 10.63mm in height and 7.3mm in length.
It complies with RoHS standards and is produced under ISO 9001 quality management standards.
It is suitable for applications such as CPAP and ventilator pressure monitoring, pneumatic control, and process gas monitoring.
The maximum overload pressure is 1724 kPa.
The minimum operating pressure is 0 psi.
