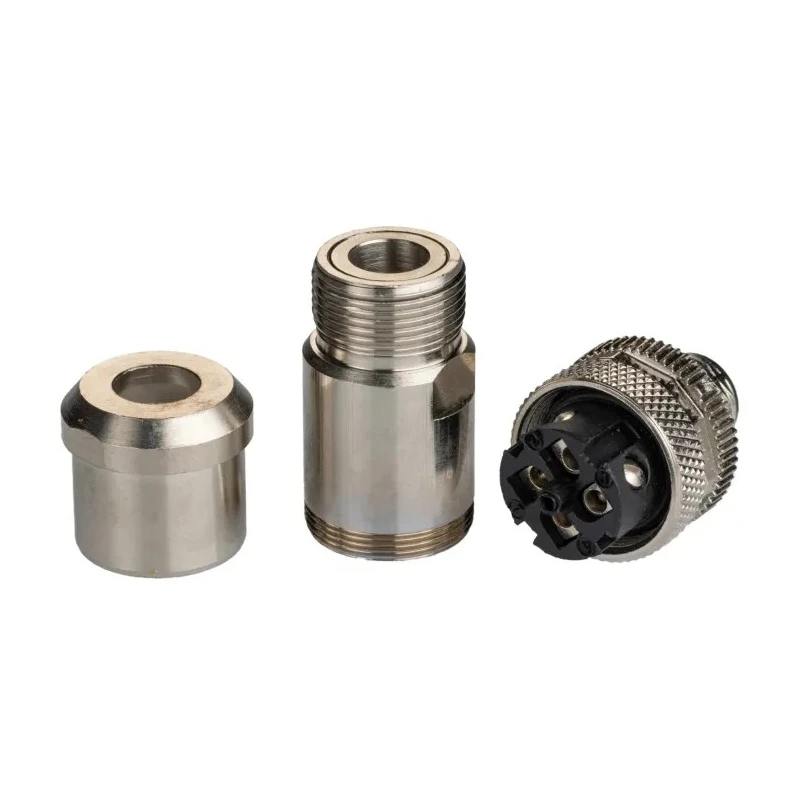

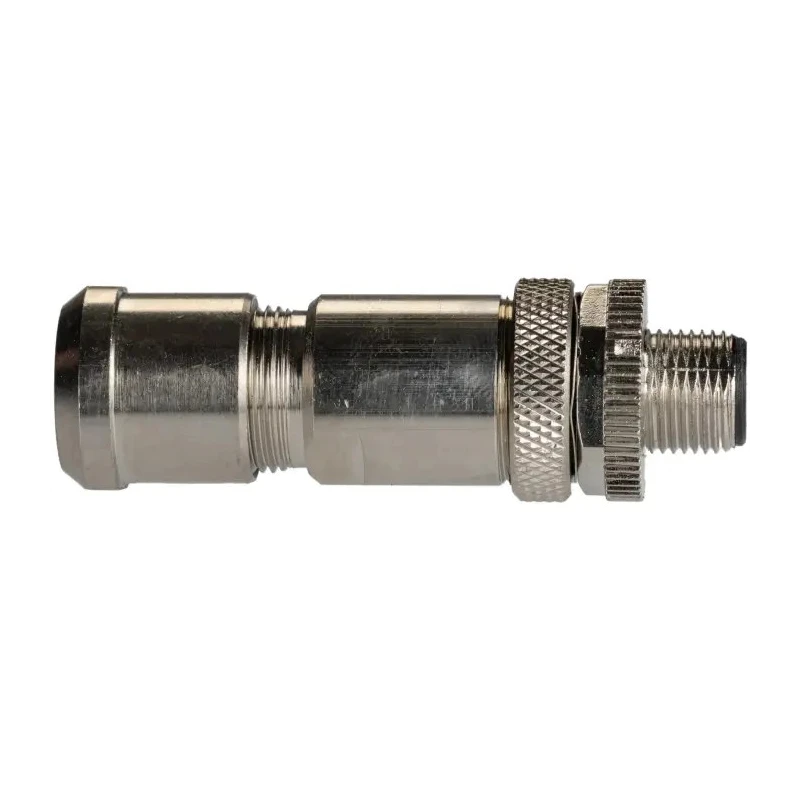

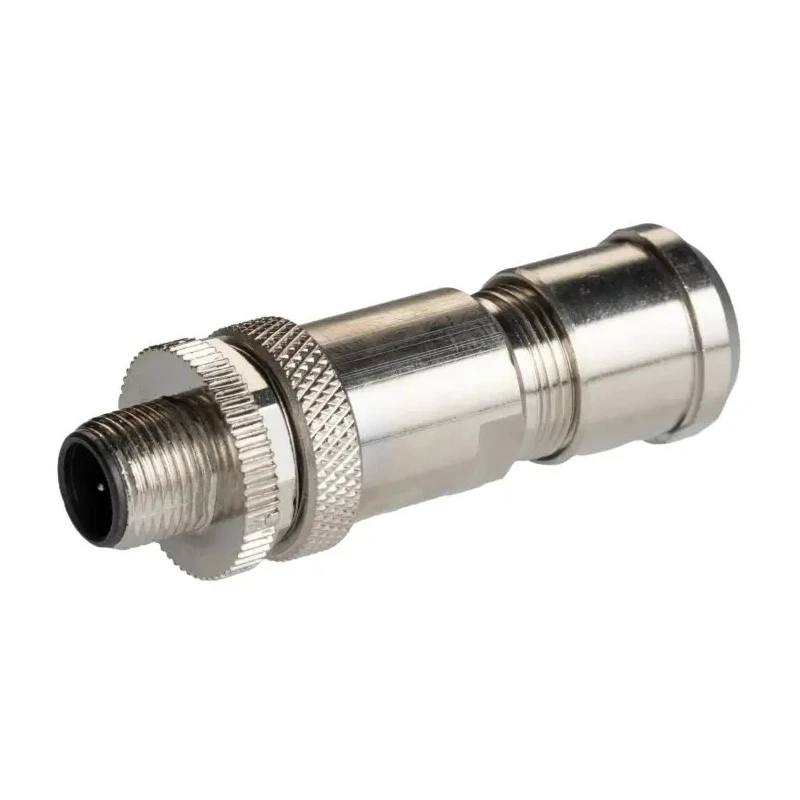

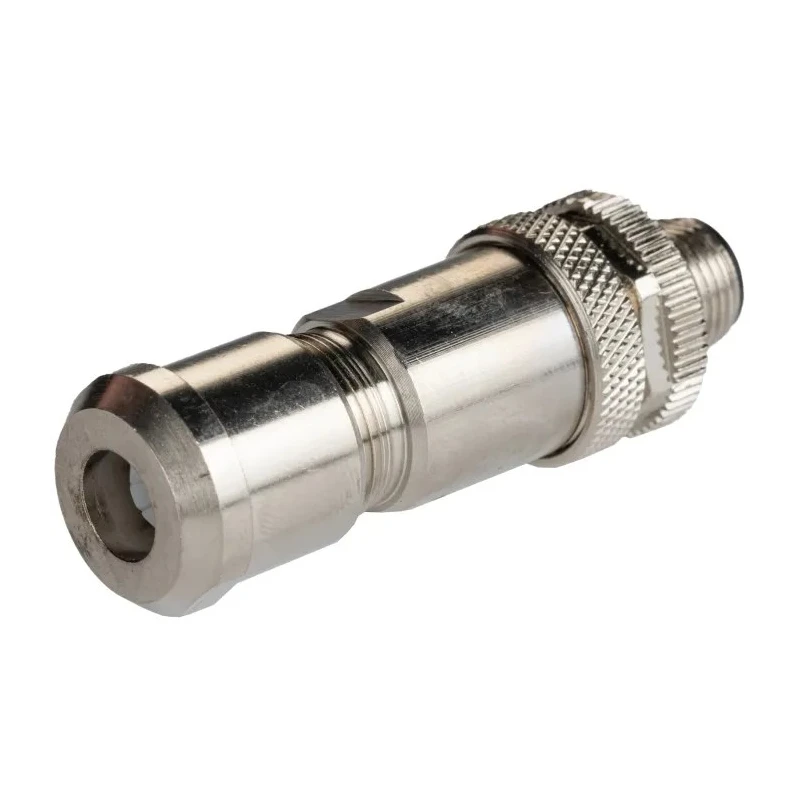

RS PRO Industrial Circular Connector 4 Contacts Cable M12 Plug Male IP67 Brass Housing CNM12 Series 208-0563
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250.0V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 4A |
| Model | 208-0563 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Brass |
| Contact Material | Copper Zinc Alloy |
| Series | CNM12 |
| Termination Type | Screw |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 4 |
| Contact Plating | Gold Flash |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shell Size | 21 mm |
| Mating Type | Screw Coupling |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Coding | A |
Key Features
- This connector features an M12 threaded interface with industry-standard A coding to prevent miss-mating.
- It has a brass nickel-plated coupling nut and a neoprene O-ring seal ensuring IP67 protection.
- The screw termination type enables quick and easy installation.
- Supports 4A current load and operates up to 250 V voltage rating.
- Designed for industrial sensing and automation applications requiring rugged and reliable connections.
- It withstands extreme temperatures from -25°C to 75°C for versatile environmental use.
- Contact materials are copper zinc alloy with gold flash plating for durability and conductivity.
- Suitable for use in manufacturing, robotics, process control, and factory automation sectors.
Product Description
RS PRO 208-0563 Industrial Circular Connector is a high-performance 4-contact M12 cable plug male connector designed for industrial applications requiring secure and durable electrical connections.
This connector features an M12 circular threaded interface with industry-standard A coding, which prevents miss-mating and provides a positive lock for reliable connections in harsh environments.
The IP67-rated connector includes a brass nickel-plated coupling nut and a neoprene O-ring seal, making it resistant to moisture, UV exposure, chemicals, and oils encountered in industrial settings.
It supports a current rating of 4A and a voltage rating of 250V, making it suitable for various sensing and automation use cases. The screw termination type allows for quick, user-friendly installation, saving valuable setup time in production environments.
Operating temperature ranges from -25°C to 75°C, enabling use in extreme temperature conditions. Contact components are made from copper zinc alloy with a gold flash plating, ensuring long-lasting electrical conductivity and resistance to corrosion.
Applications include instrumentation, process control, robotics, assembly lines, factory automation, and industrial production systems. This connector features an M12 threaded interface with industry-standard A coding to prevent miss-mating.
It has a brass nickel-plated coupling nut and a neoprene O-ring seal ensuring IP67 protection. The screw termination type enables quick and easy installation. Supports 4A current load and operates up to 250 V voltage rating.
Designed for industrial sensing and automation applications requiring rugged and reliable connections. It withstands extreme temperatures from -25°C to 75°C for versatile environmental use. Contact materials are copper zinc alloy with gold flash plating for durability and conductivity.
Suitable for use in manufacturing, robotics, process control, and factory automation sectors. Explore our extensive range of Industrial Circular Connectors and components at EnvMart for reliable and quality equipment solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage rating of 250V.
This model supports a current load of 4A.
It features a screw termination type for quick and easy installation.
The connector has an IP67 rating, ensuring protection against dust and water ingress.
The housing is made of brass, and the contact materials are copper zinc alloy with gold flash plating.
It can operate in temperatures ranging from -25°C to 75°C.
This connector features 4 contacts.
The connector size is M12.
It is designed for industrial sensing and automation applications, including manufacturing, robotics, and process control.
The shell size is 21 mm.
Yes, it features industry-standard A coding to prevent miss-mating.
The country of origin for this connector is India.
