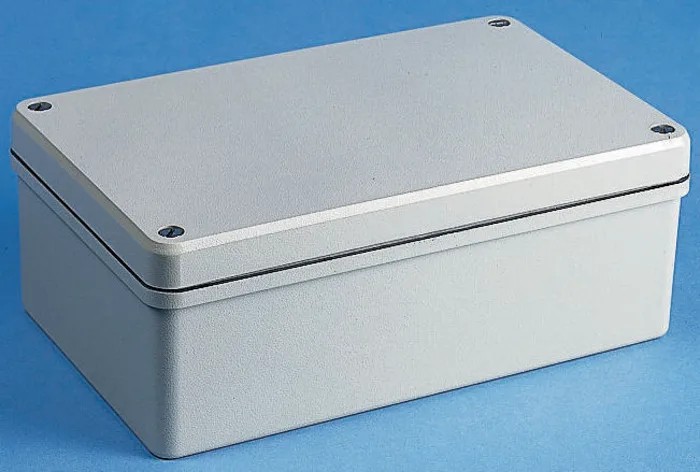

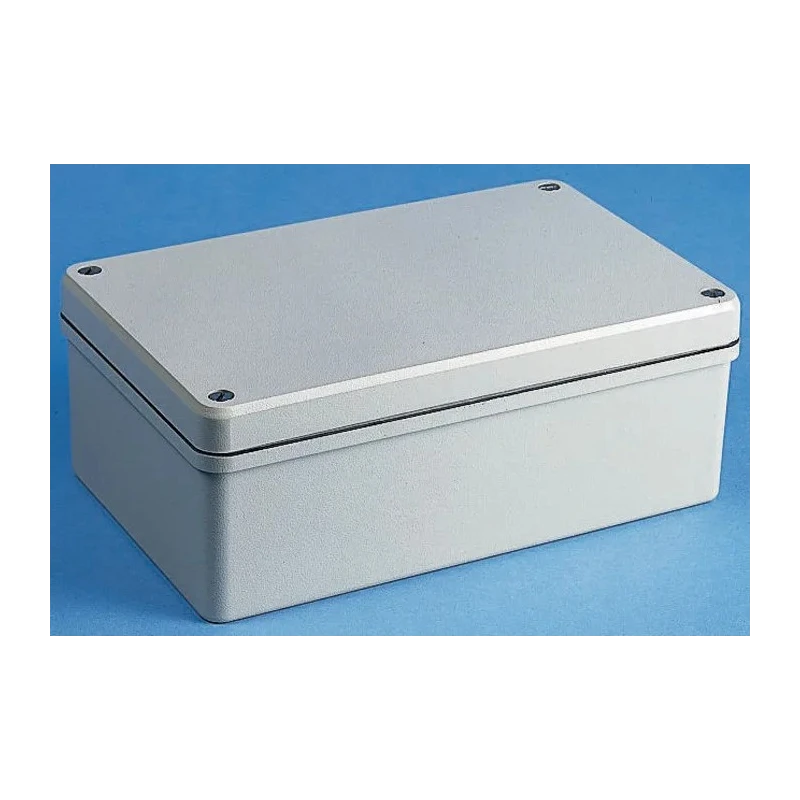

ROLEC Conform Series Shielded Die Cast Aluminium Enclosure, IP66 IP67, 60 mm x 125.5 mm x 225.5 mm IP66

ROLEC IP66 is a shielded die cast aluminium enclosure from the Conform Series designed to provide robust protection and electromagnetic interference shielding. It features a durable die cast aluminium body and grey lid, measuring 60 mm in height, 125.5 mm in width, and 225.5 mm in length. This enclosure complies with IP66 and IP67 standards ensuring excellent dust and water ingress protection for sensitive electrical and electronic components.

The enclosure’s baked enamel finish and overlapping tongue-and-groove design offer enhanced RFI screening performance. It is equipped with a neoprene sealing gasket that maintains the IP66 rating by protecting components from dust and weather conditions effectively.

Inside, threaded screw bosses allow secure mounting of a variety of circuit boards or internal equipment, making it highly versatile for multiple industrial uses such as test and measurement instrumentation, medical tools, transportation equipment, industrial controls, and lighting applications.

The enclosure is designed to operate reliably in ambient temperatures ranging from -40°C to +80°C. Its body and lid are colored grey (RAL7032) to meet aesthetic standards and blend with industrial environments.

This product comes with captive screws ensuring easy and secure lid attachments while maintaining the integrity of the seal. Manufactured in Germany, the enclosure guarantees high quality construction and compliance with industrial needs.

The enclosure body and lid are made of die cast aluminium for durability. Provides high-level RFI shielding using a baked enamel heavy-duty box design. Neoprene sealing gasket ensures dust and weather resistance compliant with IP66 standards.

Pre-cast lid and base feature a tooth system for continuous contact and secure fit. Threaded screw bosses inside support fitting various types of boards securely. Suitable for industrial and commercial applications including test instrumentation and medical tools.

Temperature resistance ranges from -40°C to +80°C for versatile use. Body and lid are grey colored (RAL7032) for standardized appearance. Comes complete with captive screws for mounting convenience.

For users requiring reliable and shielded enclosures in environments demanding IP66/IP67 protection, this ROLEC Conform Series enclosure offers an ideal solution. Browse through EnvMart’s broad category of Electrical Enclosures for more options suited to your industrial and commercial needs.
