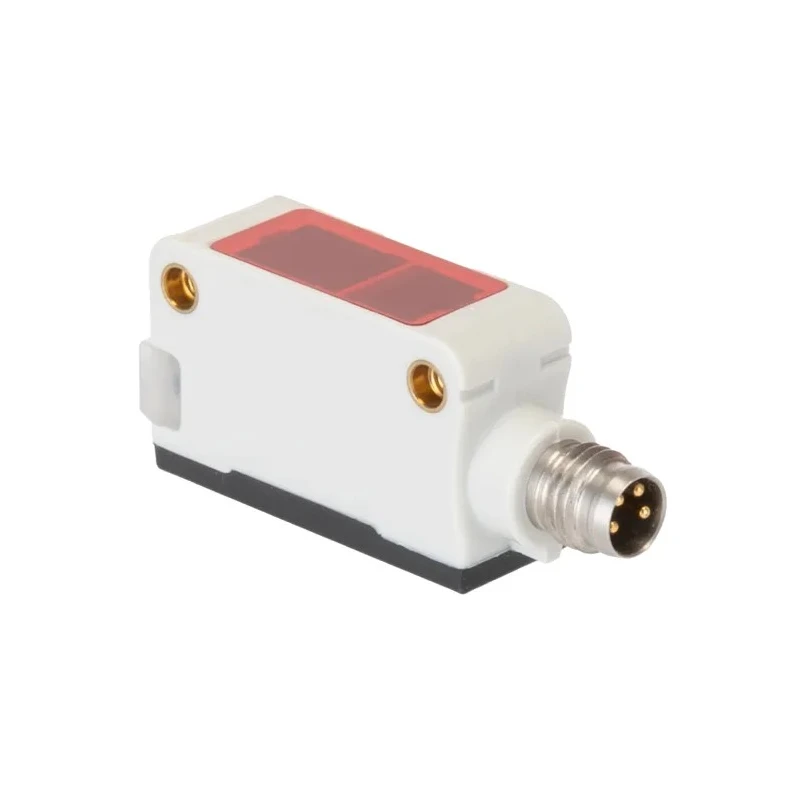

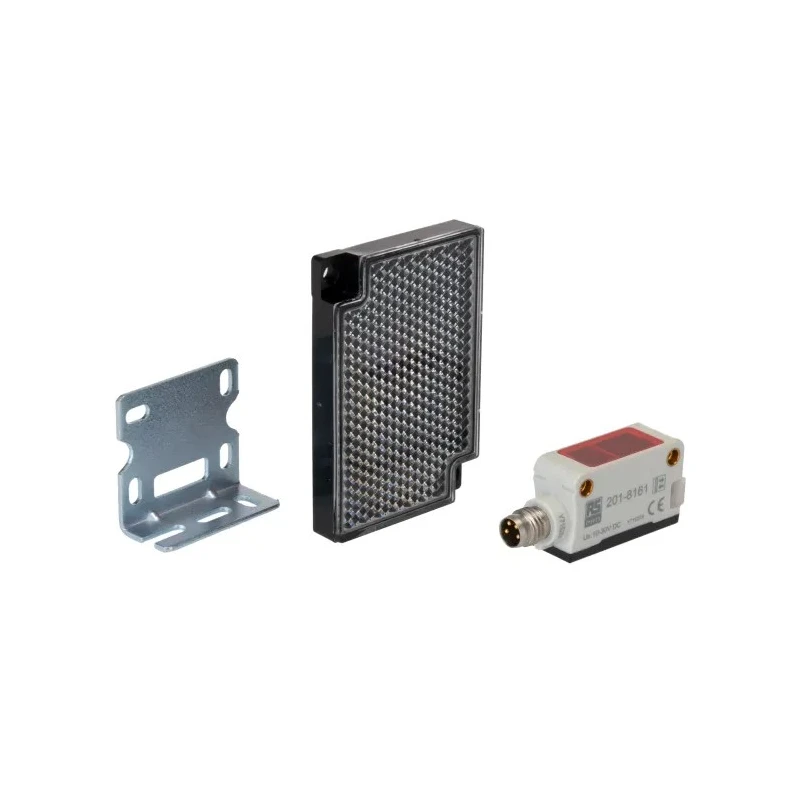

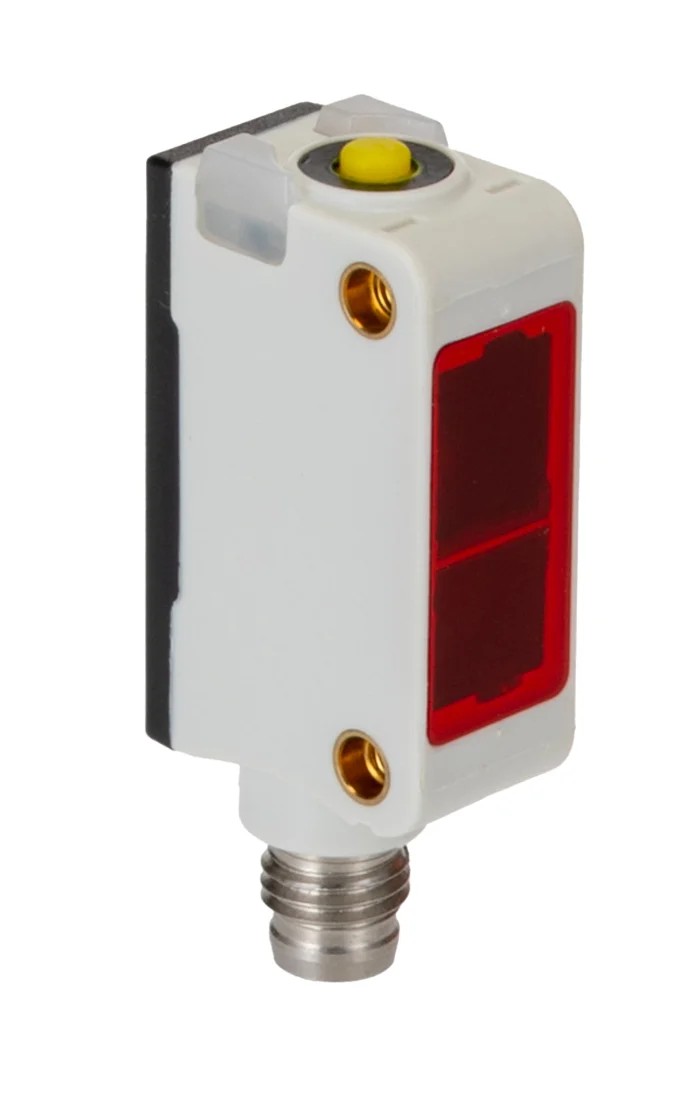

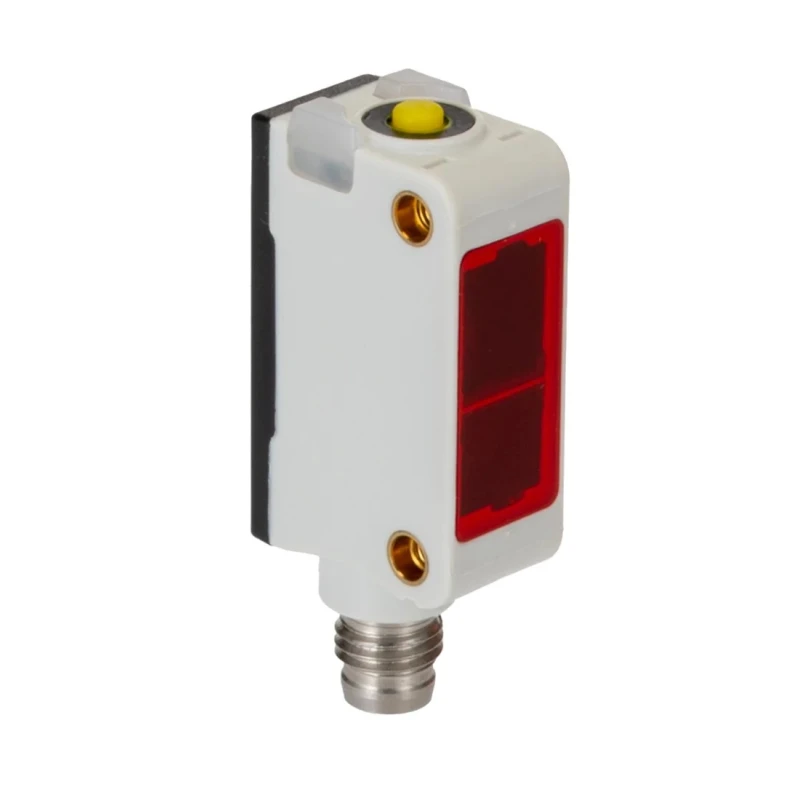

RS PRO Polarised Retro Reflection Photoelectric Sensor, Block Style, 3 m Detection Range, NPN NO/NC Output, IP Rating IP67
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 1ms |
| Light Source | Red Light |
| Detection range | 3 m |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Bracket, Screw |
| Housing Material | ABS, Polymethyl Methacrylate, Polycarbonate |
| Output type | NPN NO/NC |
| Series | PSE |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 200mA |
| DetectIon Type | Polarised Retro Reflection |
| Terminal type | M8 Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Sensor Style | Block |
Key Features
- The sensor is designed in a block style with an M8 connector terminal.
- It operates with a red light source to ensure reliable detection.
- Features an IP67 rating for protection against dust and moisture.
- Operates effectively across a temperature range of -25°C to 55°C.
- Offers a fast response time of 1 ms for precise detection.
- The housing is made from durable ABS, polymethyl methacrylate, and polycarbonate materials.

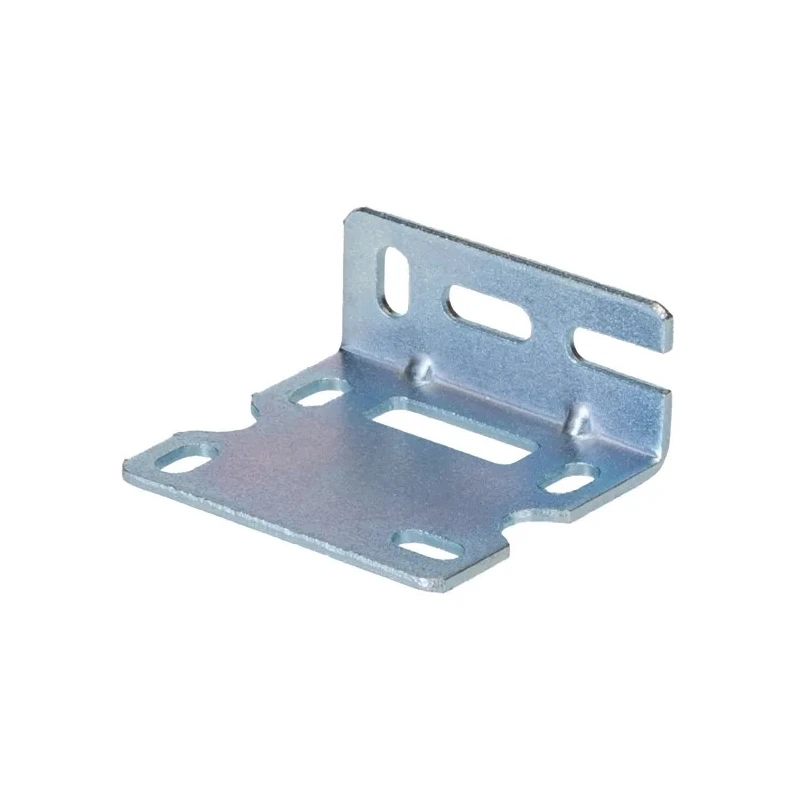

- Mounting options include bracket and screw for ease of installation.
- It can detect high light and some transparent objects reliably using polarized retro reflection technology.
Product Description
RS PRO IP67 Polarised Retro Reflection Photoelectric Sensor is a high-quality sensor designed for industrial automation needs. This block sensor utilizes polarized retro reflection principles to ensure accurate detection of objects, including those with high brightness and some transparent materials. The sensor's 3-meter detection range and switchable NPN NO/NC outputs provide flexibility and reliability in various environments.
Equipped with an M8 connector, this sensor supports easy wiring and installation, with mounting options through bracket and screw. The robust housing made of ABS, polymethyl methacrylate, and polycarbonate ensures durability and resilience against harsh industrial conditions.
Operating reliably between -25°C and 55°C, it also features an IP67 protection rating that safeguards against dust ingress and moisture, making it suitable for demanding environments. The fast 1 ms response time allows real-time object detection necessary for automated processes.
This photoelectric sensor is ideal for applications in automotive assembly lines, automated storage systems, machinery manufacturing, and access control through doors, gates, or elevators. Its anti-sunlight interference capability further enhances its performance in challenging lighting conditions.
The sensor features polarized reflection for enhanced precision and reliability. Detection range is 3 meters with a red light source for consistent sensing. IP67 rating provides dust and moisture resistance. Switchable NPN NO/NC output adapts to various control systems.
Robust ABS and polycarbonate housing offers industrial durability. Fast 1 ms response time supports high-speed detection needs. Wide operating temperature range from -25°C to 55°C. Mountable by bracket or screw for flexible installation.
Discover our category for Photoelectric Sensors to find similar high-performance industrial sensors designed to meet demanding automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor has a detection range of 3 meters, allowing it to accurately detect objects within this distance.
It features switchable NPN NO/NC outputs, providing flexibility for integration into various control systems.
The response time is 1 millisecond, enabling fast detection suitable for automated processes.
This model has an IP67 rating, which provides protection against dust and moisture ingress.
It operates effectively within a temperature range of -25°C to 55°C, making it suitable for various environments.
The housing is made from ABS, polymethyl methacrylate, and polycarbonate, ensuring durability in industrial settings.
It can be mounted using either a bracket or screw, providing flexibility in installation.
It operates with a red light source, which is essential for its polarized retro reflection detection technology.
The maximum current rating is 200 mA, allowing it to handle typical loads in industrial applications.
This sensor is CE certified, indicating compliance with EU safety and health requirements.
It features an M8 connector terminal, which simplifies wiring and installation processes.
It employs polarized retro reflection technology, enabling reliable detection of high brightness and some transparent objects.
