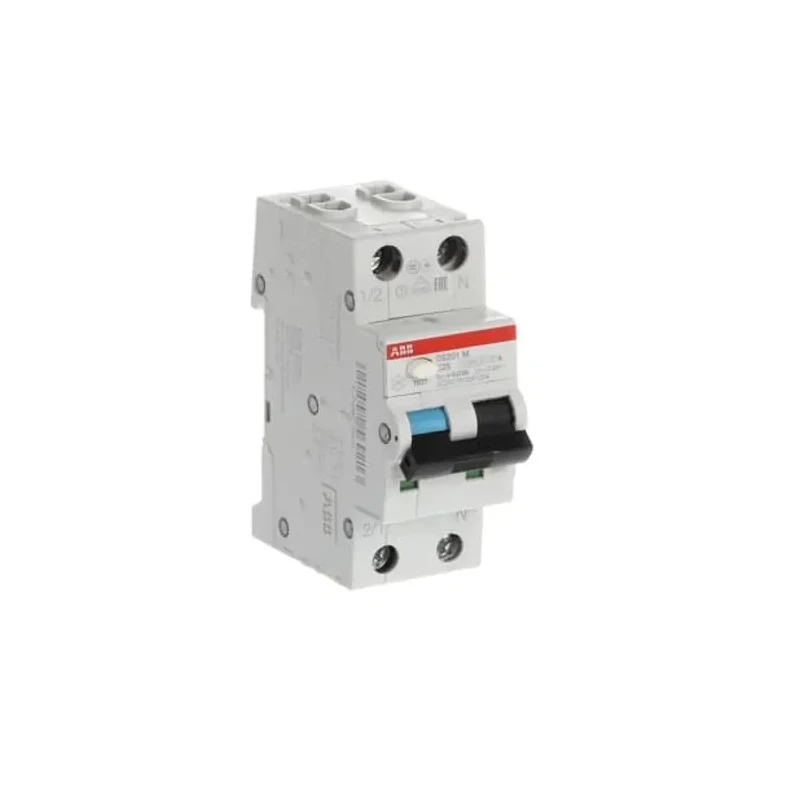

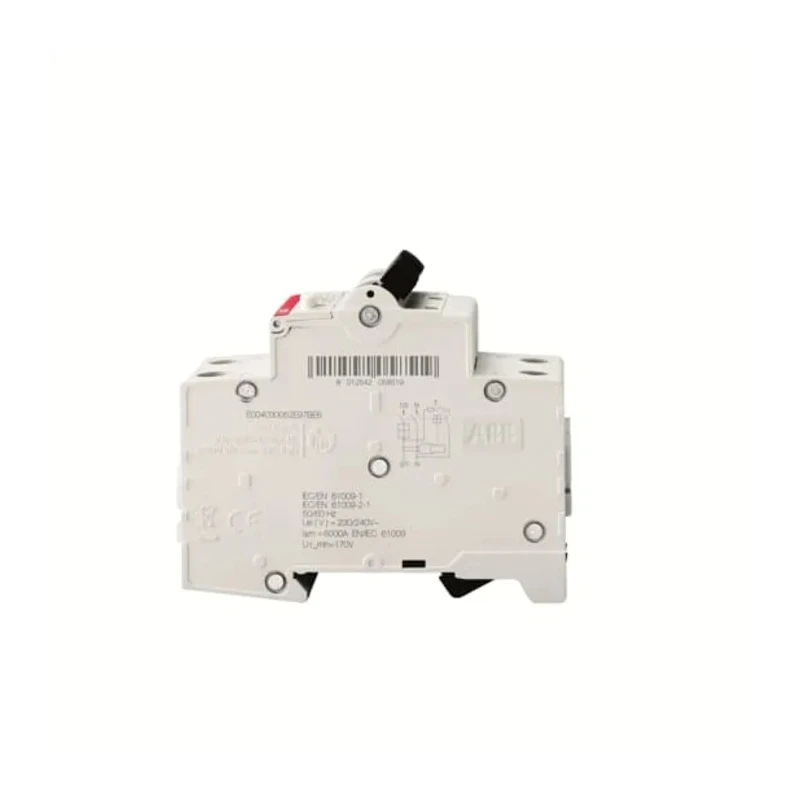

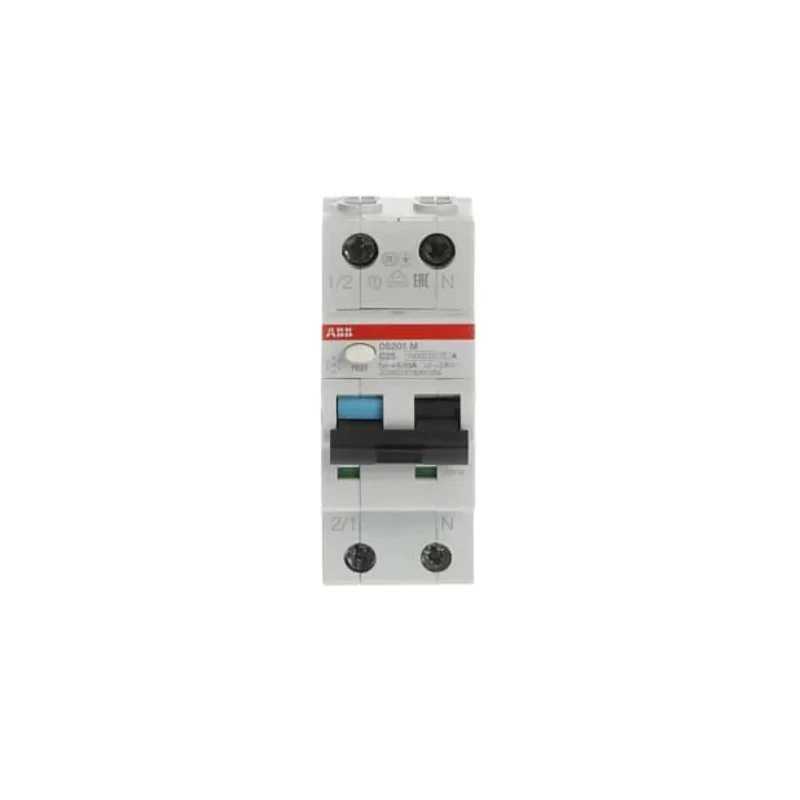

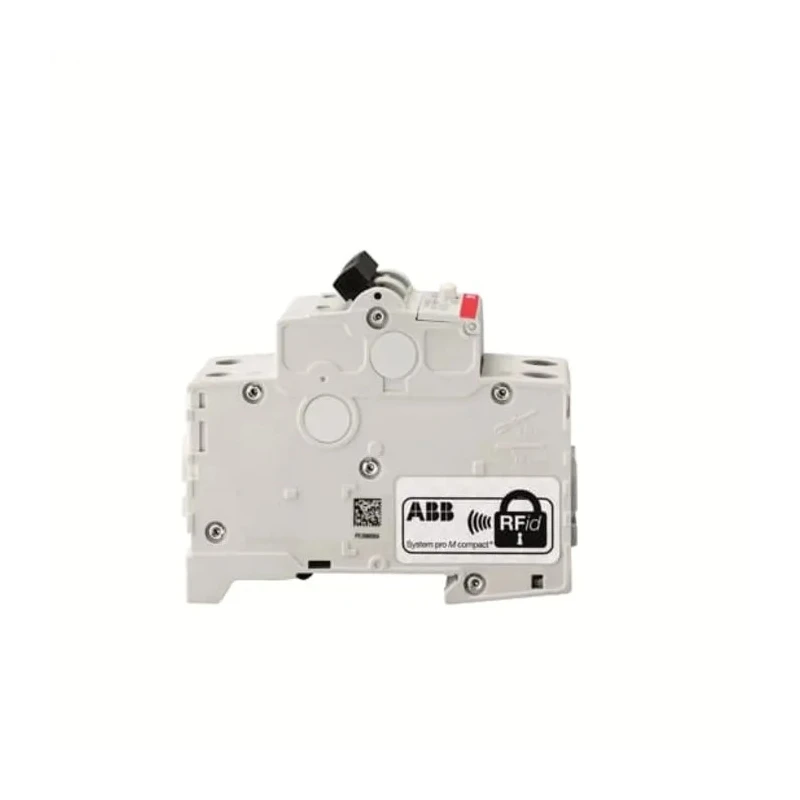

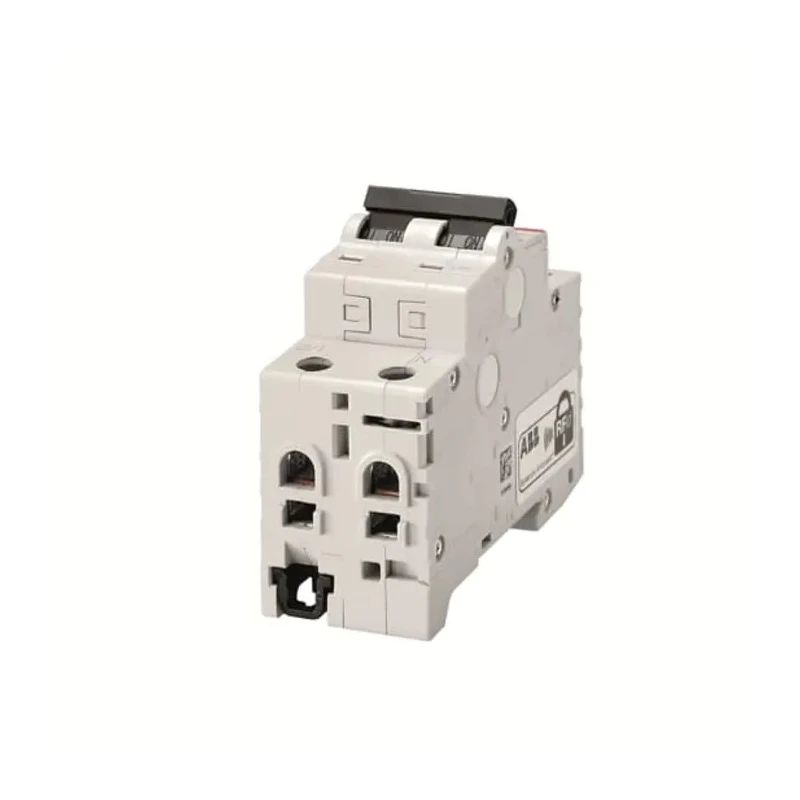

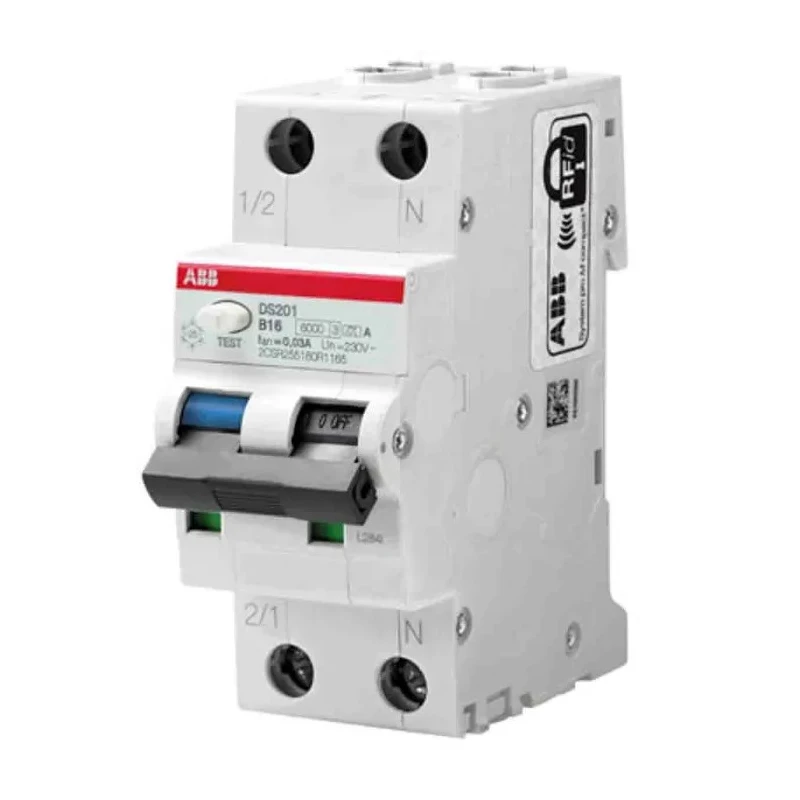

ABB Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 2-Pole 2CSR275180R1165 DS201 M B16 A30

ABB 2CSR275180R1165 DS201 M B16 A30 Residual Current Circuit Breaker (RCBO) with Overload Protection is engineered to safeguard single-phase electrical systems by instantly interrupting power supply in cases of overloads, short circuits, and earth faults. This 2-pole device integrates precise 30mA trip sensitivity of Type B tripping characteristics, suitable for detecting a wide range of earth leakage currents.

The device supports a rated current of 16A and a rated voltage of 240V AC, combined with a breaking capacity of 10kA, making it suitable for heavy-duty industrial and commercial electrical distribution. The compact form factor, measuring 85mm in height, 69mm in width, and 69mm in depth, allows easy installation on DIN rails in crowded distribution boards while maintaining a protective IP40 plastic housing.

Equipped with thermal magnetic tripping mechanism and bi-directional cylinder-lift screw terminals compatible with various cable types, the RCBO ensures secure and reliable electrical connections. Its operational range covers a wide temperature spectrum from -25°C to +55°C, and it endures mechanical operations up to 20,000 cycles for sustained reliability in demanding environments.

The blue flag status indicator aids prompt identification of earth fault issues, enhancing maintenance efficiency. This RCBO is ideal for use in industrial pumps, automated manufacturing processes, electrical networks, and sensitive environments like computer rooms.

Features 2 poles and Type B tripping characteristics for accurate fault detection. Supports DIN rail mounting with robust thermal magnetic tripping mechanism. Equipped with screw terminals for secure electrical connections.

Compact dimensions of 85mm height, 69mm width, and 69mm depth save panel space. Designed for rated voltage of 240V AC and breaking capacity of 10kA for heavy-duty use. Wide operating temperature range from -25°C to +55°C ensures performance in demanding environments.

Mechanical endurance tested for 20,000 cycles ensuring long-term reliability. Includes blue flag indicator for easy earth leakage fault identification. Suitable for industrial electrical networks, automated manufacturing, and computer rooms.

Complies with CCC, CSA, and UL standards for safety and quality assurance.

For trustworthy circuit protection in industrial, commercial, and residential electrical applications, choose ABB Residual Current Circuit Breakers from the DS201 series. Explore the full range of electrical protection solutions available at EnvMart.
