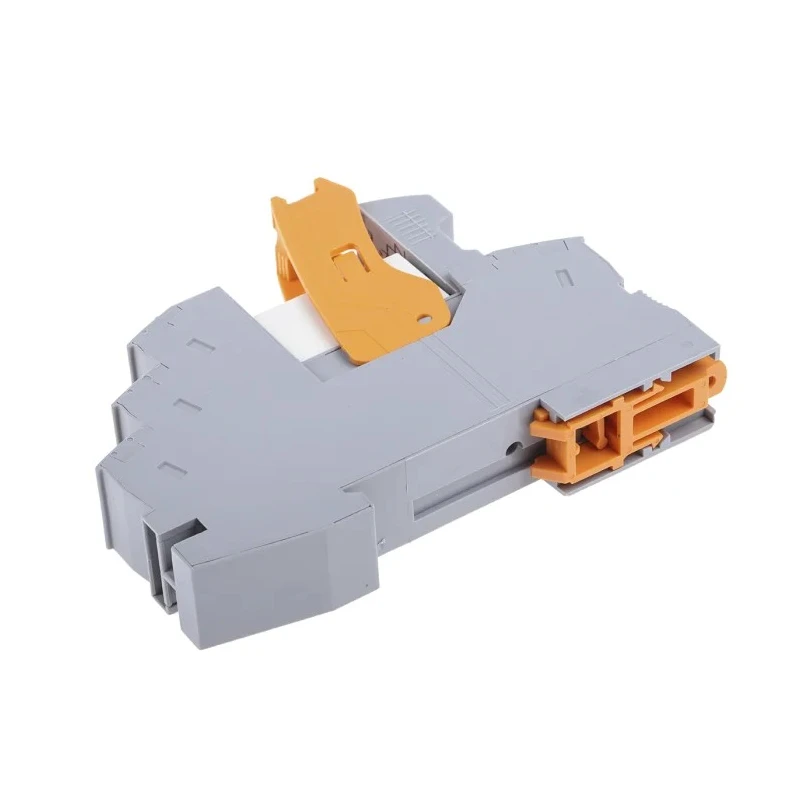

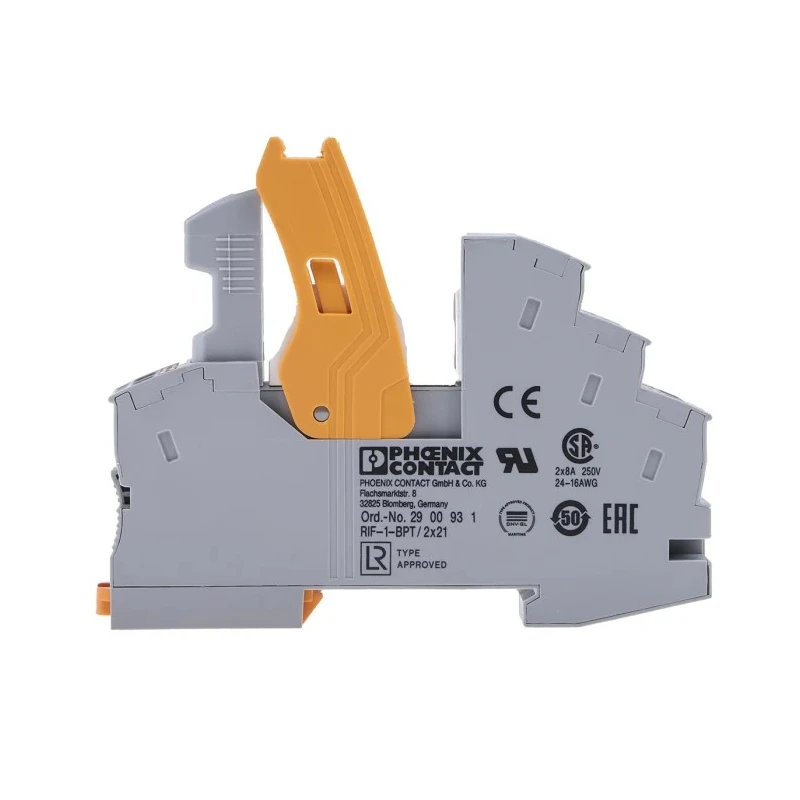

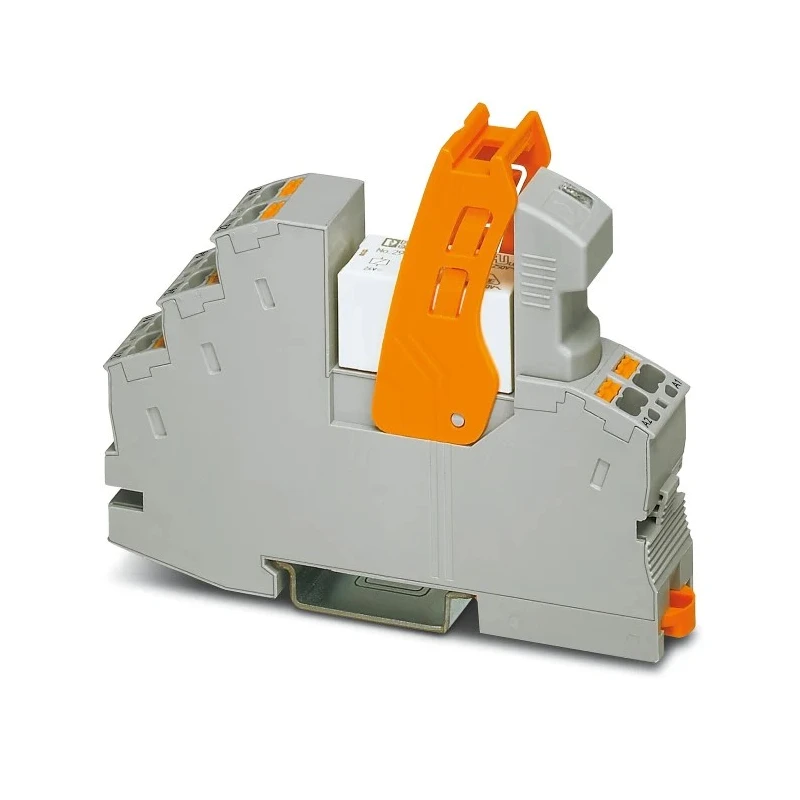

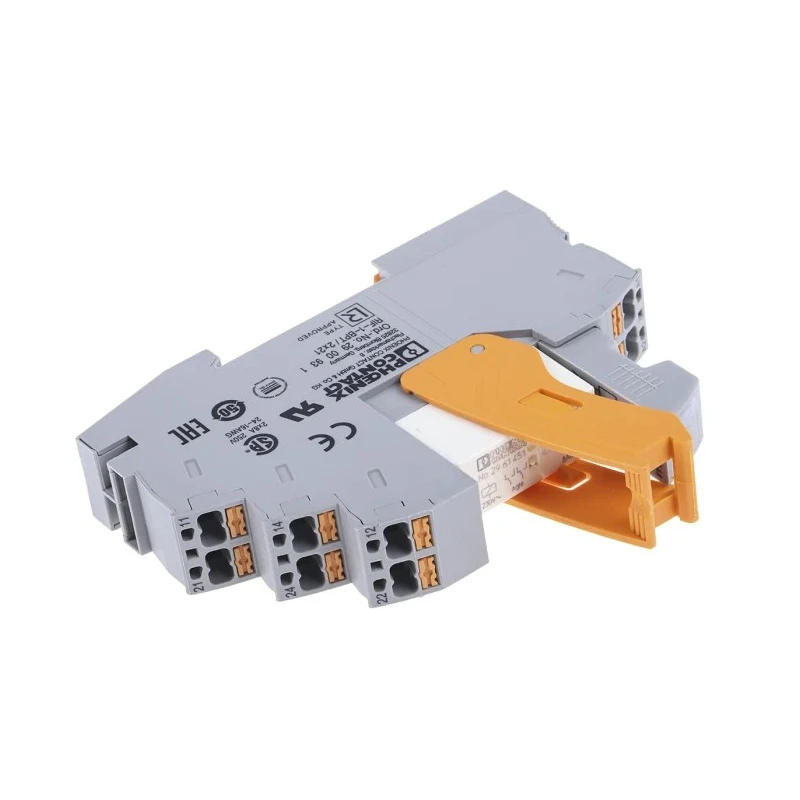

Phoenix Contact Power Relay, DIN Rail Mount, DPDT, 8A Switching Current, 230V AC Coil 2903331
Specifications
| Country of Origin | China |
|---|---|
| Brand | Phoenix Contact |
| Height | 93mm |
| Length | 16mm |
| Model | 2903331 |
| Width | 75mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | RIF-1-RPT-LV-230AC/2X21 |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Plug-In |
| Standards/Approvals | DIN, IEC |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 192W |
| Switching Power | 192W |
Key Features
- Equipped with an 8A switching current for robust performance.
- Compact design with dimensions 93mm (H) x 16mm (L) x 75mm (W) fitting tight installation spaces.
- Plug-in terminal type enables quick and secure connections.
- Operates safely in a temperature range from -40°C to +50°C.
- Built-in varistor protects against voltage surges, enhancing reliability.
- IP20 rating provides protection against solid objects larger than 12mm.
- Silver alloy contact material ensures superior conductivity and durability.
- Designed for sophisticated industrial applications and compact DIN rail mounting.
Product Description
Phoenix Contact 2903331 Power Relay is a high-quality DPDT relay optimized for industrial, electrical, and automation systems. Its 230V AC coil operates efficiently within a broad temperature range from -40°C to +50°C, making it suitable for harsh environments. The relay combines a relay base, plug-in display suppressor module, and retainer bracket allowing immediate deployment in complex control applications.
This relay features an 8A switching current capacity and supports switching voltages up to 250V AC/DC, ideal for demanding power relay tasks in engineering workshops, manufacturing production lines, and electrical distribution hubs. Its compact size (93 x 16 x 75 mm) and DIN rail mounting facilitate space-saving installation and rapid setup.
The use of silver alloy contacts ensures reliable conductivity and resistance to wear over extended use. Safety features include an IP20 protection rating shielding against solid objects larger than 12mm and a built-in varistor module to prevent damage from voltage spikes.
Durability is guaranteed with a mechanical life expectancy of 10 million cycles, reducing maintenance needs and downtime in industrial operations. Push-in terminals simplify wiring and connection, improving installation efficiency.
High switching current of 8A for complex circuit control. Compact DIN rail mount for easy integration. Wide operating temperature range for harsh conditions. Built-in surge protection varistor for durability. Long mechanical life for reliable industrial use.
Silver alloy contacts for enhanced electrical performance. Plug-in terminal type for fast installation. IP20 touch-proof safety rating. Supports switching voltage up to 250V AC/DC. Ideal for automation, electrical, and industrial systems.
Choose Phoenix Contact for dependable DIN rail power relays designed for rigorous industrial applications, ensuring safety, durability, and performance. Explore similar products in the Power Relays category on EnvMart to complete your automation system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current capacity of 8A, making it suitable for complex circuit control applications.
The coil voltage for this relay is 230V AC, which is necessary for its operation in industrial applications.
The dimensions of this relay are 93mm in height, 16mm in length, and 75mm in width, allowing for compact installation.
This relay is designed for DIN rail mounting, facilitating easy integration into existing systems.
It operates safely within a temperature range of -40°C to +50°C, making it suitable for harsh environments.
The contact configuration of this model is DPDT (Double Pole Double Throw), allowing for versatile switching applications.
The contacts of this relay are made from silver alloy, which ensures superior conductivity and durability.
This power relay has an IP20 protection rating, which shields it against solid objects larger than 12mm.
It includes a built-in varistor that protects against voltage surges, enhancing the relay's reliability in operation.
The mechanical life expectancy of this relay is 10 million cycles, reducing maintenance needs and downtime in industrial operations.
This model complies with DIN and IEC standards, ensuring it meets industry requirements for safety and performance.
It features plug-in terminals, which enable quick and secure connections for efficient installation.
