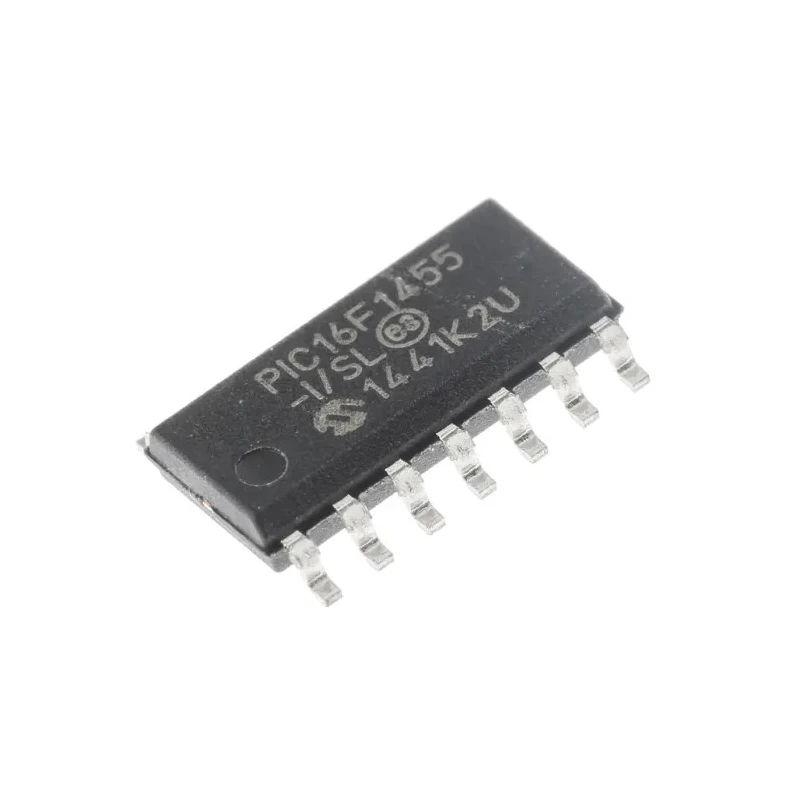

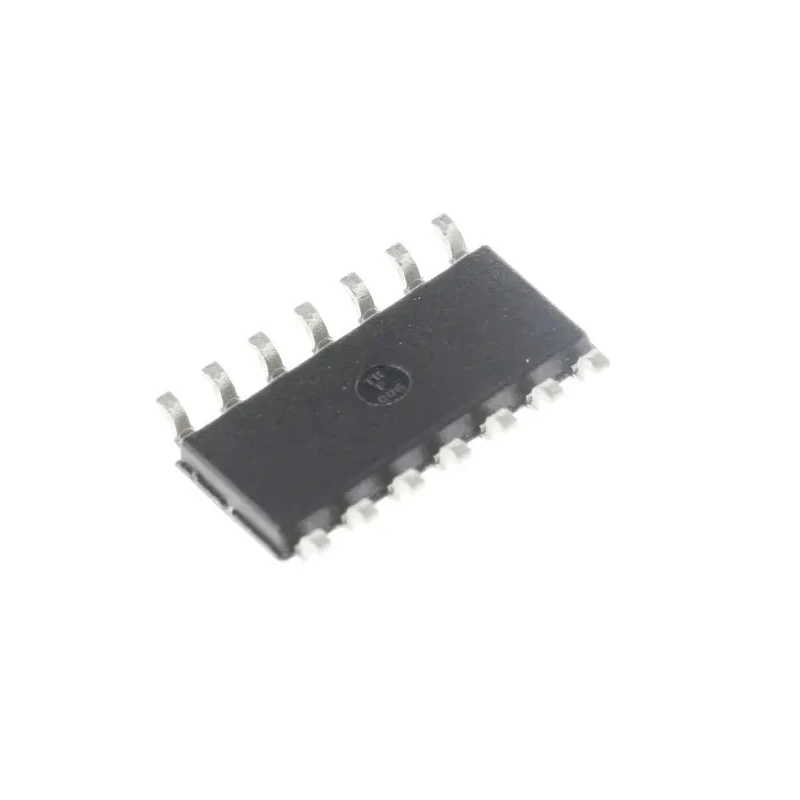

Microchip 8-bit PIC Microcontroller 14kB FLASH, 48 MHz, 14-Pin SOIC PIC16F1455
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.65mm |
| Model | PIC16F1455 |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC16F1455 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Technology |
| Ram size | 1kB |
| Interface Type | EUSART, SPI, USB |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 48MHz |
| Number of Programmable I/Os | 16 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Enhanced mid-range PIC architecture with 49 instructions.
- 14-Pin SOIC surface-mount package for compact design.
- Supports interfaces including EUSART, SPI, and USB.
- Onboard 1kB RAM and up to 16 programmable I/O pins.
- Operates from 1.8V minimum to 5.5V maximum supply voltage.
- Includes 5x10 bit ADC channels and 1x 5-bit DAC channel.
- Temperature range from -40°C to 85°C suitable for industrial uses.
- Maximum power dissipation of 800mW with low-power technology.
Product Description
Microchip PIC16F1455 is an 8-bit microcontroller based on Microchip's enhanced mid-range PIC core, designed for flexible embedded systems requiring efficient control and connectivity.
This MCU runs up to 48 MHz, featuring 14 Kbytes of flash program memory and 1 Kbyte of RAM. Packaged in a compact 14-pin SOIC surface-mount form factor, it offers 16 programmable I/O pins and a rich suite of peripherals.
It supports multiple communication interfaces such as EUSART, SPI, and USB, enabling robust data transfer options for diverse applications in industrial automation, consumer electronics, and embedded computing.
The device integrates 5 channels of 10-bit analog-to-digital converters (ADC) and a 5-bit digital-to-analog converter (DAC), enhancing sensor interfacing and control capabilities. Further, two analog comparators and voltage reference features support precision analog operations.
Operating voltage ranges from 1.8V to 5.5V, accommodating varying power supply environments. The microcontroller has a wide operating temperature range of -40°C to 85°C, making it suitable for harsh industrial environments.
Enhanced mid-range core with 49 instruction set and 16-level hardware stack. Onboard USB technology for flexible connectivity solutions. Extreme Low-Power (XLP) technology reduces power consumption in battery-powered devices.
In-circuit serial programming (ICSP) support facilitates efficient development. Includes two 8-bit timers, one 16-bit timer, and two 10-bit PWM modules for complex timing and control applications.
This microcontroller is ideal for use in industrial, commercial, consumer electronics, and laboratory embedded systems that require a balance of performance, power efficiency, and flexible peripheral sets.
Explore more Microchip Microcontrollers and semiconductor solutions on EnvMart for your next development project or production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 48 MHz.
It features a program memory size of 14 kB.
This microcontroller supports EUSART, SPI, and USB interfaces.
It operates within a voltage range of 1.8V to 5.5V.
The PIC16F1455 has 16 programmable I/O pins.
This model operates within a temperature range of -40°C to 85°C.
It includes 1 kB of RAM.
The PIC16F1455 integrates 5 channels of 10-bit ADC.
It is packaged in a 14-pin SOIC surface-mount form factor.
The maximum power dissipation is 800 mW.
This microcontroller features 2 analog comparators.
The country of origin for this microcontroller is India.
