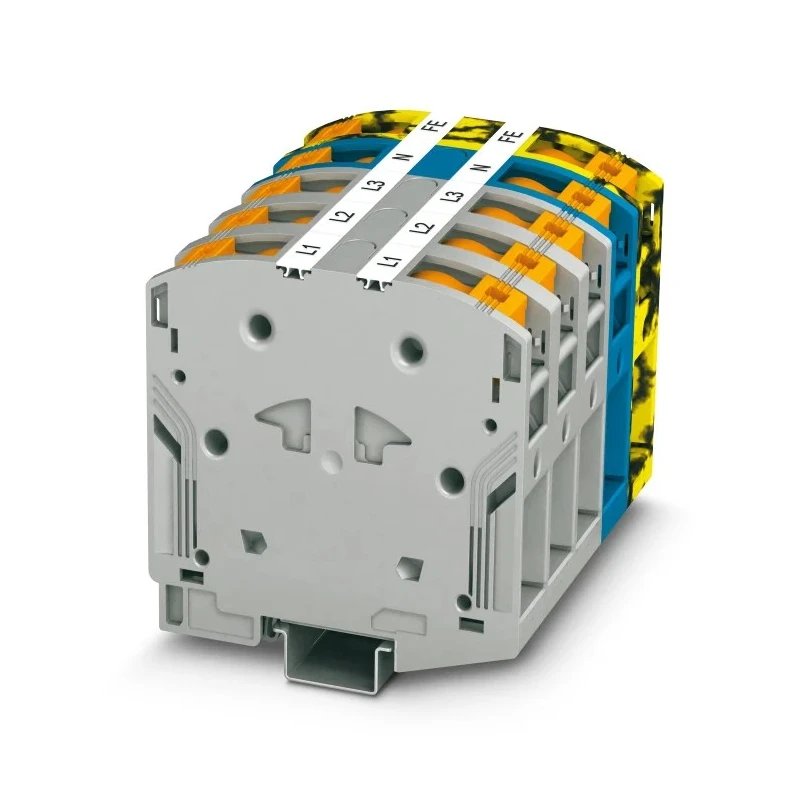

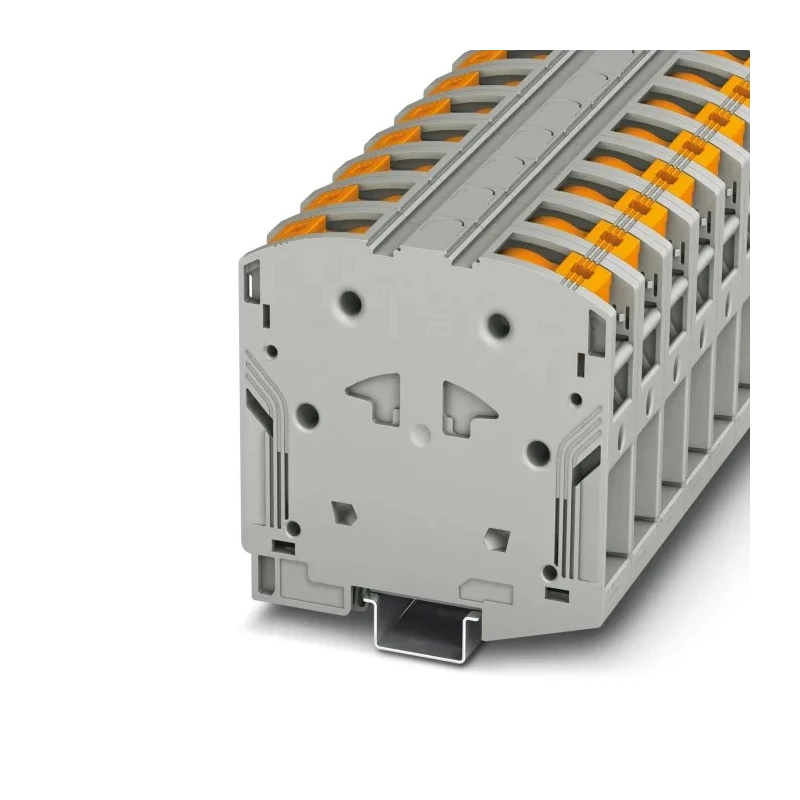

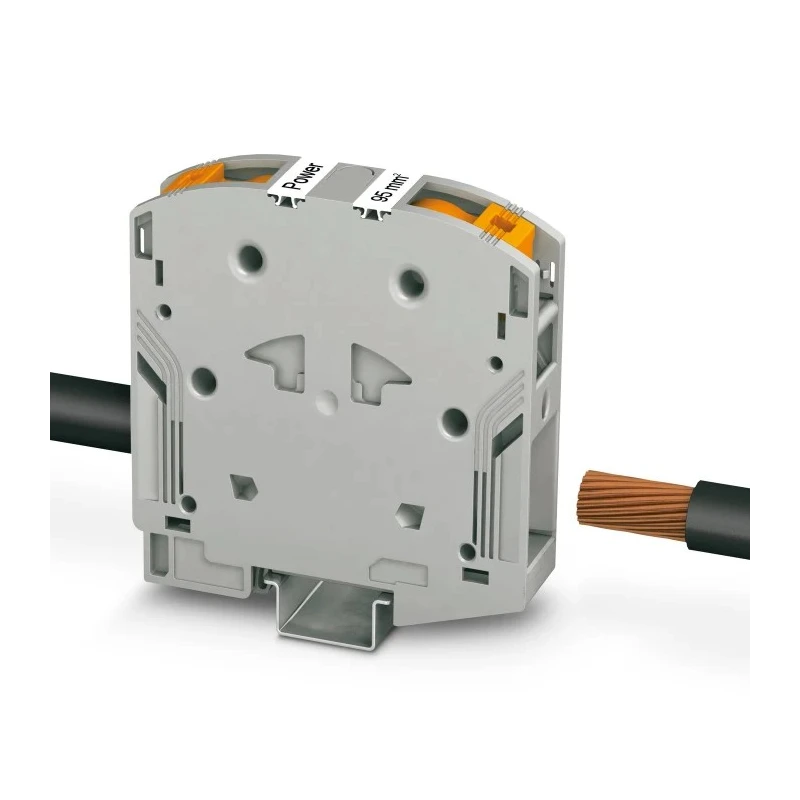

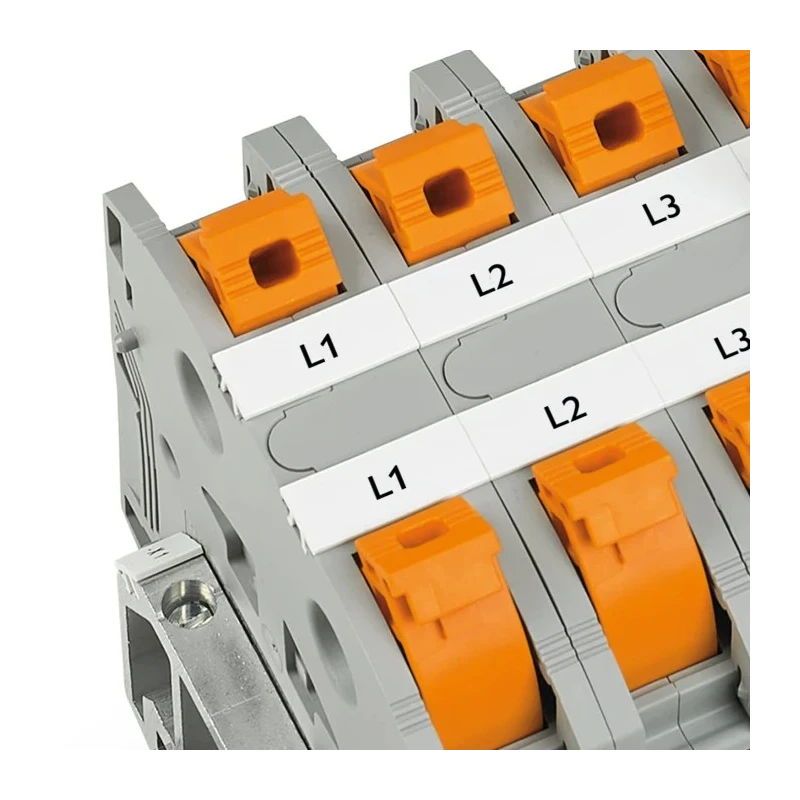

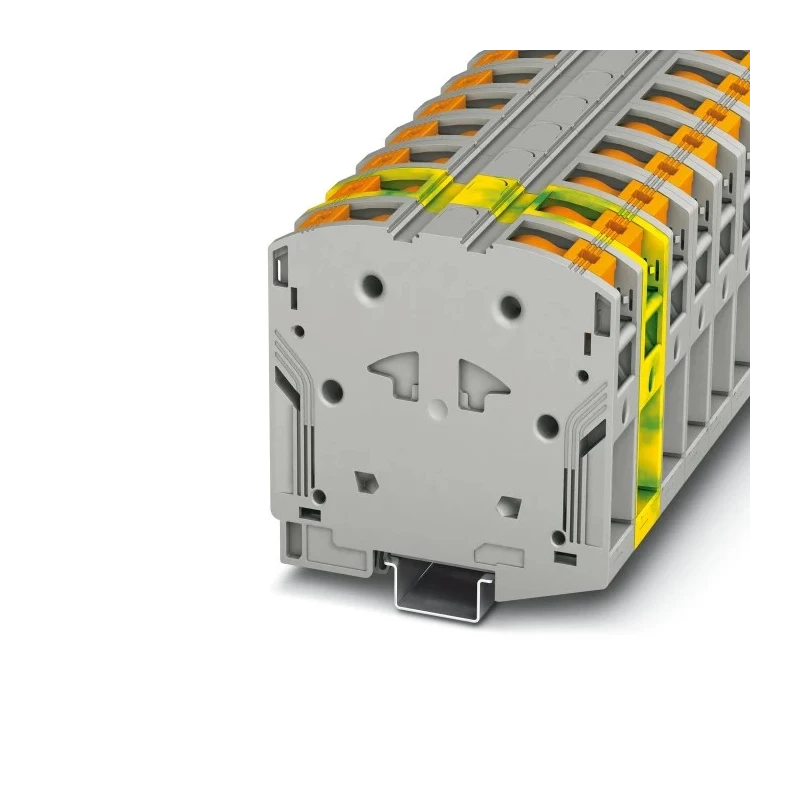

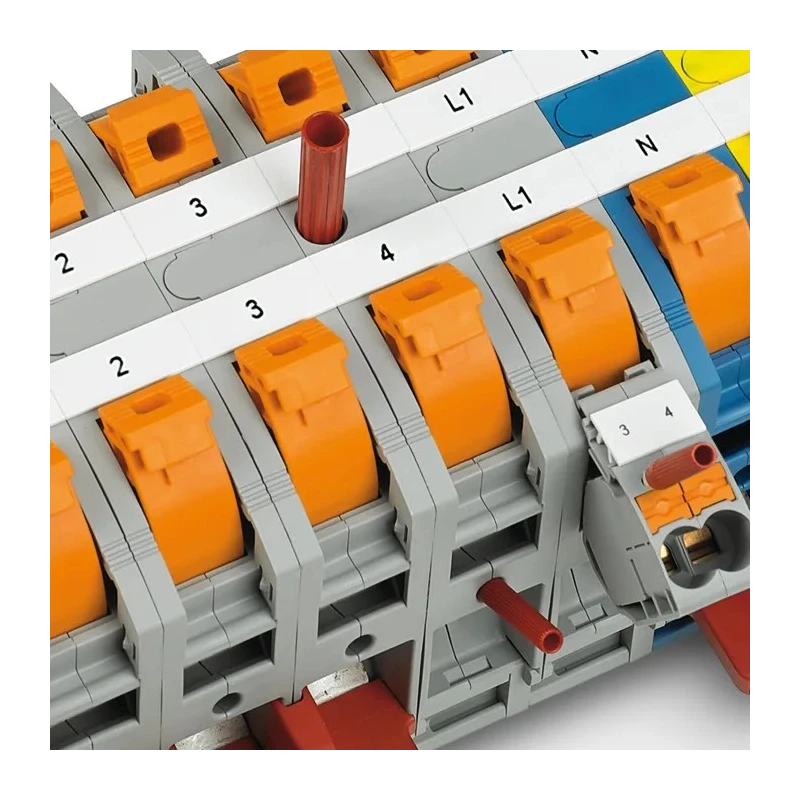

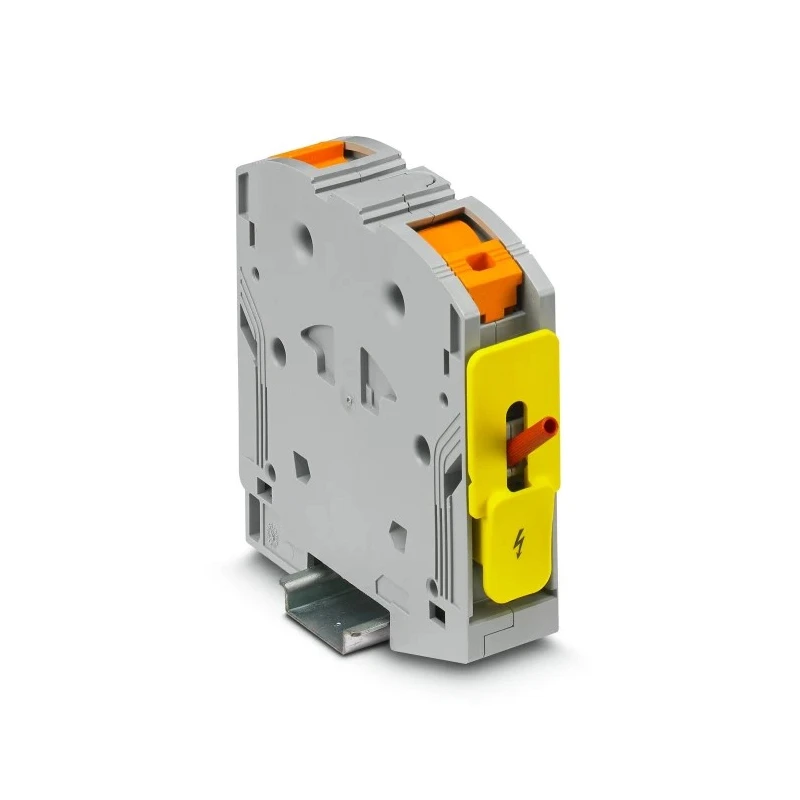

Phoenix Contact DIN Rail Terminal Block PTPOWER 95 Series 95mm² 1-Level Screw Terminal 1.5kV 232A IECEx/ATEX 3260100
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 1.5kV |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3260100 |
| Series | PTPOWER 95 |
| Termination Type | Screw |
| Maximum Operating Temperature | 110°C |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Sub Type | High Current |
| Minimum Operating Temperature | -60°C |
| Pitch | 25mm |
| Hazardous Area Certification | IECEx/ATEX |
| Standards/Approvals | CCC, CSA, EAC, UL |
| Minimum Wire Size AWG | 4AWG |
| Maximum Wire Size AWG | 3AWG |
| Cable CSA | 95mm² |
| Terminal Block Current | 232A |
Key Features
- Designed for one-level, screw-type terminations for secure wire connections.
- Suitable for conductors with wire sizes from AWG4 to AWG3, providing versatile cable compatibility.
- Operates reliably in a temperature range from -60°C up to 110°C to suit harsh environments.
- Certified for hazardous locations with IECEx/ATEX approvals ensuring safety and compliance.
- Constructed with durable grey PA housing that withstands industrial rigours and flame rated UL94 V-0.
- Features pitch spacing of 25mm and can accommodate 3 positions per block.
- Ideal for plant engineering, machine building, and other industrial applications requiring robust power connectors.
- Low power dissipation of 7.54W promotes energy efficiency and system productivity.
Product Description
Phoenix Contact 3260100 DIN Rail Terminal Block PTPOWER 95 Series is engineered for high current-conducting industrial circuits. The 1-level, screw-type terminal supports conductors from 25 to 95mm² cross section with a maximum current rating of 232A, making it suitable for demanding power distribution tasks.
The terminal block is rated for voltages up to 1.5kV, with an impressive surge voltage capability of 8kV, ensuring protection against heavy power spikes commonly encountered in plant engineering and machine building environments. It features IECEx/ATEX hazardous area certification, allowing it to be safely deployed in explosion-risk industrial zones.
Operating reliably across a wide temperature range of -60°C to 110°C, the product's robust grey polyamide housing offers excellent mechanical strength and UL94 V-0 flame retardancy, protecting installations in harsh and safety-critical settings.
This terminal block has three positions with a 25mm pitch, providing versatile wiring options for complex electrical assemblies. The screw termination ensures secure and reliable conductor connection, while the low power dissipation of 7.54W improves system efficiency.
Typical applications include industrial automation, power distribution, control cabinets, and energy management systems. The precision and durability of the PTPOWER 95 series guarantee long-term performance in challenging mechanical and electrical environments.
Designed for high current with 232A rating and 95mm² cable cross section. IECEx/ATEX certified for hazardous areas, meeting international safety standards. Wide operating temperature range from -60°C to 110°C for extreme conditions.
Durable grey PA housing with UL94 V-0 flame rating ensures fire safety. Surge voltage protection up to 8kV protects against transient voltage spikes. Screw type termination for secure and easy wiring connections. Compact design with 3 positions and 25mm pitch for flexible installation.
Energy efficient with low power dissipation of 7.54W during operation. Explore more DIN Rail Terminal Blocks and industrial electrical components at EnvMart for your equipment and installation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this terminal block is 232A, making it suitable for high current applications.
This model has a voltage rating of 1.5kV, ensuring it can handle high voltage applications safely.
It operates reliably in a temperature range from -60°C to 110°C, suitable for harsh environments.
This unit features three positions with a pitch spacing of 25mm, allowing for flexible wiring options.
It uses a screw-type termination for secure and reliable conductor connections.
It supports conductors with wire sizes from AWG4 to AWG3, accommodating various cable types.
It is certified for hazardous areas with IECEx and ATEX approvals, ensuring compliance with safety standards in explosive environments.
The terminal block is constructed with durable grey polyamide housing that offers excellent mechanical strength and flame retardancy.
It has a low power dissipation rating of 7.54W, which promotes energy efficiency during operation.
Typical applications include industrial automation, power distribution, control cabinets, and energy management systems.
The country of origin for this terminal block is Poland.
This model meets several standards including CCC, CSA, EAC, and UL, ensuring it adheres to international safety requirements.
