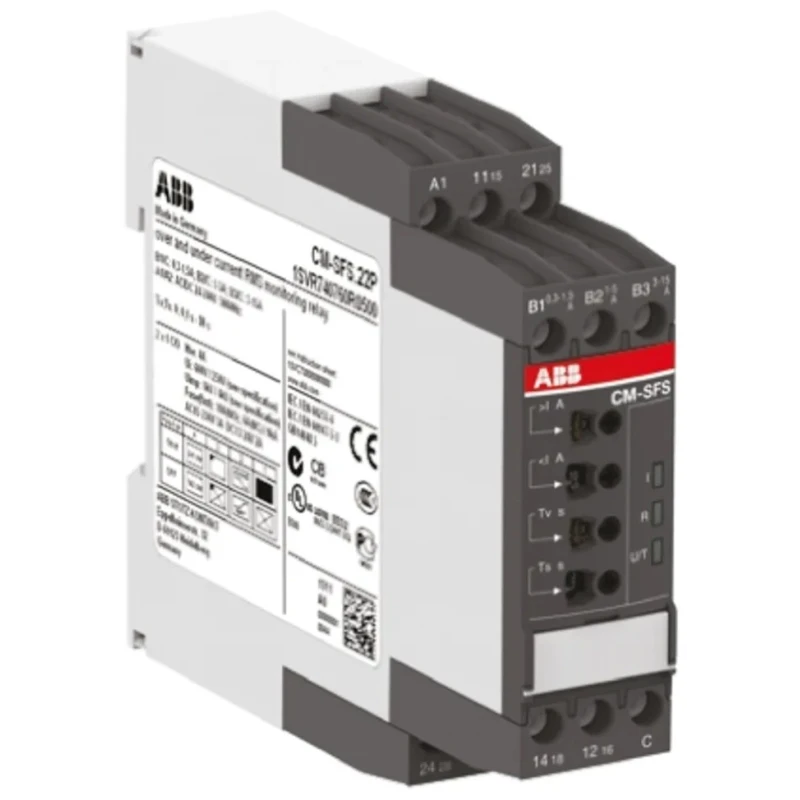

ABB CM-SFS Current Monitoring Relay 1 Phase DPDT 0.3A to 15A 240 V AC/DC DIN Rail Mount 1SVR730760R0500 CM-SFS.22S
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ABB |
| Height | 85.6mm |
| Length | 103.7mm |
| Model | 1SVR730760R0500 CM-SFS.22S |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | CM-SFS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS |
| Switching Voltage | 240V |
| Supply DC Voltage | 240 V dc |
| Supply AC Voltage | 240V ac |
| Minimum Current Sensed | 0.3A |
| Maximum Current Sensed | 15A |
| Current Sensitivity | Overcurrent, Undercurrent |
| Monitoring of DC- and AC-currents | CM-SFS.21: 3mA - 1 A and CM-SFS.22: 0.3-15A |
| ABB Current Monitoring Relay, DPDTBrand | ABB |
Key Features
- Monitors overcurrent and undercurrent conditions in single-phase AC and DC circuits.
- Features 2 changeover (DPDT) contacts configurable for combined or separate operation.
- Supports adjustable ON or OFF tripping delay and latching functions for customizable response.
- Incorporates 3 measuring ranges and uses RMS measuring principle for accuracy.
- Compact 22.5mm width housing suitable for DIN rail installation.
- Equipped with 3 LEDs for clear status indication.
- IP20 rated enclosure ensures protection in typical industrial environments.
- Robust screw terminal connections for secure wiring.
Product Description
ABB 1SVR730760R0500 CM-SFS.22S is a high precision current monitoring relay designed for single-phase AC/DC electrical systems operating at 240 V supply voltage. Its DPDT contact configuration enables reliable detection of both overcurrent and undercurrent conditions, making it ideal for industrial automation and protective monitoring applications.
The relay supports a current sensing range from 0.3 A up to 15 A, employing RMS measuring for accurate monitoring. Its flexible configuration allows the use of open- or closed-circuit principles with adjustable ON or OFF tripping delays and latching options, offering tailored protection strategies.
Constructed for DIN rail mounting, this compact device measures 22.5 mm in width, 85.6 mm in height, and 103.7 mm in length. It features robust screw terminals for secure electrical connections and an IP20 rating to safeguard against solid objects while suitable for controlled industrial environments.
Operational ambient temperature ranges from -20°C to 60°C, enabling deployment in a variety of industrial, commercial, and manufacturing settings. The CM-SFS series complies with RoHS standards, confirming its environmental safety.
Monitors single-phase currents with 2 c/o contacts configurable as DPCO or independent. Adjustable start-up delay (TS) and tripping delay (TV) from 0 to 30 seconds for precise control. Designed for overcurrent and undercurrent sensitivity with fixed 5% hysteresis.
Incorporates 3 LED indicators providing real-time status feedback. Ideal for applications in industrial automation, electrical panel protection, and monitoring in manufacturing or processing plants.
The package contains one ABB CM-SFS.22S Current Monitoring Relay ready for immediate integration into electrical control systems. Manufactured in Germany, it aligns with high-quality engineering standards.
Explore more ABB Monitoring Relays and related industrial electrical components at EnvMart for trusted performance and support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current sensing range from 0.3 A to 15 A, allowing it to monitor both overcurrent and undercurrent conditions effectively.
It is designed for DIN rail mounting, making it suitable for installation in standard electrical control systems.
The operational ambient temperature range is from -20°C to 60°C, enabling its use in various industrial environments.
This relay has an IP20 rating, which provides protection against solid objects while being suitable for controlled industrial environments.
The relay features 2 changeover (DPDT) contacts that can be configured for combined or separate operation.
It operates at a supply voltage of 240 V AC/DC, making it versatile for different electrical systems.
It is equipped with robust screw terminals, ensuring secure wiring connections in electrical installations.
Yes, it supports adjustable ON or OFF tripping delays from 0 to 30 seconds, allowing for customizable response settings.
The dimensions of this unit are 22.5 mm in width, 85.6 mm in height, and 103.7 mm in length.
This model complies with RoHS standards, confirming its adherence to environmental safety regulations.
It can monitor both DC and AC currents, specifically designed for single-phase applications.
It is manufactured in Germany, aligning with high-quality engineering standards.
