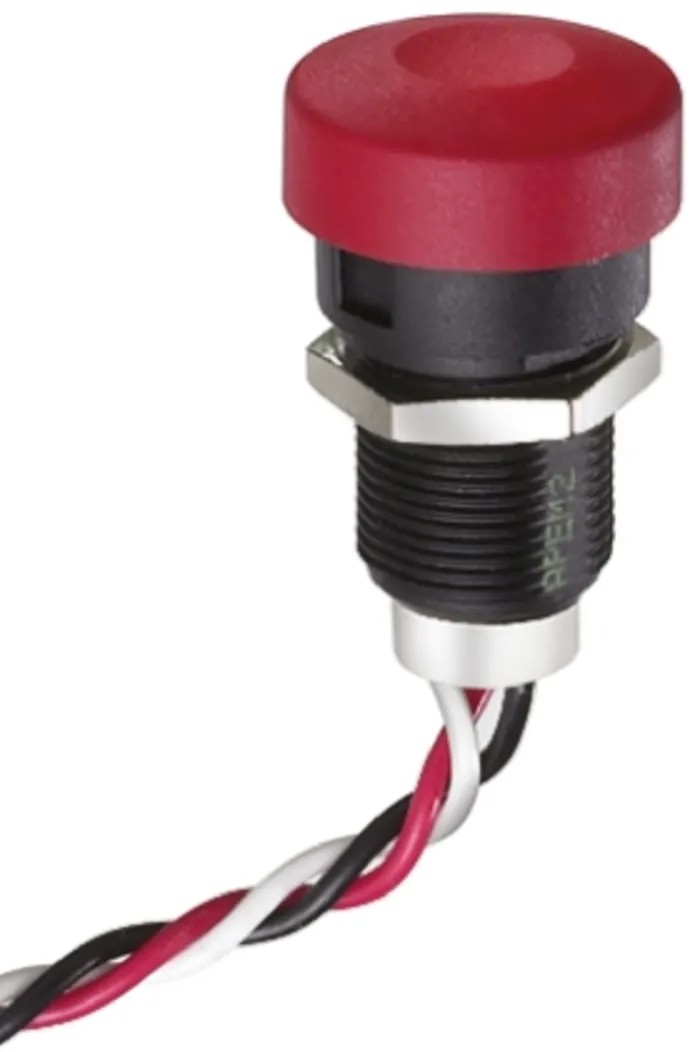

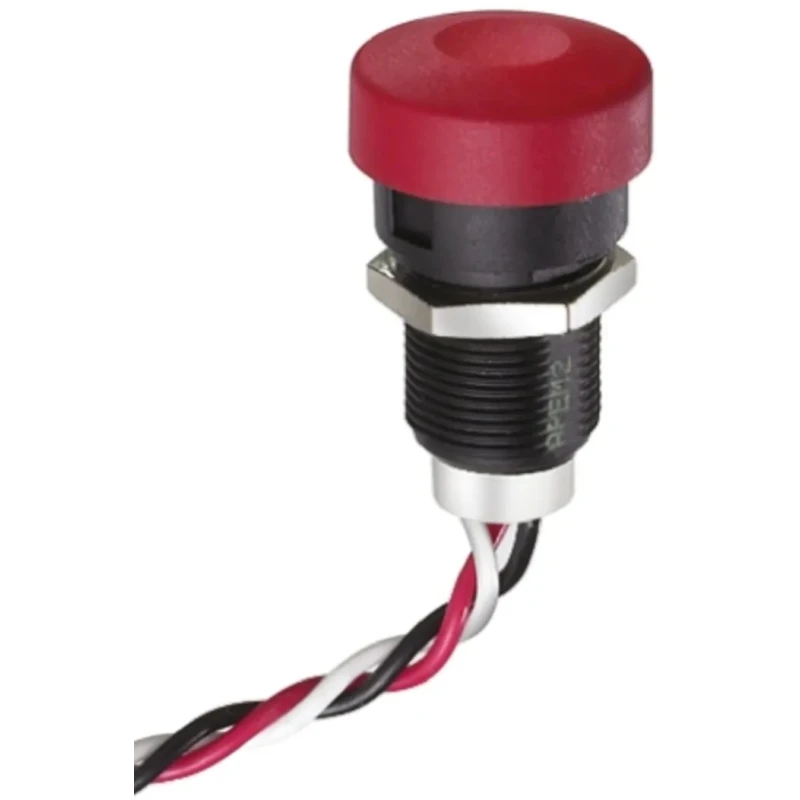

APEM Hall Effect Push Button Switch Plunger Pre-Wired Linear DIP IP67 4.5V-24V 9mA 1.25mA Operating -40°C to 85°C IP67
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | IP67 |
| IP Rating | IP67 |
| Output type | Linear |
| Maximum Operating Temperature | 85°C |
| Actuator Type | Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Pre-Wired |
| Maximum Output Current | 1.25mA |
| Switch Operation | DIP |
| Operating Force | 6N ± 2N |
| Mechanical Life | 10000000Cycles |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 9mA |
Key Features
- The switch operates from 4.5 V to 24 V supply voltage range.
- It draws a nominal supply current of 9 mA with a maximum output current of 1.25 mA.
- The plunger actuator provides reliable contactless switching through Hall effect sensor technology.
- Rated for mechanical life of 10 million cycles, ensuring durability in harsh applications.
- IP67 ingress protection guarantees dust-tight and water-resistant performance.
- Operational temperature range is from -40°C to 85°C for wide environmental tolerance.
- Pre-wired terminals simplify installation and integration.
- Compact design with low behind-panel depth and Ø12mm case diameter.
Product Description
APEM IHLR015XF6 Hall Effect Push Button Switch is a robust industrial push button switch featuring a plunger actuator and linear DIP operation. It supports an input voltage range from 4.5 V to 24 V and offers a 9 mA nominal supply current with a maximum output current capped at 1.25 mA. This switch employs advanced Hall effect sensor technology enabling reliable, contactless switching with extended mechanical life rated at 10 million cycles.
Designed with IP67 ingress protection, the switch is sealed against dust and water ingress, making it suitable for harsh industrial settings. It can operate across a wide temperature range from -40°C to 85°C, ensuring dependable performance in varying environmental conditions.
The plunger actuator provides linear output proportional to actuator travel, ideal for applications requiring precise control, such as control valves and variable speed drives used in heavy-duty machinery and industrial automation systems. The pre-wired terminals allow for straightforward installation and integration within control panels or equipment.
Its compact form factor with a 12 mm diameter case and low behind-panel depth conserves space, fitting easily into equipment enclosures. The switch is manufactured in France, reflecting stringent quality controls.
The switch operates within 4.5 V to 24 V voltage range. Nominal supply current of 9 mA with max output current 1.25 mA. Contactless switching enabled by Hall effect sensor technology. Mechanical lifespan up to 10 million cycles for high durability.
IP67 rated for dust and water ingress protection. Wide operating temperatures from -40°C to 85°C. Pre-wired terminal type simplifies installation. Compact Ø12 mm case with low behind panel depth. Suitable for industrial, automation, and heavy-duty equipment controls.
Explore APEM products and similar Push Button Switches at EnvMart for reliable industrial control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a voltage range of 4.5 V to 24 V.
The nominal supply current is 9 mA.
The maximum output current is capped at 1.25 mA.
It features a plunger actuator for reliable contactless switching.
It has a mechanical life rated at 10 million cycles.
This switch has an IP67 ingress protection rating, making it dust-tight and water-resistant.
It operates effectively in temperatures ranging from -40°C to 85°C.
The Hall effect technology enables reliable, contactless switching, enhancing its performance in industrial applications.
It features pre-wired terminals, simplifying installation and integration.
The switch has a compact case diameter of Ø12 mm.
It is ideal for applications requiring precise control, such as control valves and variable speed drives in industrial automation.
This switch is manufactured in France, reflecting stringent quality controls.
