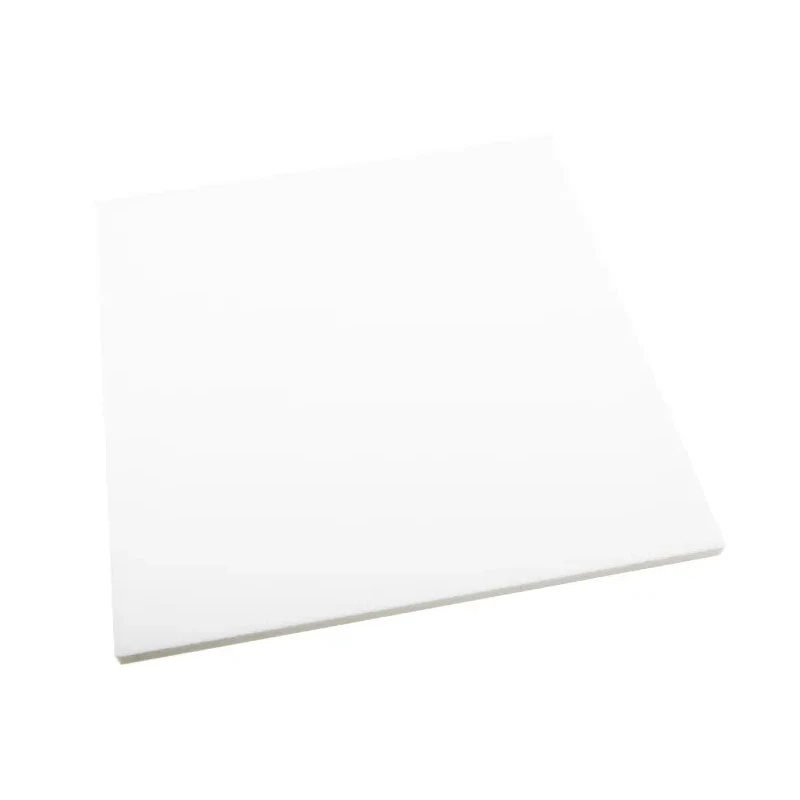

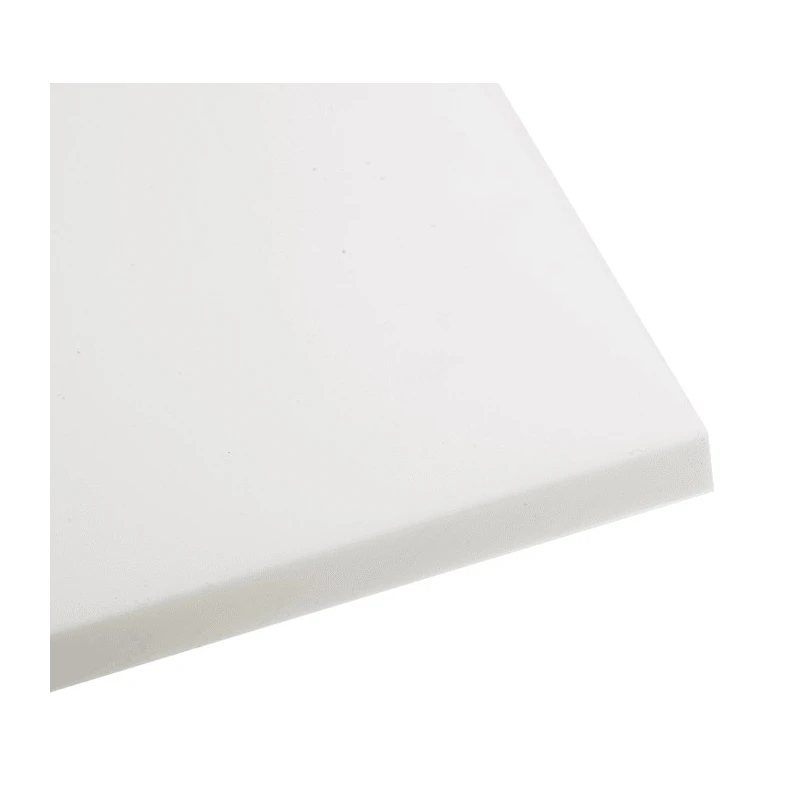

RS PRO White Polytetrafluoroethylene Plastic Sheet 300 mm x 300 mm x 10 mm 197-0073

RS PRO 197-0073 Polytetrafluoroethylene Plastic Sheet measuring 300 mm x 300 mm x 10 mm is a high-performance solid plastic sheet designed for industrial and engineering applications requiring high chemical resistance and thermal stability. Its material composition of polytetrafluoroethylene (PTFE), commonly known as Teflon, offers superior low friction and excellent sliding properties.

PTFE is a semi-crystalline thermoplastic known for exceptional chemical inertness and thermal endurance with a maximum operating temperature of 260°C and short-term tolerance up to 300°C. The sheet's white color and uniform density of 2.21 g/cm³ ensure consistent performance over time.

The sheet features a tensile strength of 25 MPa and a Rockwell hardness of R 118, ensuring durability and resistance to mechanical stress. It meets the UL 94 V-0 flammability standard, making it flame retardant and self-extinguishing.

Additional material properties include low water absorption (0.3%) which maintains integrity in moist environments and thermal conductivity of 0.17 W/mK for insulating applications. Impact strength is rated at 12 kJ/m², which helps resist shocks during handling and usage.

Typical applications cover a broad range of industries including transport and conveying systems, pump manufacturing, electrical engineering, food processing, medical technology, aerospace, and laser technology. The sheet is ideal for fabrication of components that require resistance to high chemical stress and excellent sliding surfaces to reduce wear and maintenance costs.

RS PRO sheets are manufactured adhering to standards DIN 53479, DIN 53736, and ASTM-D 1929, assuring quality and reliability for professional industrial usage. Manufactured from high-quality polytetrafluoroethylene for chemical resistance.

High temperature range supports demanding industrial environments. Superior mechanical strength with excellent wear resistance. Flame-retardant and self-extinguishing material specification. Low moisture absorption maintains performance under wet conditions.

Electrical insulation and low dielectric constant features. Wide industrial usage including aerospace, medical, food and electrical sectors. Easy machining for custom fabrication and component manufacturing. Complies with important DIN and ASTM standards.

Made in Italy ensuring stringent manufacturing quality. Explore more industrial Plastic Sheets and materials on EnvMart for your specialized engineering projects.
