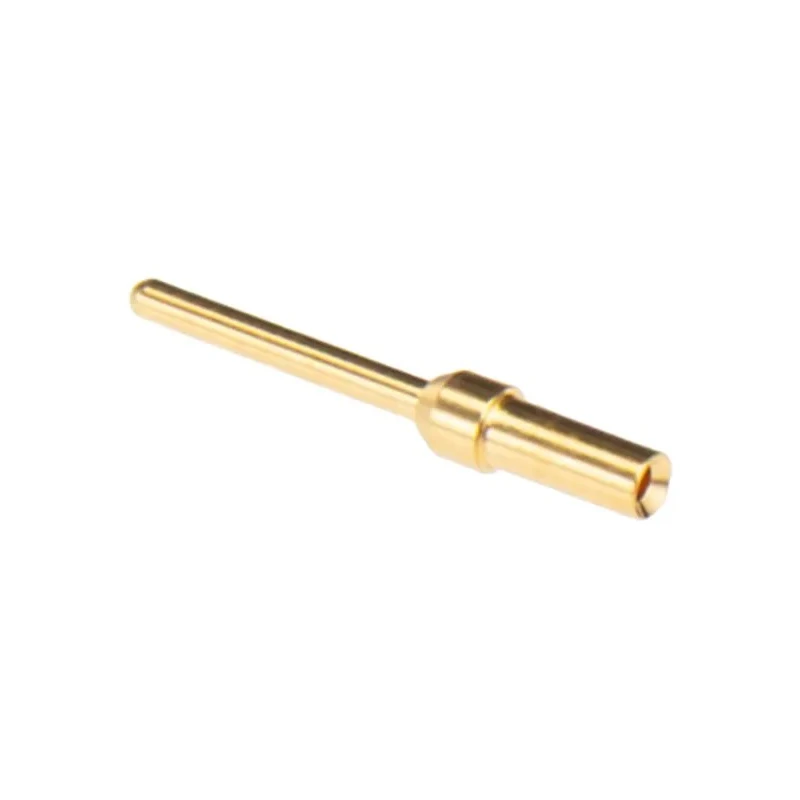

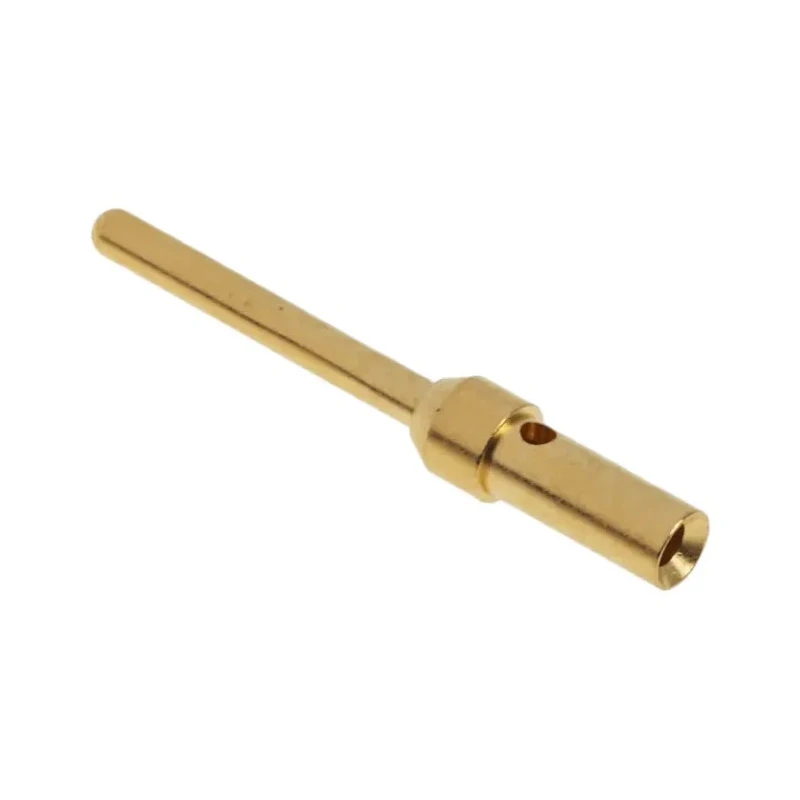

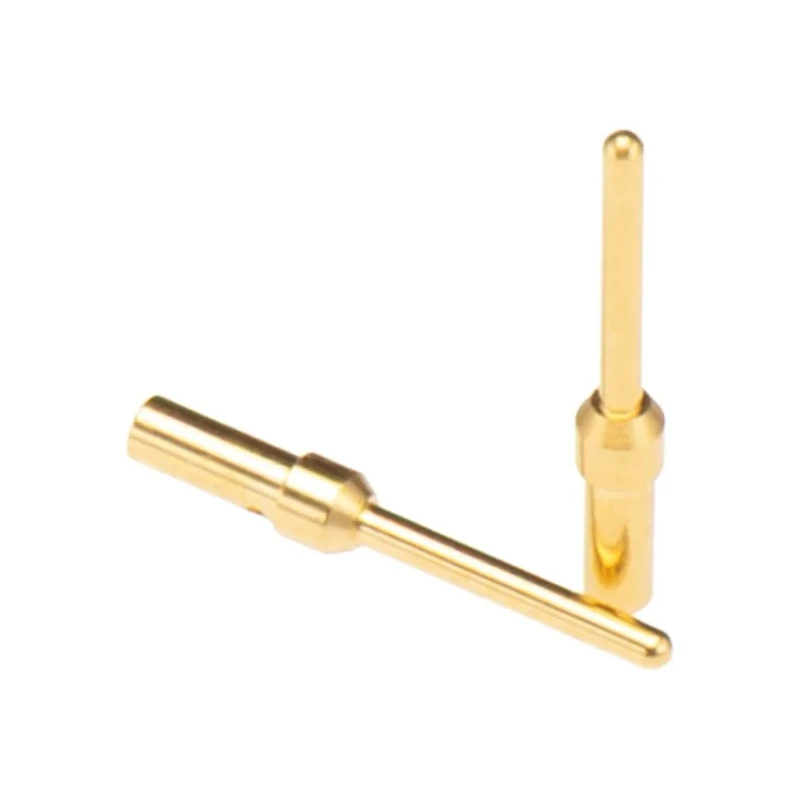

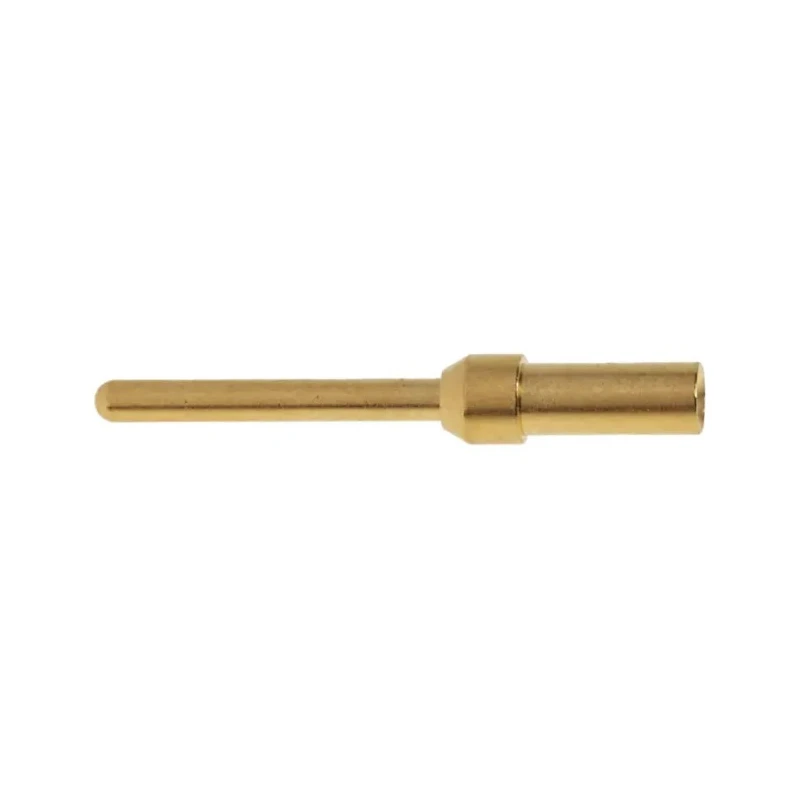

HARTING Male Crimp Circular Connector Contact, Contact Size 1.04 mm, Wire Size 22, 26 AWG, Gold Over Nickel 09670005576

Free Delivery in India | Lowest Global Shipping Charges

HARTING Male Crimp Circular Connector Contact, Contact Size 1.04 mm, Wire Size 22, 26 AWG, Gold Over Nickel 09670005576

Name: HARTING Male Crimp Circular Connector Contact, Contact Size 1.04 mm, Wire Size 22, 26 AWG, Gold Over Nickel 09670005576
Brand: HARTING
SKU: 104603
Price: 30.28 USD
Availability: InStock



Category Circular Connector Contact Brand HARTING Condition New

Specifications

Country of Origin	Switzerland
Brand	HARTING
Length	14.2mm
Gender	Male
Contact Material	Copper Alloy
Series	D-Sub Standard
Termination Type	Crimp
Maximum Operating Temperature	85°C
Contact Type	Signal
Minimum Operating Temperature	-40°C
Wire size	22, 26AWG
For Use With	D-Sub Connector
Standards/Approvals	RoHS
Contact Plating	Gold over Nickel
Contact Size	1.04 mm
Maximum Contact Resistance	10mΩ

Key Features

Constructed of durable copper alloy to ensure strong conductivity and mechanical resilience.
Gold over nickel plating minimizes oxidation and maintains stable electrical contact over time.
Crimp termination designed for secure conductor retention with compatible crimp tooling.
Operates efficiently within a wide temperature range from -40°C to 85°C for varied industrial environments.
Designed to fit D-Sub standard connector series for signal-type connections.
Maintains a low maximum contact resistance of 10 mΩ to ensure signal integrity.
RoHS compliant, meeting environmental and safety standards.

Product Description

HARTING 09670005576 Male Crimp Circular Connector Contact is a high-quality signal contact designed for insertion into D-Sub connector assemblies. With a contact size of 1.04 mm and a length of 14.2 mm, this copper alloy contact features gold over nickel plating, which enhances electrical performance by minimizing oxidation at the mating surfaces and maintaining stable conductivity under repeated matings.

The crimp termination accepts stranded conductors in the 22 to 26 AWG range, ensuring secure conductor retention with standard tooling. Operating effectively across a temperature range of -40°C to 85°C, this contact suits a variety of industrial applications including automation control cabinet signal wiring, industrial electronics rack interconnections, test and measurement rigs, electrical panel extensions, and maintenance retrofitting.

This male contact supports reliable D-Sub signal connection assemblies. Its rugged construction provides mechanical resilience and consistent electrical transmission in demanding industrial environments.

Durable copper alloy construction for conductivity and strength. Gold over nickel plating reduces oxidation and contact resistance. Crimp termination compatible with 22 to 26 AWG wire sizes. Operating temperature from -40°C to 85°C for broad environmental use.

14.2 mm length ensures firm connector engagement. Meets RoHS standards for restricted hazardous substances. Low maximum contact resistance of 10 mΩ enhances signal integrity.

Manufactured in Switzerland, this contact is integral for precise and reliable electronic connections in industrial, automation, HVAC, manufacturing, and testing applications. The HARTING 09670005576 contact is engineered to meet high standards of performance and reliability in professional industrial settings.

Explore more high-quality Circular Connector Contacts and components within the Electronics & Electricals category at EnvMart for trusted industrial and commercial use.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The contact size of this model is 1.04 mm.

This crimp connector is compatible with wire sizes 22 and 26 AWG.

The maximum operating temperature for this connector contact is 85°C.

The minimum operating temperature for this connector contact is -40°C.

This connector contact uses a crimp termination type, designed for secure conductor retention.

This connector contact is constructed from copper alloy, which ensures strong conductivity and mechanical resilience.

The length of this connector contact is 14.2 mm.

The maximum contact resistance of this connector is 10 mΩ, which helps maintain signal integrity.

Yes, this connector contact is RoHS compliant, meeting environmental and safety standards.

This connector contact is designed to fit the D-Sub standard connector series for signal-type connections.

This connector contact is manufactured in Switzerland.

This connector contact can be used in various applications, including automation control cabinet signal wiring and industrial electronics rack interconnections.
