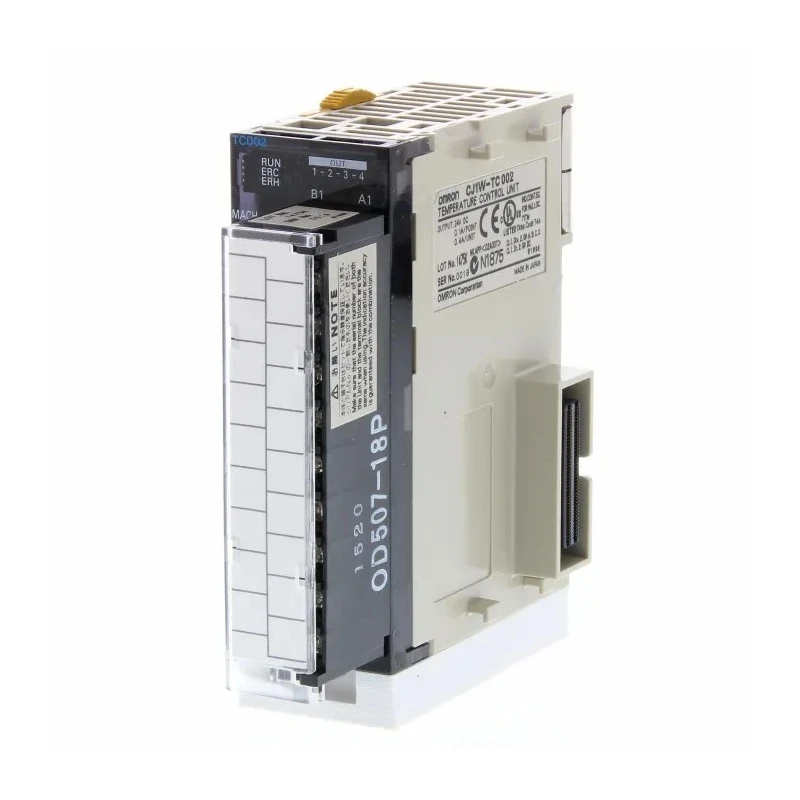

Omron CJ Series PLC Expansion Module with Thermocouple Inputs, 4 Loops, Open Collector Control Outputs CJ1W-TC002
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Dimensions | Height- 90mm, Width- 31mm, Depth- 89mm |
| Model | CJ1W-TC002 |
| Series | CJ |
| Accessory Type | PLC Expansion Module |
| For Use With | CJ Series |
| Hazardous Area Certification | Zone 2 |
| Standards/Approvals | CE, cULus |
Key Features
- Equipped with thermocouple inputs and resistance thermometer direct input.
- Includes 4 control loops with open collector PNP outputs.
- Supports PID control with 2 degrees of freedom for precise temperature management.
- Compatible as a special I/O unit for CJ1M CPU, classified under digital I/O units.
- Allows up to 65 data collection patterns.
- Fast 500 ms sampling cycle ensures timely temperature monitoring.
- Run/Stop control from CPU and heater burnout detection enhance reliability.
- Auto-tuning function improves control accuracy.
Product Description
Omron CJ1W-TC002 PLC Expansion Module is a high-precision temperature control unit designed for integration with Omron CJ Series PLC systems. It facilitates direct inputs from thermocouples or resistance thermometers and incorporates PID control with 2 degrees of freedom. The module provides four loops of open collector control PNP outputs, enabling efficient temperature regulation.
Classified as a digital I/O unit, it utilizes digital I/O points allocated within the CJ1M CPU, supporting up to 65 data collection patterns for flexible operation. The module operates with a rapid 500 ms sampling cycle, ensuring responsive temperature measurements and control adjustments.
The device offers run/stop control directly from the CPU unit and includes diagnostic features such as heater burnout detection. The auto-tuning (AT) function optimizes control performance, adapting to varying process requirements. Installation is simplified by DIN rail mounting and removable terminal blocks with 18 points secured by M3 screws.
This PLC expansion module is designed for demanding industrial environments such as automation systems, pharmaceutical manufacturing, and food processing. Its compliance with CE and cULus standards guarantees safety and reliability. The module originates from Japan and measures 90 mm in height, 31 mm in width, and 89 mm in depth.
Equipped with thermocouple inputs and resistance thermometer direct input. Includes 4 control loops with open collector PNP outputs. Supports PID control with 2 degrees of freedom for precise temperature management. Compatible as a special I/O unit for CJ1M CPU, classified under digital I/O units.
Allows up to 65 data collection patterns. Fast 500 ms sampling cycle ensures timely temperature monitoring. Run/Stop control from CPU and heater burnout detection enhance reliability. Auto-tuning function improves control accuracy.
DIN rail mounting with removable terminal blocks for easy installation. Ideal for industrial automation, pharmaceutical, and food processing sectors. Explore the Omron product range and industrial automation solutions available at EnvMart to optimize your control systems.
Explore more products in our PLC Expansion Modules category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The module supports direct inputs from thermocouples and resistance thermometers, allowing for a versatile temperature measurement range, though specific limits are not detailed in the provided specifications.
It includes four control loops with open collector PNP outputs for effective temperature regulation.
The sampling cycle is rapid, with a duration of 500 ms, ensuring timely temperature monitoring and control adjustments.
This unit is specifically designed for use with the Omron CJ Series PLC systems, functioning as a special I/O unit for the CJ1M CPU.
The module measures 90 mm in height, 31 mm in width, and 89 mm in depth, making it suitable for various installation environments.
It features DIN rail mounting with removable terminal blocks, facilitating easy installation and maintenance.
The module complies with CE and cULus standards, ensuring it meets specific safety and reliability requirements.
The Omron CJ1W-TC002 is manufactured in Japan.
It is designed for demanding industrial environments including automation systems, pharmaceutical manufacturing, and food processing.
Yes, it includes diagnostic features such as heater burnout detection to enhance reliability in operation.
The auto-tuning function optimizes control performance by adapting to varying process requirements, enhancing overall control accuracy.
It allows for up to 65 data collection patterns, providing flexibility in operation and data management.
