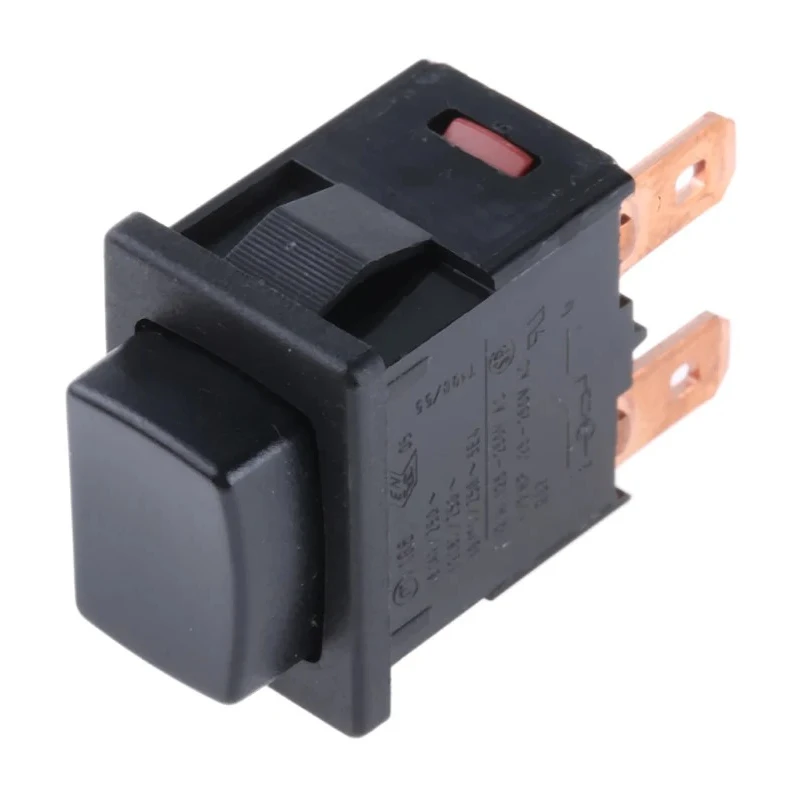

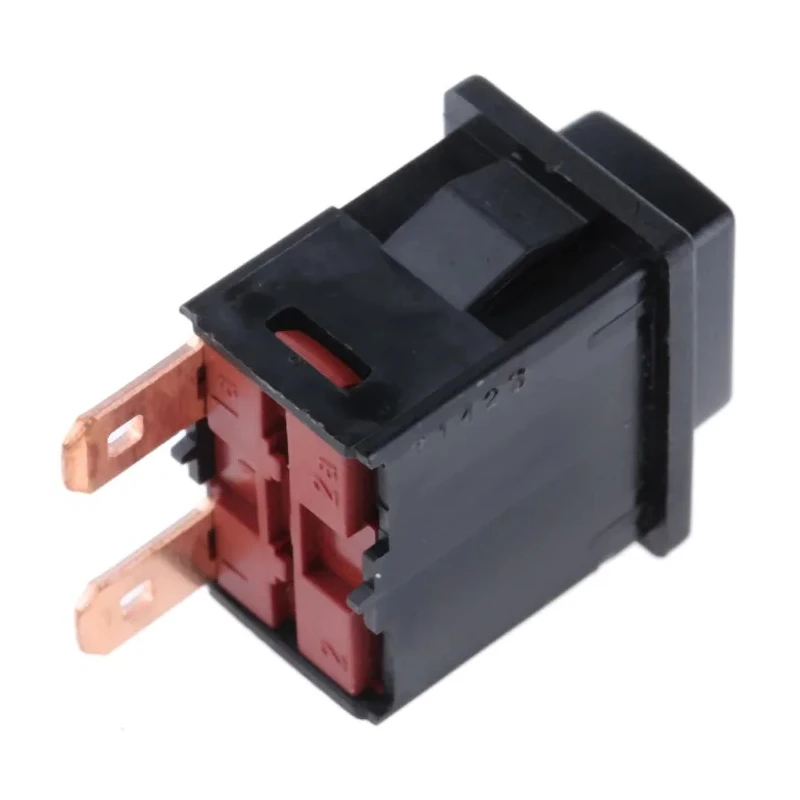

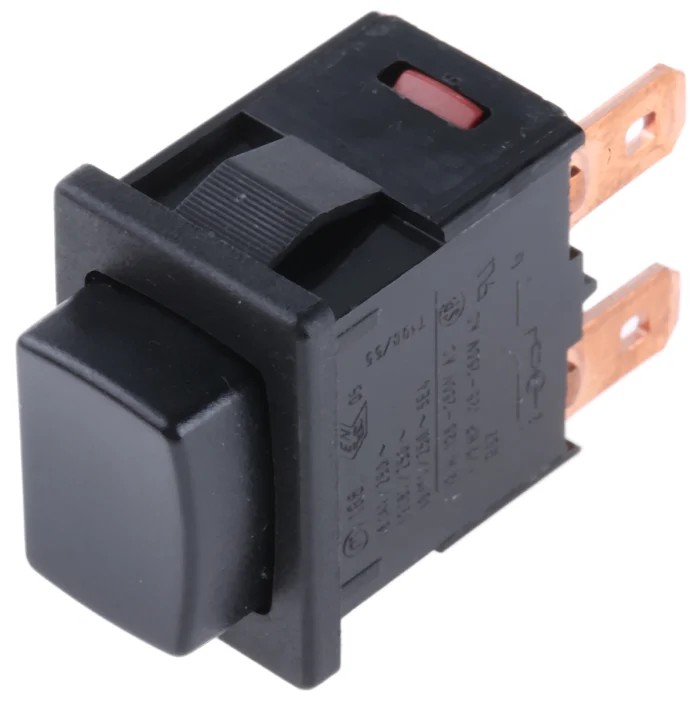

Marquardt Push Button Switch Momentary Panel Mount 12.9 x 19.8 mm Cutout SPST IP40 250V AC 1683.1201

The Marquardt 1683.1201 Push Button Switch is a high-quality momentary panel-mounted switch designed for industrial and electrical automation applications. It features a compact 12.9 x 19.8 mm panel cutout size, making it suitable for precise installations in Class II appliances and control panels.

With a single-pole single-throw (SPST) contact configuration and tab-type terminals, this switch ensures reliable and quick connections. The black button actuator offers a responsive momentary on-off operation, providing intuitive user control in various electrical circuits.

Rated at 250 V AC and capable of switching currents up to 16A, the switch is robust enough for demanding environments. It complies with UL and CSA standards, ensuring safety and quality. The device is IP40 rated, protecting it from solid-waste intrusion larger than 1 millimeter, making it suitable for indoor industrial use where moisture is controlled.

The maximum operating temperature of 120°C allows safe function in higher temperature environments without degradation. The components feature different UL 94 flammability ratings (actuator: V-0, socket: V-1, housing: V-2) to enhance fire safety during operation.

Ideal for use in electrical panels, industrial automation equipment, manufacturing machinery, and building controls, this push button switch delivers durability and consistent performance. Its momentary operation makes it suitable for applications requiring temporary activation like reset buttons or start commands.

The actuator colour is black for clear visibility and professional look. Momentary switch action to activate circuits temporarily. Panel mount design with a precision 12.9 x 19.8 mm cutout. SPST contact configuration for simple on-off switching.

Rated for 16A contact current at 250V AC for high load applications. IP40 ingress protection against solid objects and debris. Equipped with tab terminals for fast and secure connection. UL and CSA approved, supporting industry safety standards.

Maximum operating temperature of 120°C for reliable performance in warm environments.

Each unit ships as a single push button switch with no illumination. This product is manufactured in Tunisia, providing quality international standards compliance. It caters to industries including electrical engineering, manufacturing, HVAC control, and general automation.
