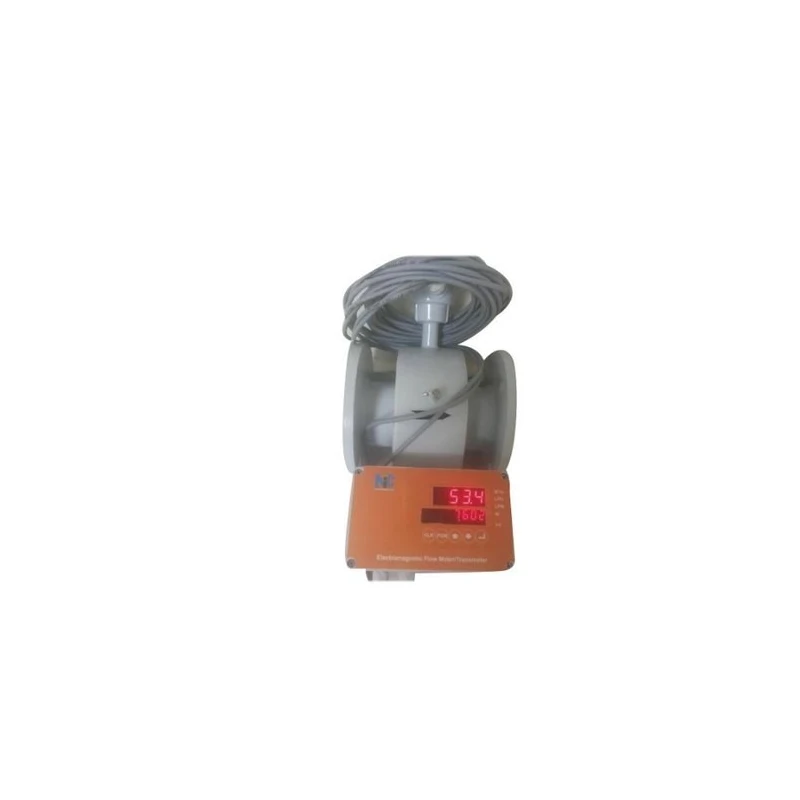

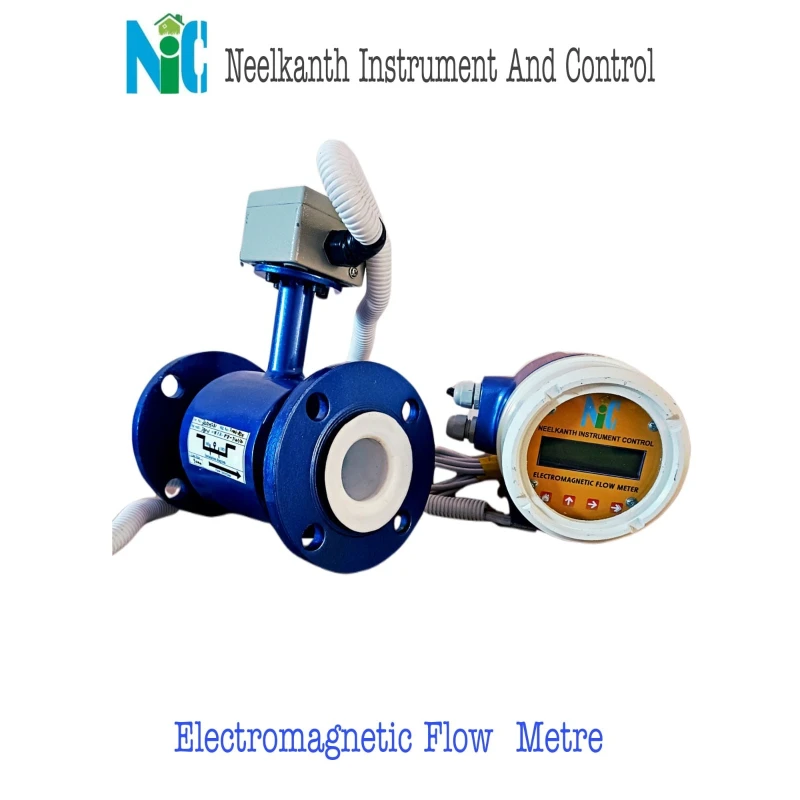

Electromagnetic Flow Meter DN10-DN2000mm
Specifications
| Display | LCD Display In Engg.Units |
|---|---|
| Diameter | DN10~DN2000mm |
| Power Supply | 230VAC|24VDC|Battery |
| Flow Rate | 0.3~10m/s |
| Signal Output | 4~20mA| Pulse and Relay |
| Medium temperature | Less Than 180"|C |
| End Connection | Flange-end| Wafer| Tri-Clover etc. |
| Electrode Material | SS316 Std.|Hastalloy C|Titanium|Tantalum|Platinum|etc |
| Lining Material | PTFE|Rubber|Neoprene|PFA|HDPE|Polyurethane|CPVC etc |
| Flow Transmitter | Integral| Remote |
Key Features
- Bulk Quantities Available
Product Description
The working principle of a magnetic flow meter is based on Faradays law of electromagnetic induction.According to Faradays law, when the conductive fluid flows through a magnetic field of the sensor, an electromotive force proportional to the volume flow is generated between the pair of electrodes, which is perpendicular to the flow direction and the magnetic field.The amplitude of the electromotive force can be expressed as:E = kBDvWhere E:Induced electric potential,K: constant,B:Magnetic flux density,D:The inner diameter of the measuring Tube,V:The average velocity of the fluid in theaxial direction of the electrode cross-section insidethe measuring tube.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow rate range of this model is from 0.3 to 10 m/s.
It accommodates pipe diameters ranging from DN10 to DN2000 mm.
This electromagnetic flow meter offers signal outputs of 4-20 mA, pulse, and relay.
It can be powered by 230 VAC, 24 VDC, or battery.
Electrode materials include SS316 standard, Hastalloy C, Titanium, Tantalum, and Platinum.
It can be configured with flange-end, wafer, or Tri-Clover connections.
The maximum medium temperature it can handle is less than 180°C.
It features an LCD display in engineering units.
Available lining materials include PTFE, Rubber, Neoprene, PFA, HDPE, Polyurethane, and CPVC.
Yes, this model offers both integral and remote flow transmitter options.
It operates based on Faraday's law of electromagnetic induction, generating an electromotive force as conductive fluid flows through a magnetic field.
It is suitable for measuring the flow of conductive fluids in various industrial applications.
