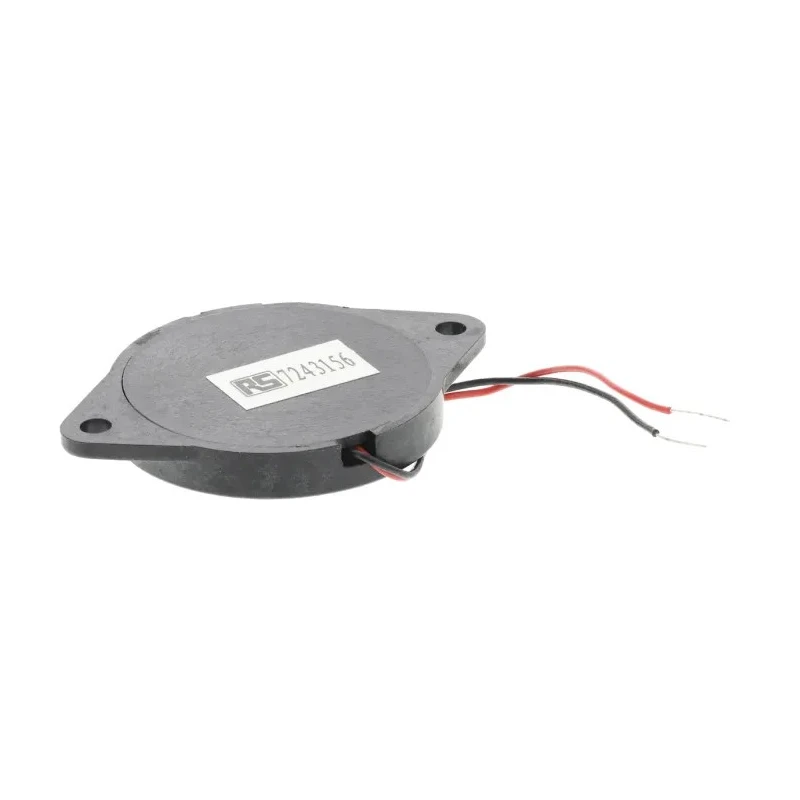

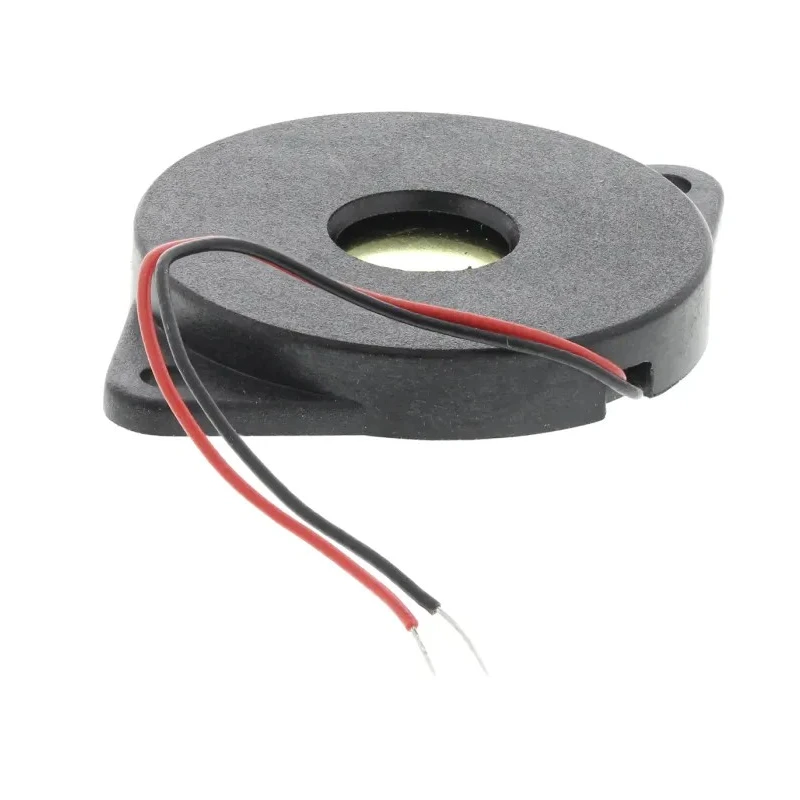

RS PRO 90 dB Panel Mount Square Wave External 4 mm Piezo Buzzer Component 34 mm 724-3156
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 24mm |
| Brand | RS PRO |
| Sound Level | 90dB |
| Height | 4mm |
| Length | 34mm |
| Model | 724-3156 |
| Depth | 24mm |
| Drive Type | External |
| Mount Type | Panel Mount |
| Maximum Operating Temperature | 70°C |
| Capacitance | 18nF |
| Minimum Operating Temperature | -20°C |
| Maximum Frequency | 6.2kHz |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 1V |
| Supply Current | 8mA |
| Tone Type | Square Wave |
| Minimum Frequency | 4800Hz |
Key Features
- Operates at minimum supply voltage of 1 V and maximum of 30 V.
- Panel mount type with a diameter of 24 mm and length of 34 mm.
- Produces 90 dB sound level with square wave tone.
- Suitable for operation temperature range of -20°C to 70°C.
- Features external drive type with 8 mA supply current.
- Maximum frequency of 6.2 kHz and minimum frequency of 4800 Hz.
- Capacitance of 18 nF for stable performance.
- Flanged transducer design with flying lead connections for easy mounting.
Product Description
RS PRO 724-3156 is a high-performance piezo buzzer component designed for panel mount applications. It delivers a loud 90 dB sound output powered by an external square wave drive, making it suitable for electronic devices requiring audible signaling or alarms.
The buzzer operates over a voltage range from 1V minimum to 30V maximum supply voltage, making it versatile for various low power applications. Its compact dimensions with a 24 mm diameter and 34 mm length allow for easy integration into control panels or equipment enclosures.
Designed to withstand operating temperatures from -20°C to 70°C, this buzzer is reliable in typical industrial and commercial environments. It features a flanged transducer with flying lead connections, enabling secure mounting and straightforward wiring.
The tone type is a square wave, and it operates with a supply current of 8 mA, offering efficient power consumption. The component provides sound frequencies between 4800 Hz and 6.2 kHz to ensure clear and distinct alerts.
This piezo buzzer component is ideal for industrial automation, laboratory equipment, HVAC systems, manufacturing controls, and other applications requiring audible alerts or notifications.
Operates at minimum supply voltage of 1 V and maximum of 30 V. Panel mount type with robust flanged design for easy installation. Produces 90 dB sound level, suitable for loud signaling. Square wave tone driven by external circuitry for customizable signals.
Capacitance of 18 nF and supply current of 8 mA. Operating temperature range from -20°C to 70°C. Compact size with 24 mm diameter and 34 mm length. Designed for industrial and commercial electronic systems.
This RS PRO piezo buzzer component is supplied new and originates from China. Explore similar Piezo Buzzer Components in our Electronics Components category to enhance your system design and panel configurations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It produces a sound level of 90 dB, making it suitable for loud signaling applications.
The buzzer operates at a minimum supply voltage of 1 V and a maximum of 30 V.
It operates with sound frequencies between 4800 Hz and 6.2 kHz.
This model produces a square wave tone driven by external circuitry.
It has a diameter of 24 mm and a length of 34 mm, making it compact for panel mounting.
The buzzer requires a supply current of 8 mA for operation.
It is designed to operate within a temperature range of -20°C to 70°C.
This unit features a panel mount type with a flanged transducer design for easy installation.
The capacitance is 18 nF, which contributes to its stable performance.
Yes, it is ideal for industrial automation, laboratory equipment, HVAC systems, and manufacturing controls.
The piezo buzzer component originates from China.
It features flying lead connections for straightforward wiring and secure mounting.
