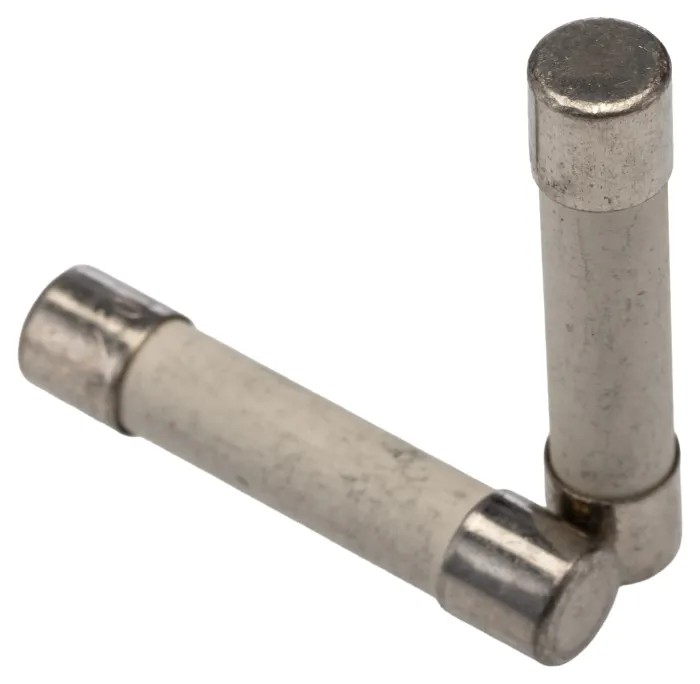

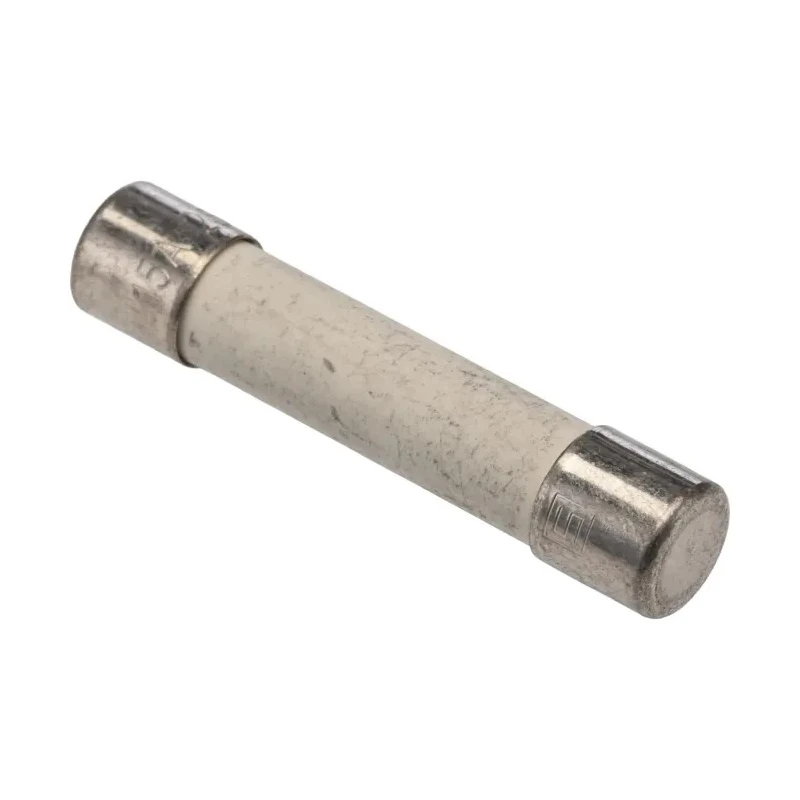

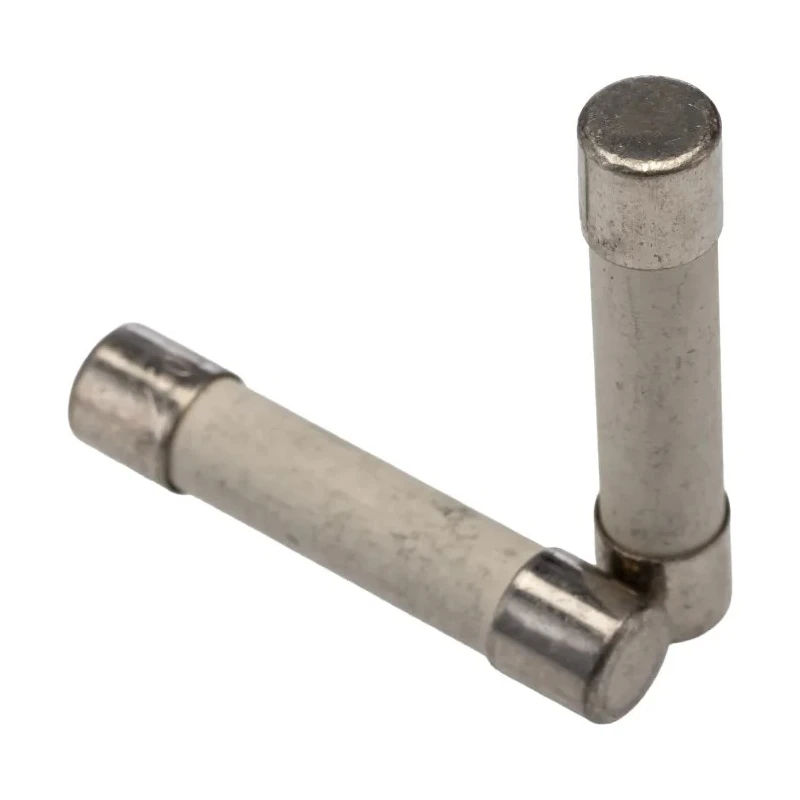

Schurter 15A T Ceramic Cartridge Fuse 6.3 x 32 mm 250V AC Time Lag SUT 6.3x32 Series 8020.0604.G

Schurter 8020.0604.G is a Ceramic Cartridge Fuse with a rated current of 15A and designed to operate at 250V AC. This fuse features a time lag (slow-blow) characteristic, making it suitable for circuits with temporary surges and inrush currents. The fuse body is made of ceramic material, ensuring high durability, thermal stability, and safety in electrical protection applications.

The Cartridge Fuse measures 6.3 by 32 mm with an overall length of 31.8 mm and a diameter of 6.35 mm, designed to fit compact fuse holders. It is capable of operating safely in extreme conditions, from a minimum temperature of -40°C up to a maximum of 85°C, ensuring reliable performance in varied industrial and commercial environments.

This fuse complies with relevant safety and quality standards including UL 248-14, CSA C22.2 No. 248.14, cURus, and meets RoHS directives by limiting hazardous substances. It is part of the SUT 6.3x32 series, known for low resistance and slow-blow characteristics, suitable for protecting sensitive electrical equipment from overcurrent conditions.

Typical applications include electrical, automation, and control systems where precise circuit protection is mandatory. Its ceramic construction provides enhanced resistance to heat, making it ideal for higher power circuit protection tasks.

The fuse is designed with a ceramic body for high durability and heat resistance. Features a time lag (slow-blow) characteristic suited for protecting circuits with transient surges. Dimensions are compact 6.3 x 32 mm with an overall length of 31.8 mm for easy installation.

Operates safely within temperature ranges from -40°C to 85°C to ensure stable performance. Complies with UL 248-14, CSA C22.2 No. 248.14, cURus, and RoHS standards for safety and environmental compliance. Ideal for use in electrical, automation, and industrial control applications requiring reliable overcurrent protection.

This Schurter fuse represents a reliable and certified solution for circuit protection needs in diverse industrial and commercial sectors. EnvMart offers a wide range of fuse types and electrical protection components to support various applications.
