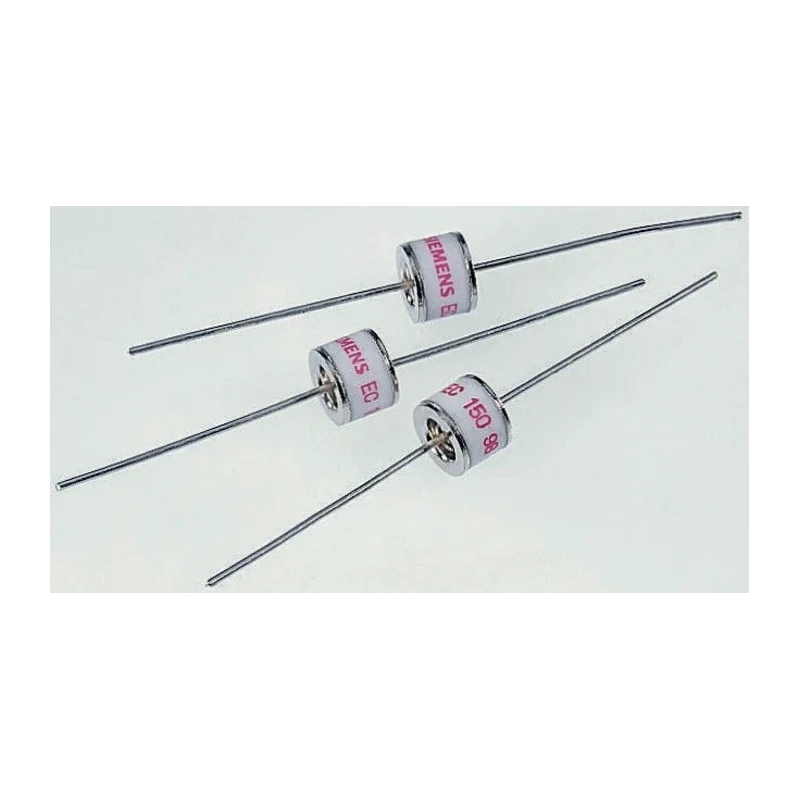

TDK Through Hole Surge Arrester Gas Discharge Tube 350 V dc 10 kA EHV Series B88069X4640C102
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Length | 5mm |
| Model | B88069X4640C102 |
| Mount Type | Through Hole |
| Series | EHV |
| Maximum Operating Temperature | 90°C |
| Capacitance | 1pF |
| Minimum Operating Temperature | -40°C |
| Suppressor Type | Surge Arrester |
| Maximum Voltage | 350V dc |
| Standards/Approvals | IEC 60068-1, ITU-T Rec. K.12, DIN 57845/VDE0845 |
| Maximum Surge Current | 10kA |
| DC Spark Over Voltage | 350V dc |
| Impulse Spark Over Voltage | 800V |
Key Features
- Miniature gas-filled tube ensuring stable and reliable performance over its lifespan.
- Very small size and through-hole mount suitable for compact PCB designs.
- Extremely low capacitance of 1 pF helps maintain signal integrity.
- Has a very fast response time to transient surges.
- Operates safely between -40°C and 90°C maximum operating temperatures.
- Meets international standards such as IEC 60068-1, ITU-T Rec. K.12, and DIN 57845/VDE0845.
- Manufactured origin is China, assuring quality in line with global specifications.
Product Description
TDK B88069X4640C102 is a highly reliable through hole surge arrester gas discharge tube designed for protecting sensitive electronic components from transient voltage surges up to 10 kA. It belongs to the EHV series renowned for miniature gas filled characteristics ensuring long-term stability and performance.
This device operates with a nominal DC spark over voltage of 350 V and an impulse spark over voltage rating of 800 V. Its extremely low capacitance value of 1 pF minimizes interference within high-frequency circuits and maintains signal clarity vital to industrial, laboratory, and commercial electronic applications.
The compact 5 mm length dimension supports ease of PCB mounting using through hole technology, ideal for space-constrained environments. Its operating temperature range from -40°C to 90°C allows robust performance under diverse environmental conditions found in industrial and power supply applications.
Compliance with standards including IEC 60068-1, ITU-T Rec. K.12, and DIN 57845/VDE0845 verifies reliability and safety in surge suppression duties. This gas discharge tube is typically integrated into circuit boards to protect telecommunication, power, and electronic control equipment from damaging voltage spikes.
Industrial users will find this product effective in a variety of contexts requiring fast response surge protection with minimal leakage and high insulation resistance. It supports design efficiency by being supplied in a ready-to-insert packaged form compatible with automated assembly processes.
Miniature gas filled, EHV axial series. Stable performance over life and very fast response time. Very small size enabling compact designs. Extremely low capacitance ensuring signal quality. High insulation resistance and reliable surge handling.
Choose TDK surge arresters for superior protection in electronics manufacturing, power management, telecommunications, industrial controls, and laboratory instrumentation. Discover more products in our Surge Protection Devices category for all your circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current rating of this gas discharge tube is 10 kA.
The nominal DC spark over voltage for this model is 350 V.
It has an extremely low capacitance value of 1 pF, which helps maintain signal integrity.
The operating temperature range for this unit is from -40°C to 90°C.
This gas discharge tube has a length of 5 mm, making it suitable for compact PCB designs.
It complies with international standards including IEC 60068-1, ITU-T Rec. K.12, and DIN 57845/VDE0845.
This surge arrester features a through-hole mount type, allowing for easy PCB integration.
The impulse spark over voltage rating is 800 V.
This model is typically integrated into circuit boards to protect telecommunication, power, and electronic control equipment from voltage spikes.
The extremely low capacitance of 1 pF minimizes interference within high-frequency circuits, maintaining signal clarity.
The surge arrester is manufactured in China, ensuring quality in line with global specifications.
This model belongs to the EHV series, known for its miniature gas-filled characteristics and reliable performance.
