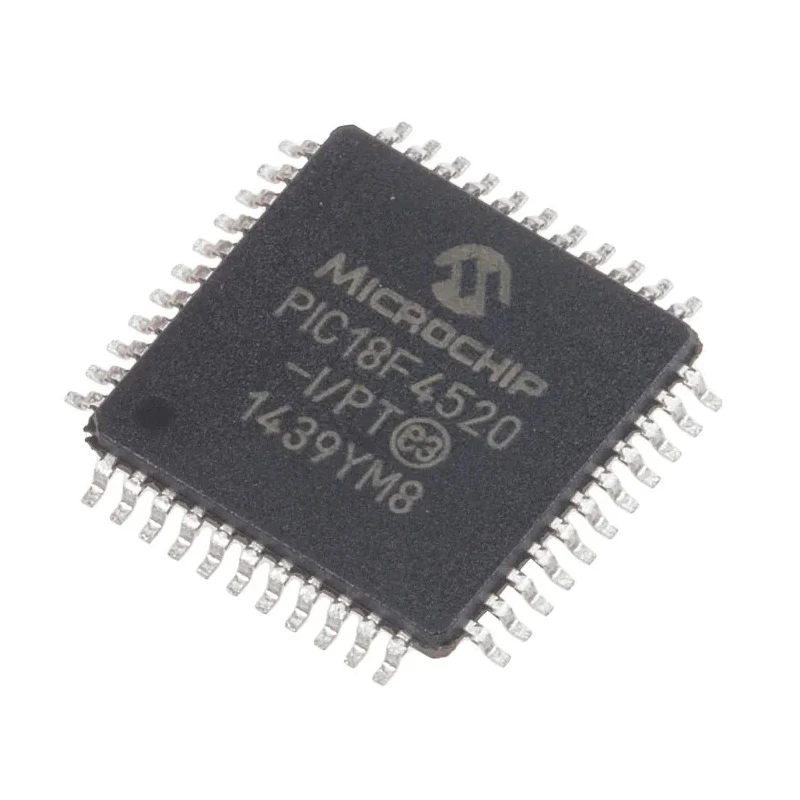

Microchip 8-bit PIC Microcontroller, 40 MHz Clock Frequency, 32kB Flash Memory, 44-Pin TQFP PIC18F4520
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18F4520 |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | PIC18F4520 |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.54kB |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 4.2V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with 8-bit data bus width for embedded applications.
- Features 44-pin TQFP package with through-hole mount type.
- Includes 1.54kB RAM and 36 programmable I/O pins.
- Incorporates 13 channels of 10-bit ADC for analog to digital conversion.
- Supports a wide operating temperature range from -40°C to 85°C.
- Maximum supply voltage of 5.5V with power dissipation up to 1W.
- Employs RISC architecture with 75 instructions and 31 level hardware stack.
- Includes peripherals like enhanced capture/compare/PWM and multiple timers.
Product Description
Microchip PIC18F4520 is an advanced 8-bit PIC microcontroller featuring a maximum clock speed of 40 MHz and 32kB of FLASH memory, designed for high-performance embedded system applications.
This microcontroller comes in a 44-pin TQFP package and utilizes a through-hole mount type ensuring reliable attachment on PCB boards. It includes 1.54kB of RAM, 36 programmable input/output pins, and supports an 8-bit data bus width.
Equipped with 13 channels of 10-bit Analog-to-Digital Converters (ADC), two analog comparators, and four timers, the PIC18F4520 provides versatile control and measurement capabilities. It supports robust features including power-on reset, brown-out reset, oscillator startup and watchdog timers, perfect for embedded industrial, automotive, consumer electronics, and instrumentation applications.
The device is based on a RISC architecture with 75 instructions, extended instruction set, and a 31-level hardware stack. The microcontroller operates over a wide voltage range from 4.2 V minimum up to 5.5 V maximum, with 1W maximum power dissipation, making it efficient and reliable for demanding use cases.
Additional features include low-voltage programming, in-circuit serial programming (ICSP), and in-circuit debugging (ICD), facilitating ease of development and testing. Operates with 8-bit data bus width for embedded applications.
Features 44-pin TQFP package with through-hole mount type. Includes 1.54kB RAM and 36 programmable I/O pins. Incorporates 13 channels of 10-bit ADC for analog to digital conversion. Supports a wide operating temperature range from -40°C to 85°C.
Maximum supply voltage of 5.5V with power dissipation up to 1W. Employs RISC architecture with 75 instructions and 31 level hardware stack. Includes peripherals like enhanced capture/compare/PWM and multiple timers. Offers low-voltage programming, in-circuit serial programming, and debugging.
Ideal for industrial, automotive, and embedded control applications.
This PIC18F4520 microcontroller is a reliable choice for applications requiring moderate processing power and low energy consumption, such as motor control, communication interfaces, instrumentation, and automotive systems.
Browse the Microchip Microcontroller category on EnvMart for advanced embedded control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It features a program memory size of 32kB, utilizing FLASH memory technology.
The PIC18F4520 includes 36 programmable I/O pins, allowing for versatile interfacing options.
This microcontroller operates over a wide temperature range from -40°C to 85°C.
It comes in a 44-pin TQFP package with a through-hole mount type.
The maximum supply voltage for this model is 5.5V.
This microcontroller is equipped with 1.54kB of RAM.
It incorporates 13 channels of 10-bit Analog-to-Digital Converters (ADC).
The maximum power dissipation of this model is 1W.
It employs a RISC architecture with 75 instructions and a 31-level hardware stack.
This microcontroller includes four timers for various timing applications.
The PIC18F4520 features two analog comparators for enhanced signal processing.
