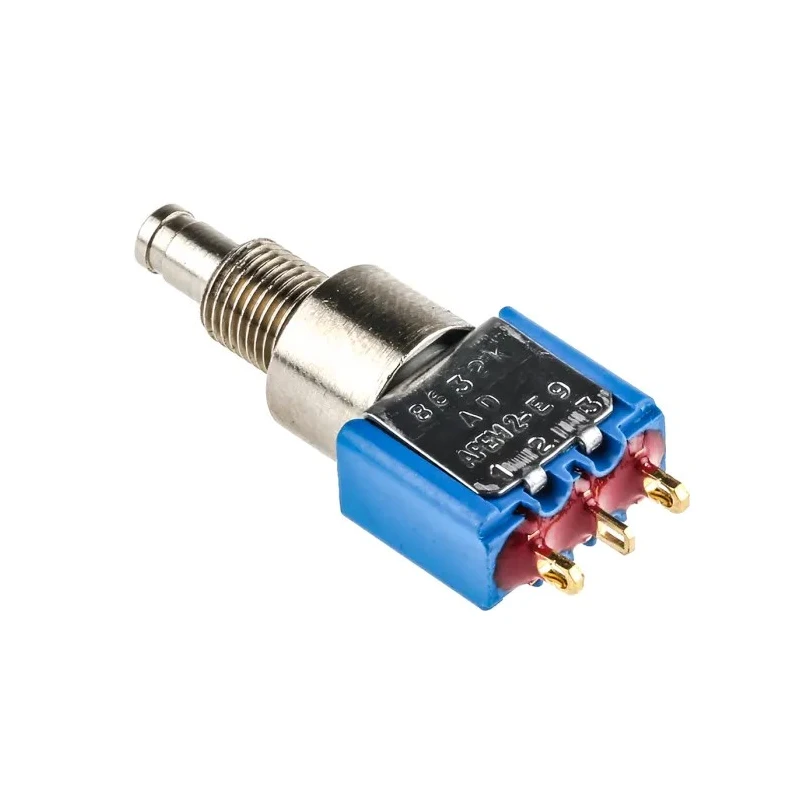

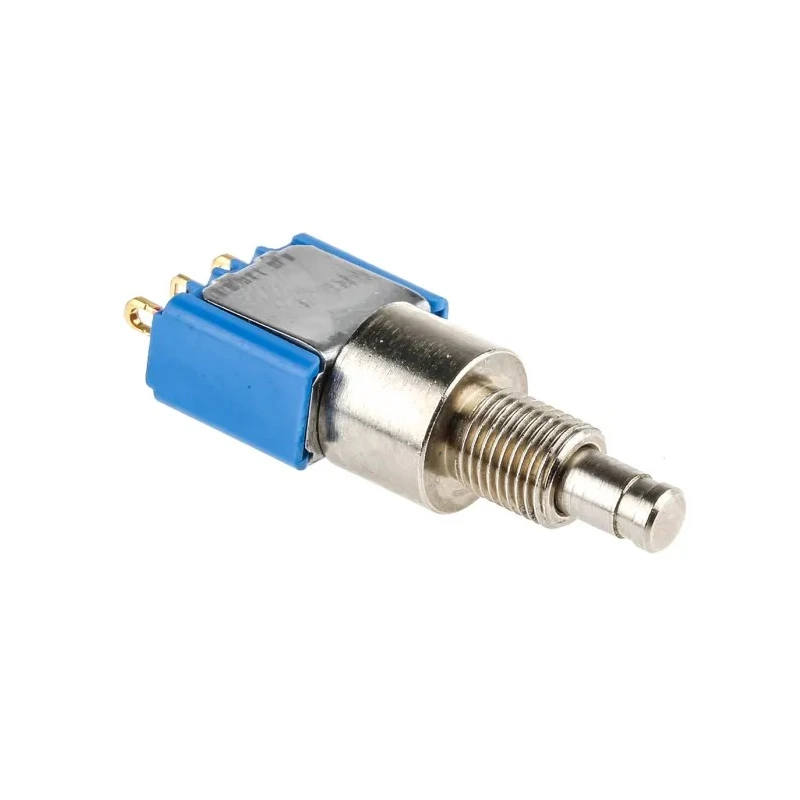

Apem 8000 Series Miniature Push Button Switch, Momentary, Panel Mount, 6.5 mm Cutout, SPDT, IP65, 30V DC 250V AC 8632ADBK

Apem 8632ADBK 8000 Series Miniature Push Button Switch is a momentary, panel-mounted push button designed for precise electrical control in industrial, automation, electrical, and commercial environments.

This switch features a high-quality stainless steel body with epoxy sealed terminals that protect internal components from environmental contaminants. Its compact design includes a 6.5 mm panel cutout for secure and versatile mounting in control panels.

The switch is configured as Single Pole Double Throw (SPDT) with momentary operation, suitable for switching 30V DC and 250V AC circuits. An IP65 rating provides dust-tight protection and resistance to water jets, making it dependable for harsh or demanding conditions.

The actuator is a nickel plated brass plunger, compatible with optional interchangeable colored caps to suit application requirements. Electrical life expectancy is rated for 30000 cycles, ensuring durability and long-term performance.

Operating temperatures range from -40°C up to 85°C, suitable for extreme environment installations. The insulation resistance of 1000 MOhm at 500 V DC enhances safety and reduces electrical leakage risks.

Switch contact current rating is 400 mA which supports a variety of signal and control functions in industrial automation, HVAC systems, and electrical equipment manufacturing. Compact stainless steel body with epoxy sealed terminals.

Momentary SPDT contact configuration for versatile switching. 6.5 mm panel cutout suitable for tight panel integration. IP65 protection against dust and water ingress. Nickel plated brass plunger actuator with interchangeable cap compatibility.

Electrical life of 30000 cycles for operational reliability. Wide temperature operating range from -40°C to 85°C. High insulation resistance of 1000 MOhm at 500 V DC. Switch contact current rating of 400 mA.

This miniature push button switch is ideal for use in industrial control panels, laboratory equipment, manufacturing automation, electrical appliances, and other commercial electrical control applications. The IP65 rating and durable construction make it suitable for environments requiring high reliability and protection against dust and moisture.
