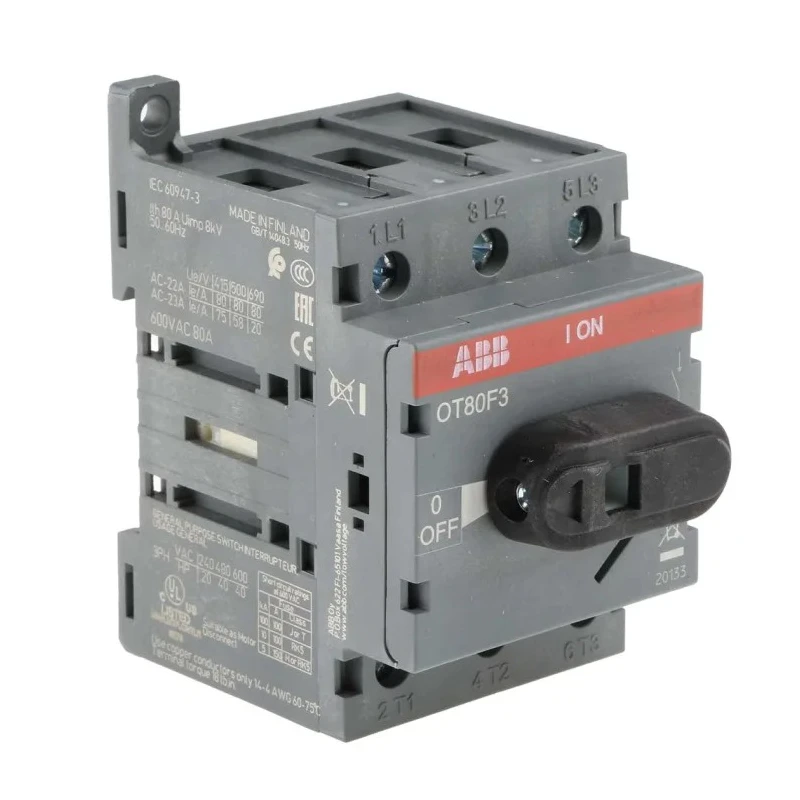

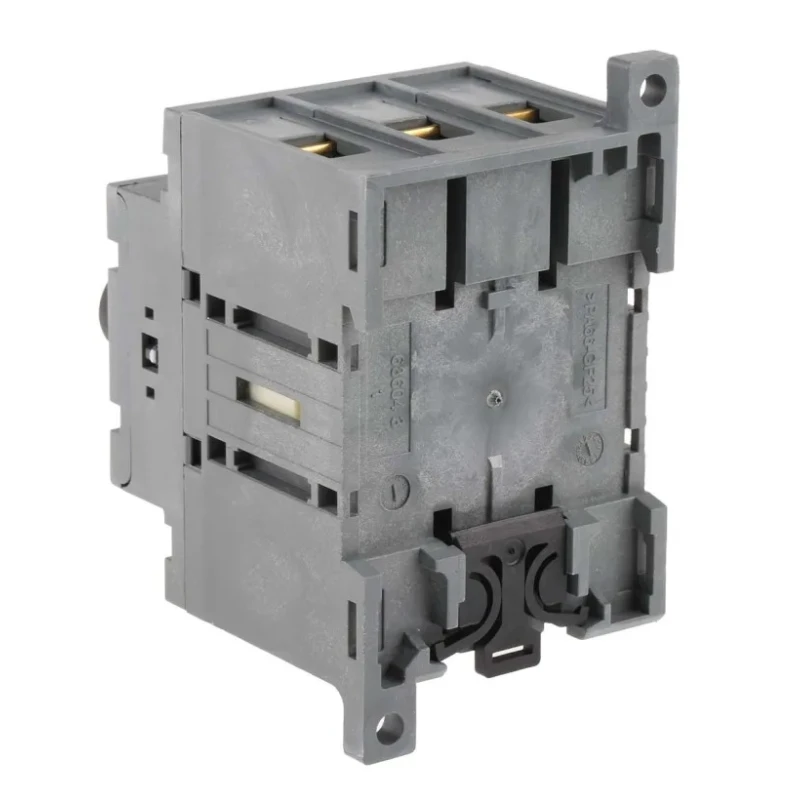

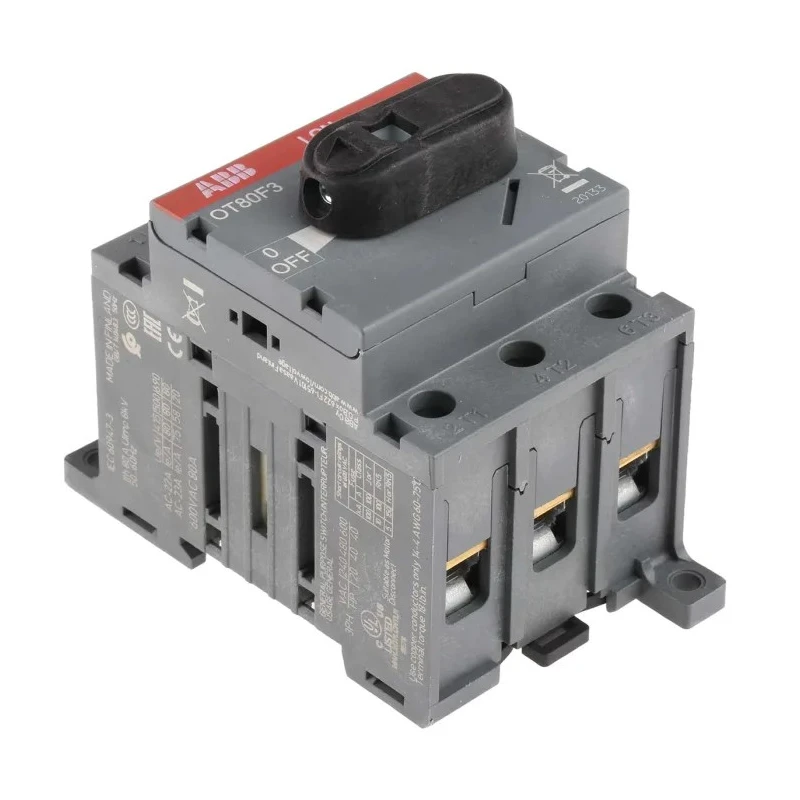

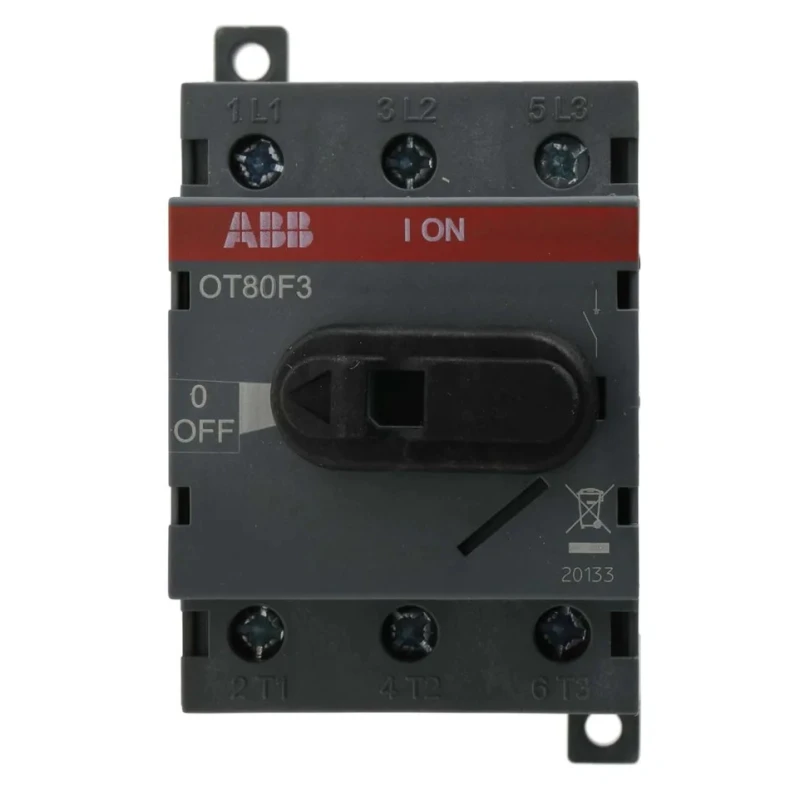

ABB 3-Pole DIN Rail Isolator Switch, IP20, 80A Current Rating, 560kW Switching Power OT80F3 1SCA105798R1001



Category Isolator Switch Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	92mm
Model	IP20
Depth	73mm
IP Rating	IP20
Width	53mm
Mount Type	DIN Rail
Series	OT
Minimum Operating Temperature	40°C
Switching Current	80A
Terminal type	Screw
Electrical Phase	3
Handle Colour	Black
Hazardous Area Certification	ATEX
Number of Poles	3
Standards/Approvals	UL, VDE, RoHS, REACH, CSA, CE, ATEX
Switching DC Voltage	1000V dc
Switching AC Voltage	690V ac
Switching Power	560kW
Rated Insulation Voltage	750V
Accessories available	extension shaft, handles, etc
ABB 3-Pole Base Isolator Switch -, IP20, 63A, 560 kWBrand	ABB

Key Features

Designed for DIN rail mounting for ease of installation.
IP20 rated for protection against touch and solid objects larger than 12mm.
Constructed with screw terminals for secure and reliable wiring.
Compact dimensions of 92mm length, 53mm width, and 73mm depth minimize space usage.
Lightweight design at approximately 250g for easy handling and minimal strain on equipment.
Rated for 3 electric poles and three-phase electrical systems.
Certified to standards UL, VDE, RoHS, REACH, CSA, CE, and ATEX for safe industrial application.
Operating temperature range from -40°C to +40°C ensures environmental durability.

Product Description

ABB OT80F3 1SCA105798R1001 3-Pole DIN Rail Isolator Switch is engineered to provide reliable isolation of electrical circuits in industrial, motor control, and generator applications. This isolator switch has an 80A current rating and supports switching power of 560kW, making it suitable for robust heavy-duty systems requiring dependable performance.

The switch features a DIN rail mount type allowing effortless installation and removal while its compact form factor of 92mm length, 53mm width, and 73mm depth ensures it adds minimal bulk to your electrical setup. Its IP20 enclosure rating offers protection against accidental contact and foreign objects larger than 12mm, enhancing operator safety during system maintenance.

Designed with 3 poles for three-phase systems and equipped with screw terminals, it guarantees secure electrical connections for long-term stability. The switch operates effectively within a temperature range of -40°C to +40°C and meets a broad range of international approvals including UL, VDE, RoHS, REACH, CSA, CE, and ATEX, making it compliant and reliable in hazardous industrial areas.

Low power loss of approximately 4.5 watts per pole ensures the isolator operates efficiently, reducing energy waste. This model supports switching voltages of up to 1000V DC and 690V AC, providing versatile application across various electrical environments.

This ABB isolator switch is essential for safely powering down circuits for maintenance or inspection without shutting off the main power supply, thereby reducing downtime and enhancing workplace safety. The device is compact, lightweight at 250 grams, and includes features like black handles and padlock compatibility exclusion, designed to meet professional industrial electrical needs.

Designed for DIN rail mounting, facilitating quick installation and removal. IP20 rating protects against direct finger contact and larger foreign bodies. Supports heavy-duty current with an 80A switching rating and 560kW power handling.

Meets rigorous international standards and certifications for safety and environmental compliance. Compact size and lightweight for easy handling and minimal space impact. Three-pole configuration suitable for three-phase electrical circuits.

Screw terminal connections allow reliable and secure wiring with standard tools. Wide operational temperature range allows use in diverse environmental conditions. Low power dissipation enhances energy efficiency of operations.

Robust construction suited for industrial applications including motor control and generator circuits.

Ideal for industrial, manufacturing, motor control centres, and generator disconnection applications. Explore our selection of high-quality Isolator Switches and other electrical components at EnvMart to suit your technical and safety requirements.
