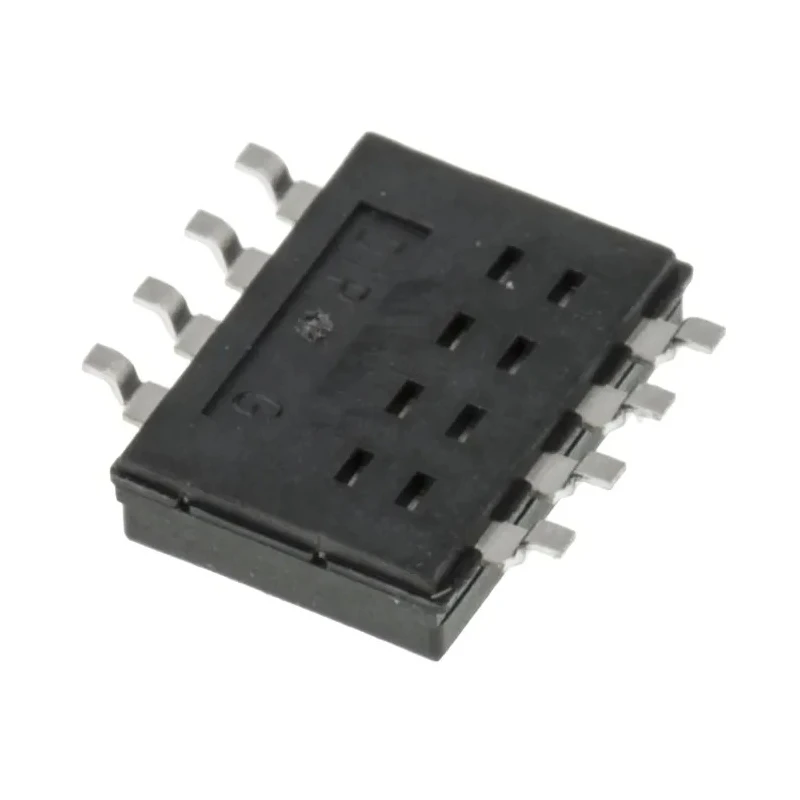

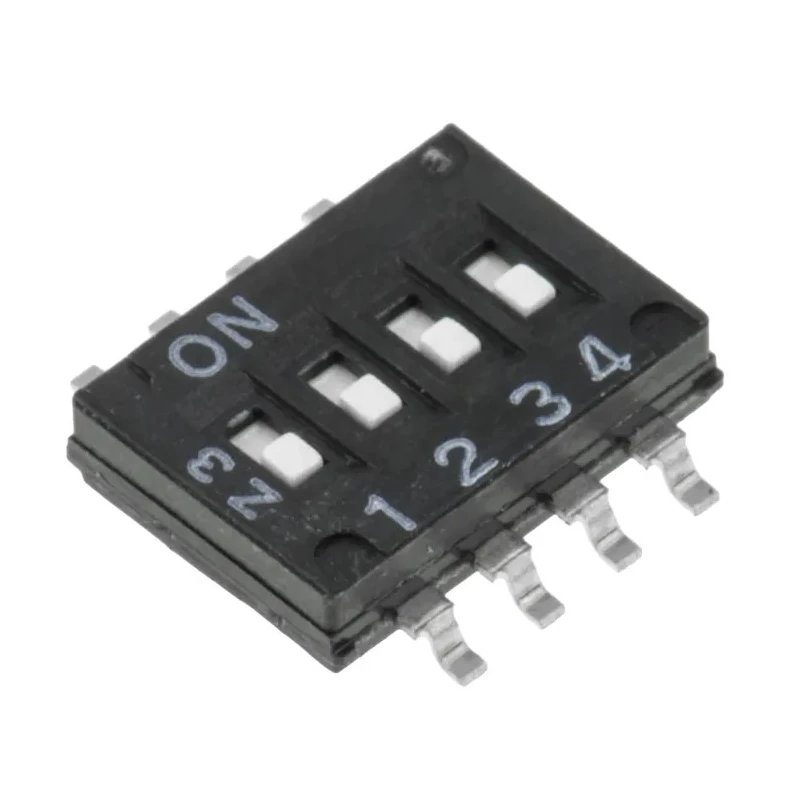

Omron Rotary Coded DIP Switch Surface Mount, Slide Actuator, Ultra Low Profile 1.55mm A6H4101
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | A6H4101 |
| Mount Type | Surface Mount |
| Actuator Type | Slide |
| Insulation resistance | 100MΩ min @ 250Vdc |
| Contact Resistance | 200mΩ |
| Mechanical Life | 1000 operations |
Key Features
- The switch features a slide actuator type for easy operation.
- Its ultra low profile of 1.55mm reduces mounting height significantly.
- Half pitch design reduces mounting space usage by 63% compared to standard designs.
- Contact resistance is low at 200 milliohms for reliable electrical performance.
- Insulation resistance is rated at minimum 100 megaohms at 250 Vdc.
- Mechanical life expectancy is 1,000 operations ensuring durability.
- Available with or without tape seal for manufacturing flexibility.
- Surface mount configuration supports modern PCB assembly processes.
Product Description
Omron A6H4101 rotary coded DIP switch is designed for compact PCB applications requiring minimal space with reliable switching performance. Featuring slide actuator type and surface mount design, this switch has an ultra low profile height of 1.55mm and a half pitch layout that reduces mounting space by approximately 63%. Its low contact resistance of 200mΩ provides efficient electrical connections, while the insulation resistance of 100MΩ min @ 250Vdc ensures excellent isolation and signal integrity.
Mechanical durability is rated for 1,000 operations, making the switch suitable for various industrial and commercial electronic applications including automation systems, instrumentation, and control panels. The component is RoHS compliant and offered with options of tape seal packaging to assist production efficiency during PCB placement processes.
Surface mounting capability aligns with modern manufacturing environments, enabling streamlined assembly and enhanced board density. This Omron switch is sourced from China and meets high standards of quality and performance typical of Omron components.
The switch is an ideal solution for compact rotary encoding requirements in electronic devices. Applications include industrial automation, instrumentation, communication equipment, and consumer electronics. Ultra low profile and half pitch features reduce PCB space consumption.
Reliable electrical characteristics support long-term stable operation. Surface mount configuration aids in automated assembly in volume manufacturing.
Choose Omron A6H4101 for advanced electronic design demanding compact, reliable Rotary Coded DIP Switching technology. Explore EnvMart’s broad range of precision switches and automation components to enhance your industrial, laboratory, or commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an ultra low profile height of 1.55mm, which significantly reduces mounting height.
The contact resistance is low at 200 milliohms, ensuring reliable electrical performance.
It has an insulation resistance rated at a minimum of 100 megaohms at 250 Vdc, providing excellent isolation.
The mechanical life expectancy of this switch is rated for 1,000 operations, indicating its durability.
This model features a slide actuator type for easy operation.
The switch is designed for surface mount configuration, suitable for modern PCB assembly processes.
Yes, it is available with or without tape seal packaging to assist production efficiency during PCB placement processes.
This switch is suitable for various applications including automation systems, instrumentation, and control panels.
The A6H4101 is sourced from China.
The half pitch design reduces mounting space usage by approximately 63% compared to standard designs, allowing for more compact PCB layouts.
The surface mount capability aligns with modern manufacturing environments, enabling streamlined assembly and enhanced board density.
Yes, this switch is RoHS compliant, meeting environmental standards for hazardous substances.
