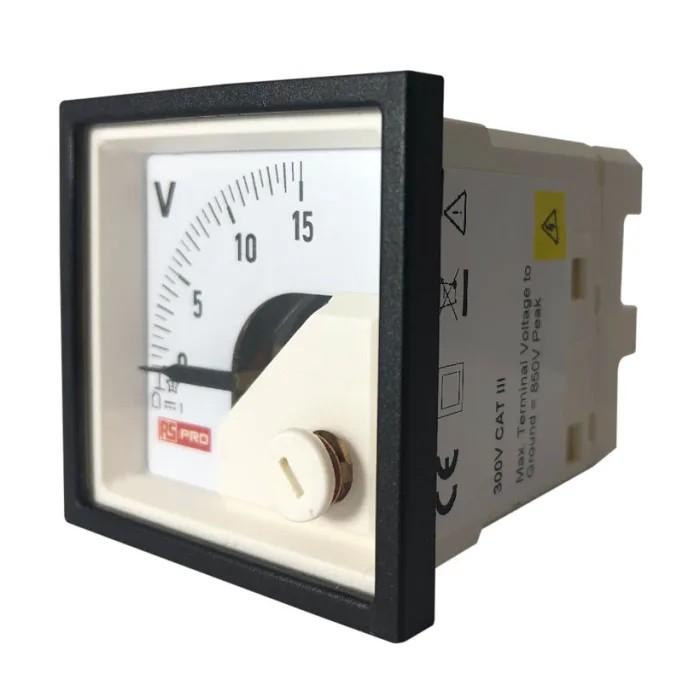

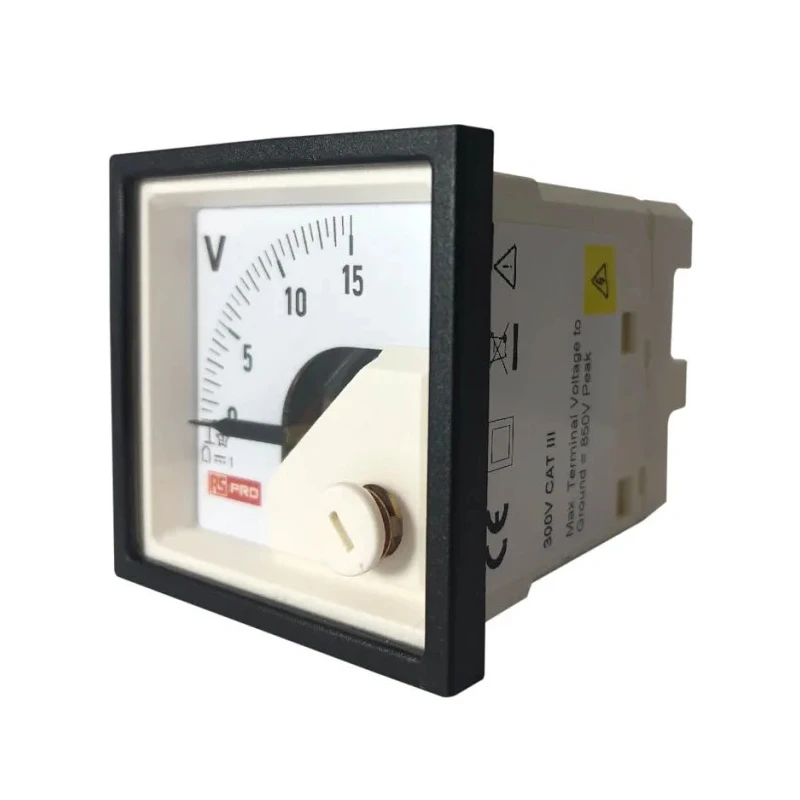

RS PRO Analogue DC Voltmeter 15mV to 600V Range, 45x45 mm Cutout 54 mm Depth 186-2482

RS PRO 186-2482 Analogue DC Voltmeter is specifically designed for industrial and process control applications requiring reliable and precise voltage measurement within the range of 15mV to 600V DC. It features a compact DIN 48 style 45 mm by 45 mm cutout and 54 mm depth for easy panel mounting in control and switchgear panels.

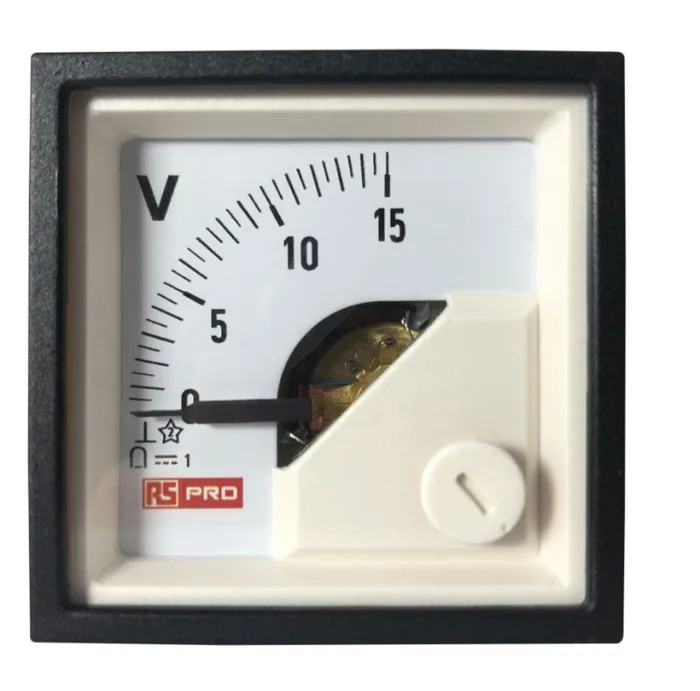

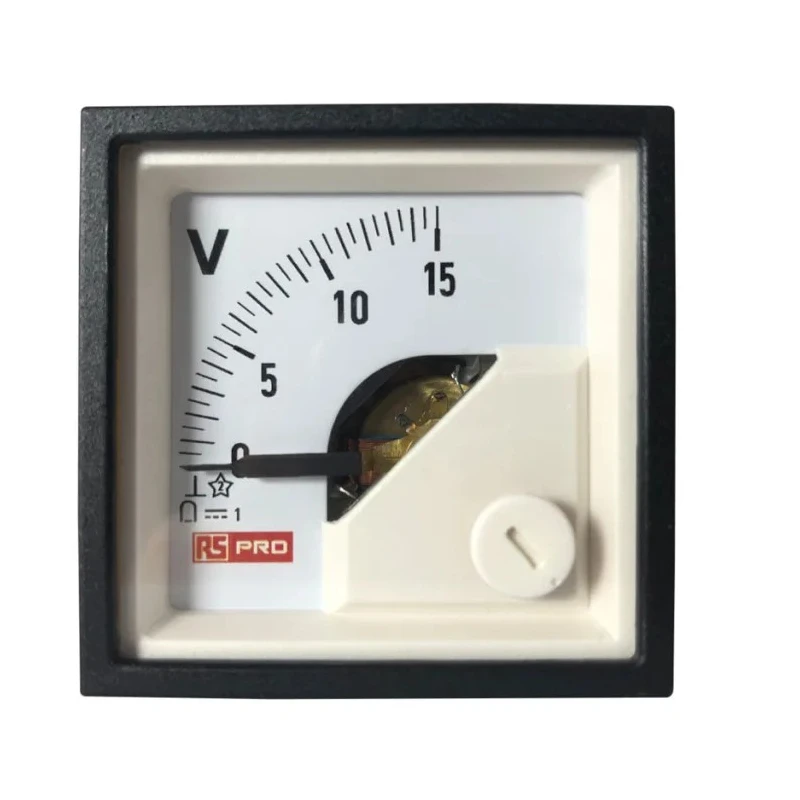

The voltmeter utilizes a permanent magnet moving coil movement comprising an aluminium coil, magnet, hairspring, jewel mechanism and a knife-edge type pointer that provides clear linear calibrated scale readings. It is suitable for accurate average voltage indication with an accuracy of 1% and pointer deflection from 0° to 90°.

The robust moulded polycarbonate casing ensures durability and electrical safety while maintaining a compact size. The instrument withstands operating temperatures ranging from -10°C to +65°C and continuous overload of 1.2 times the nominal voltage, enabling it to operate reliably in harsh industrial environments.

The device has shock resistance up to 15g for short pulse durations and tolerates relative humidity below 75% annual average in non-condensing conditions. It meets several international standards including UL 94 V-0, 2014/30/EC EMC directive, 2014/35/EC low voltage directive, CE certification, IP52 ingress protection, EN 61010, VDE 0100-410 approval, IEC 529, IEC 61010, and ISO 20653, making it compliant for industrial instrumentation use.

Equipped with a permanent magnet moving coil for precise average voltage readings. Compact DIN 48 style panel cutout of 45 mm by 45 mm and 54 mm depth. Knife-edge pointer delivering clear deflection within 0° to 90°. Durable moulded polycarbonate case suitable for control panel installation.

Wide operating temperature from -10°C to 65°C with 1% accuracy rating. Shock resistance designed to withstand industrial pulse conditions. Overload capacity at 1.2 times nominal voltage ensures reliability. Meets various industry electrical safety and performance standards.

This analogue DC voltmeter is ideal for industrial instrumentation, process control, manufacturing, electrical switchgear, and monitoring applications requiring precise DC voltage measurement on compact control panels.
