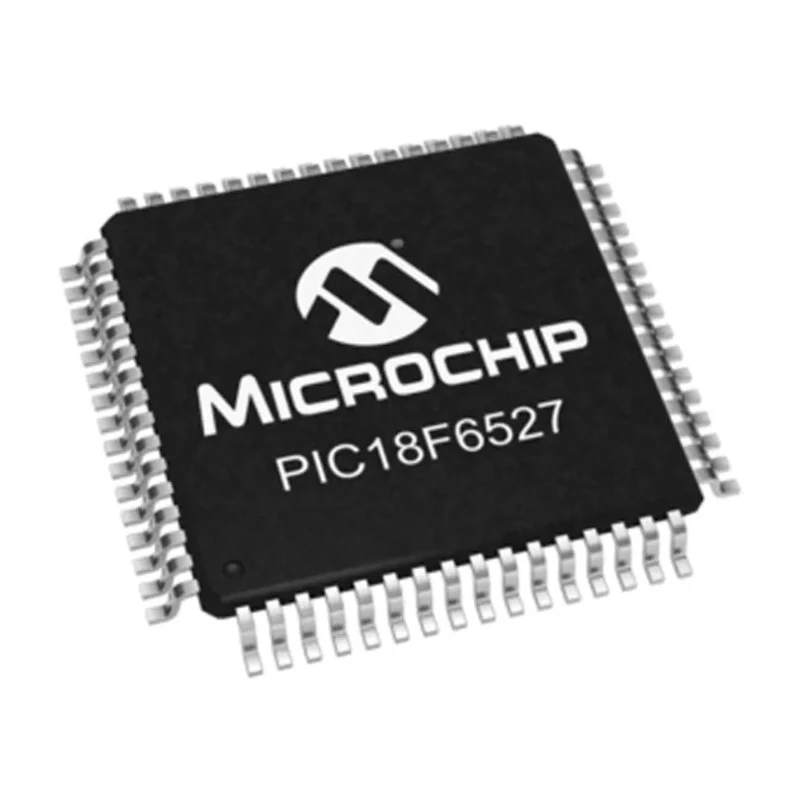

Microchip 8-bit PIC Microcontroller 64 MHz 48kB FLASH 64-Pin TQFP PIC18F6527

Microchip PIC18F6527 is a high-performance 8-bit microcontroller designed for industrial, automotive, and embedded system applications. Featuring a RISC instruction set architecture, it offers efficient processing with a maximum clock speed of 64 MHz and 48kB of FLASH memory for reliable program storage. Its architecture supports 3.94kB RAM and 1.02kB expanded memory, enabling complex data operations.

This microcontroller is housed in a 64-pin Thin Quad Flat Package (TQFP) measuring 10 mm by 10 mm with a height of 1.05 mm, optimized for surface mount technology (SMT) on printed circuit boards. The device supports SPI communication interface, providing seamless integration with various sensors and peripherals.

Designed for wide voltage operating conditions, it functions between 1.8V minimum and 5.5V maximum supply voltage with a maximum power dissipation of 1W, ensuring energy-efficient performance. It is rugged enough to operate in harsh environments with temperature tolerance from -40°C to 85°C, making it suitable for automotive and industrial control systems.

The PIC18F6527 includes 25 programmable input/output pins, 12 analog to digital converters (ADCs) with 10-bit resolution, and 2 analog comparators, offering extensive interfacing and sensor capability. Additionally, it features five timers to support complex timing and control applications.

No automotive-specific standards are certified for this model, but it is compliant with general electronics industry standards and designed primarily for embedded applications. The FLASH type memory enables multiple reprogramming cycles, which benefits development and prototyping phases. The device does not include additional approvals but meets rigorous Microchip quality and reliability criteria.

Built on PIC architecture delivering reliable 8-bit processing. Includes 48kB of FLASH program memory for efficient code storage. Operates at a maximum clock frequency of 64 MHz for high-speed applications. Features 3.94kB RAM and 1.02kB expanded memory for versatile data handling.

Designed with 25 programmable input/output pins for flexible interfacing. Supports SPI interface type for communication with peripheral devices. Operates safely between 1.8V to 5.5V supply voltage range. Includes 12 10-bit ADC channels for accurate analog measurements.

Withstands operating temperatures ranging from -40°C to 85°C for industrial use. Compact 10mm x 10mm x 1.05mm TQFP package ensures easy surface mounting.

This microcontroller is ideal for embedded systems in industrial automation, consumer electronics, communications, and automotive segments. Its comprehensive feature set coupled with moderate power dissipation and wide operating conditions make it a versatile choice for designers requiring robust and flexible microcontroller solutions.
