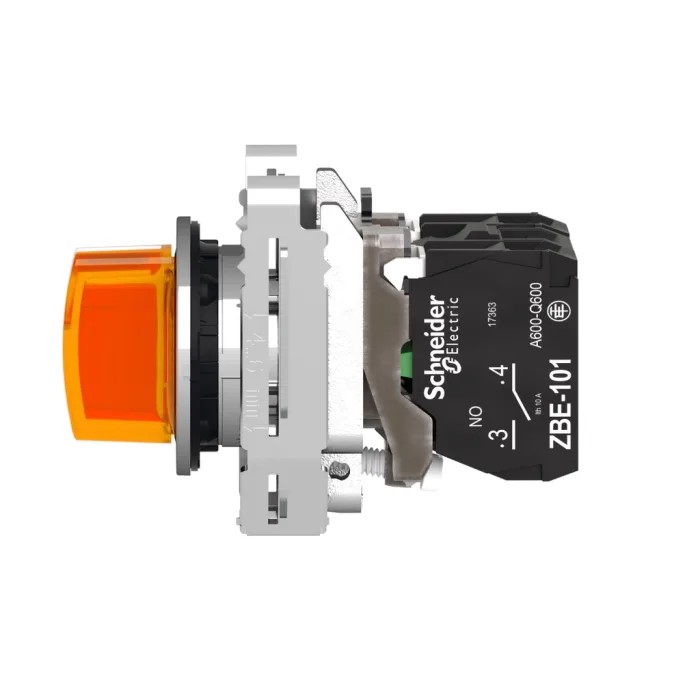

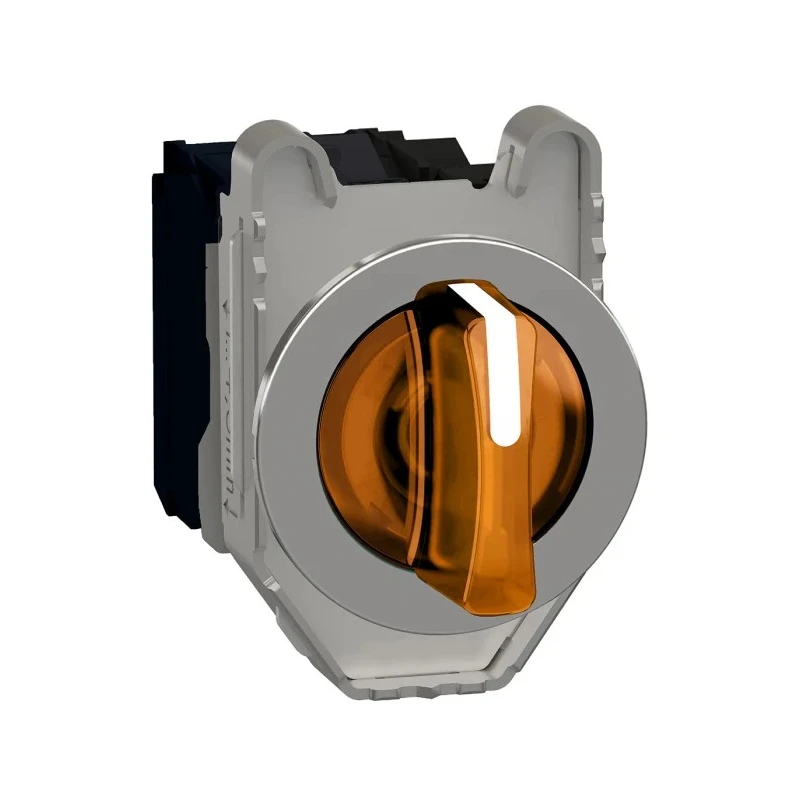

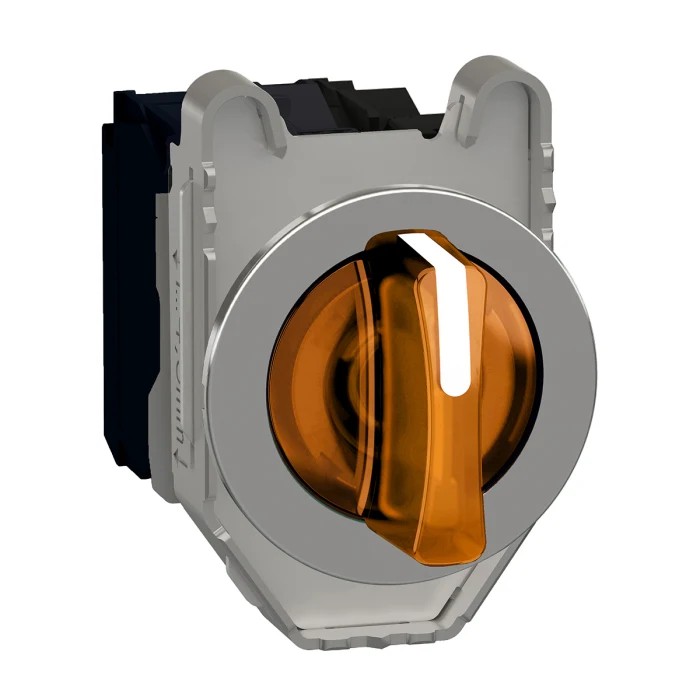

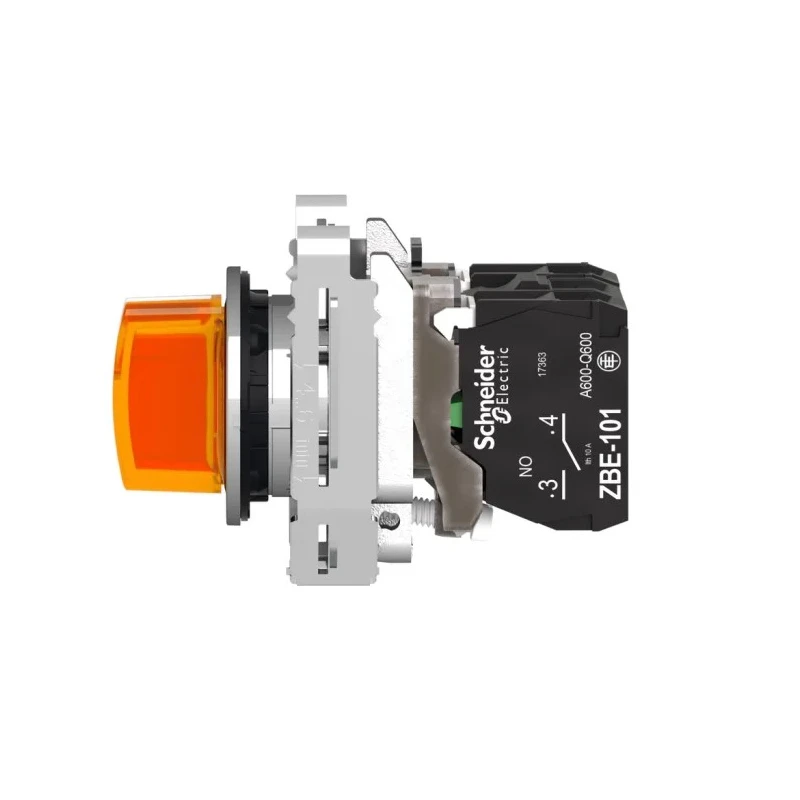

Schneider Electric Selector Switch Illuminated SPDT 3 Positions 30 mm Cutout Diameter XB4FK135B5

Schneider Electric XB4FK135B5 selector switch is an illuminated Single Pole Double Throw (SPDT) switch designed for industrial control panels and automation applications. It features a 30 mm panel cutout diameter and a flush mount design that enhances ergonomics and aesthetics.

This switch operates with a universal LED illumination source powered by 24 V AC/DC supply voltage. The orange round handle provides three stable positions with ±45° stay put operation for precise user control. Contacts comprise 1 Normally Open (NO) and 1 Normally Closed (NC) slow break types, connected via screw clamp terminals to ensure secure wiring.

The product is robust and reliable with high ingress protection ratings of IP66, IP67, IP69, and IP69K, as well as IK06 impact resistance. It meets international certifications including EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and approvals for marine environments, making it suitable for use in demanding industrial, automotive, food and beverage, mining, and water treatment sectors.

Dimensions include a height of 53 mm, width of 36.6 mm, and weight approximately 151 grams. The bezel is chromium plated and the fixing collar is made from zamak alloy for durability. Various mounting accessories such as metal circular blanking plugs, rings, spacers, protective washers, and flush mounting kits are available to facilitate easy installation.

The selector switch is designed for simplicity and speed of installation with vibration-resistant contacts and shake-proof terminal screws. It is highly modular, offering wide flexibility with multiple connection types including screw clamp, connector, Faston, spring terminal, and printed circuit board options. This makes it adaptable to a broad range of industrial and building applications requiring precise and reliable switching solutions.

Typical applications include machinery control panels, packaging, material handling, and external installations exposed to harsh environments. Schneider Electric's XB4 series ensures high performance, operator safety, and long operational life.

Set contains 1 unit of Schneider Electric XB4FK135B5 illuminated selector switch. Explore more Selector Switches and electrical components to enhance your industrial automation solutions on EnvMart. Flush mounted with a 30.5 mm mounting diameter for ergonomic design.

Features an orange standard handle with 3 positions ± 45 degree stay put operation. Rated for 24 V AC/DC supply with universal LED light source for illumination. Contact type includes 1NO and 1NC slow break contacts with screw clamp terminals.

Offers IP66, IP67, IP69, and IP69K protection resisting dust, water, and high impact. Certified with EN/IEC, CE, UL, CSA, CCC, EAC, JIS, and marine approvals. Compatible with a range of accessories such as blanking plugs, metal rings, and flush mounting kits.

Weight approximately 151 grams with compact dimensions optimized for panel cut outs.
