Schneider Electric Harmony XB4 Series Illuminated Push Button Switch Spring Return Panel Mount 30 mm Cutout SPDT XB4FW33B5

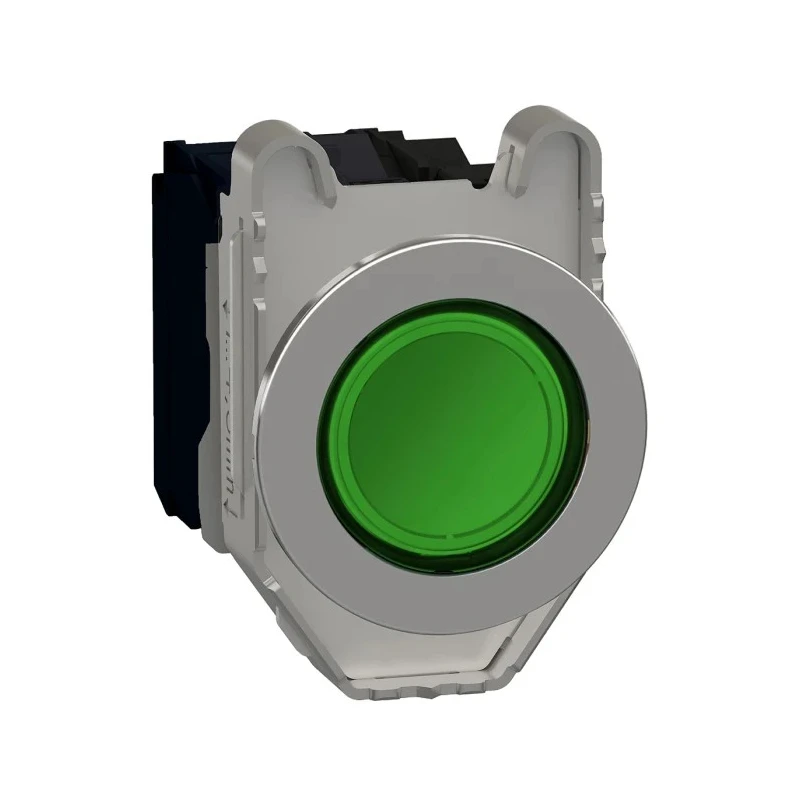

Schneider Electric XB4FW33B5 Illuminated Push Button Switch from the Harmony XB4 Series is engineered for high reliability and ergonomic panel mounting applications. The device features a spring return mechanism and a round green actuator with an illuminated integral LED, suitable for 24V AC/DC operation and SPDT contact configuration.

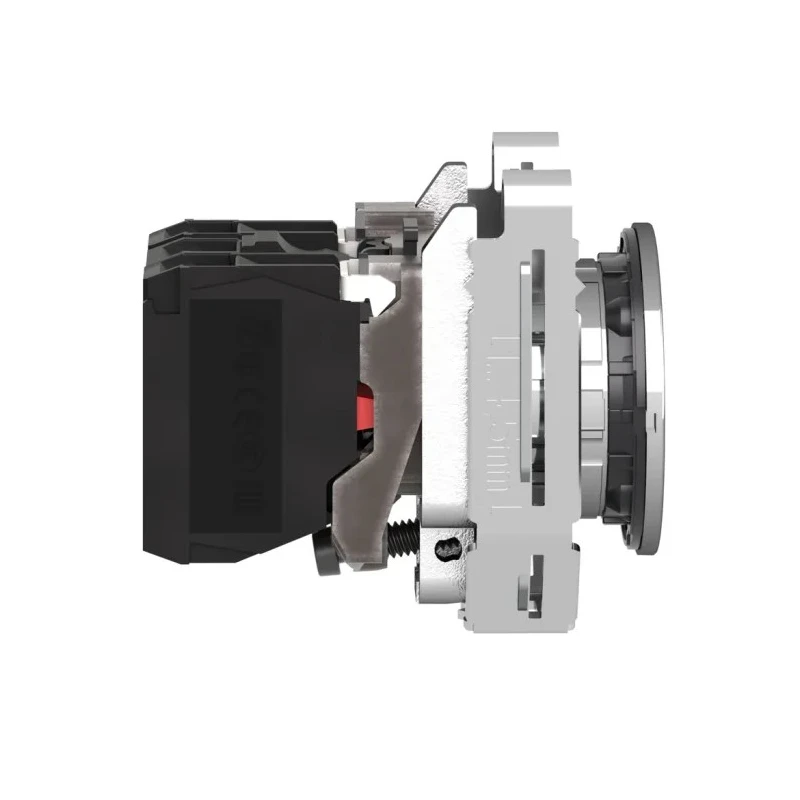

This flush-mounted push button has a panel cutout diameter of 30 mm and includes a robust chromium-plated bezel and zamak fixing collar, providing aesthetic and durable installation. With its high ingress protection ratings including IP66, IP67, IP69, and IP69K, along with IK06 impact resistance, it is well suited for challenging industrial environments.

The contact design comprises one normally open and one normally closed slow-break contact, utilizing screw clamp terminals for secure wiring. Operating temperature ranges from -40°C to 70°C make it suitable for extreme conditions. Its compact dimensions are 47 mm height, 55 mm length, and 36.6 mm width, weighing approximately 132 grams.

This push button switch is ideal for diverse industrial sectors including food and beverage manufacturing, automotive assembly lines, mining operations, water treatment plants, and building infrastructure controls. Its design includes shake-proof terminal screws to prevent vibration-induced loosening, ensuring long-term reliability.

Certified to global standards such as EN/IEC 60947 series, UL 508, CSA C22.2, CE marking, and others, the product also carries environmental compliance with RoHS, WEEE, and REACh directives. Accessories for customization include metal circular blanking plugs, metal rings, spacers, protective washers, and flush mounting kits, sold separately.

The actuator is round, green colored, and spring return type. The push button is illuminated with an integral green LED. Robust panel mount design with a chromium-plated bezel and zamak fixing collar. Rated to operate within -40°C to 70°C temperature range.

Contact configuration is 1 NO and 1 NC slow break with screw clamp terminals. IP66, IP67, IP69 and IP69K protection ensures resistance against dust, water, and impact. Designed for ergonomic and aesthetic flush mount installation.

Suitable for industrial applications including food and beverage, automotive, mining, and water treatment. Supports various connection types including screw clamp, connector, Faston connector, spring terminal, and PCB connection.

Certified to multiple standards including EN/IEC, CE, UL, CSA, CCC, EAC, JIS, NEMA, and marine approvals. Explore more Schneider Electric products and similar Push Button Switches in the Electronics & Electricals category on EnvMart for reliable industrial automation solutions.
