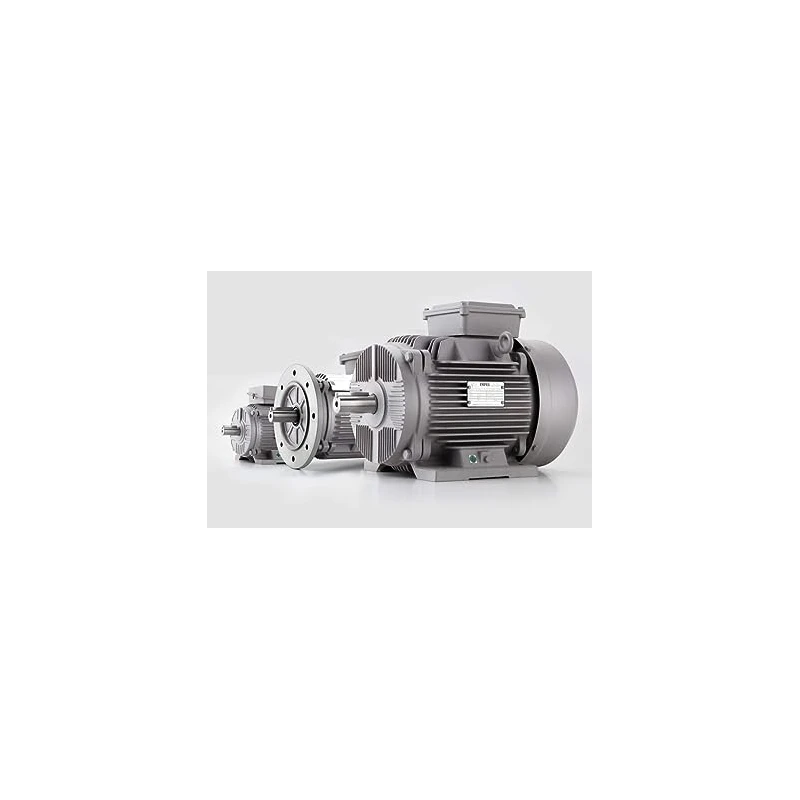

Impel 10HP 8 Pole Flange Mounting AC Induction Motor Frame Size 160L
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Flange mounting (B5) |
| Protection Type | IP44/IP55 |
| Altitude | 1000M above sea level |
| Power Rating (kW) | 7.5 kW |
| Power (HP) | 10 HP |
| Motor Type | TEFC Squirrel Cage A C Induction Motor |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 750 RPM |
| Series | IE2 |
| No. of Poles | 8 |
| Duty Type | S1 |
| Shaft Dia (mm) | 42 mm |
| Class of insulation | F |
| Frame Size (ISI) | 160L |
| Temperature rise | Limited to class B |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 10HP 8 Pole Flange Mounting AC Induction Motor Frame Size 160L From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 10 HP (7.5 kW).
It features flange mounting (B5).
The rated speed is 750 RPM.
It operates at a voltage of 415V with a tolerance of ±10%.
The frequency is specified as 50Hz ±5%.
This model has a protection type rating of IP44/IP55.
The body is made of cast iron.
The maximum ambient temperature for operation is 50 ºC.
It can operate at altitudes up to 1000 meters above sea level.
This induction motor has 8 poles.
The motor has a class F insulation rating.
The duty type is classified as S1.
