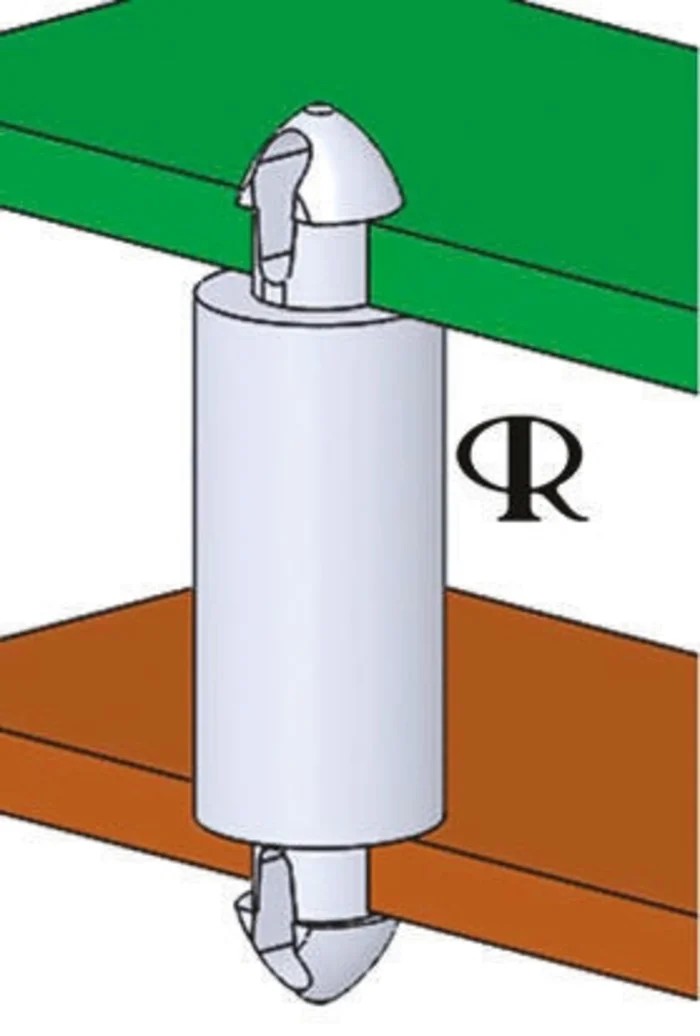

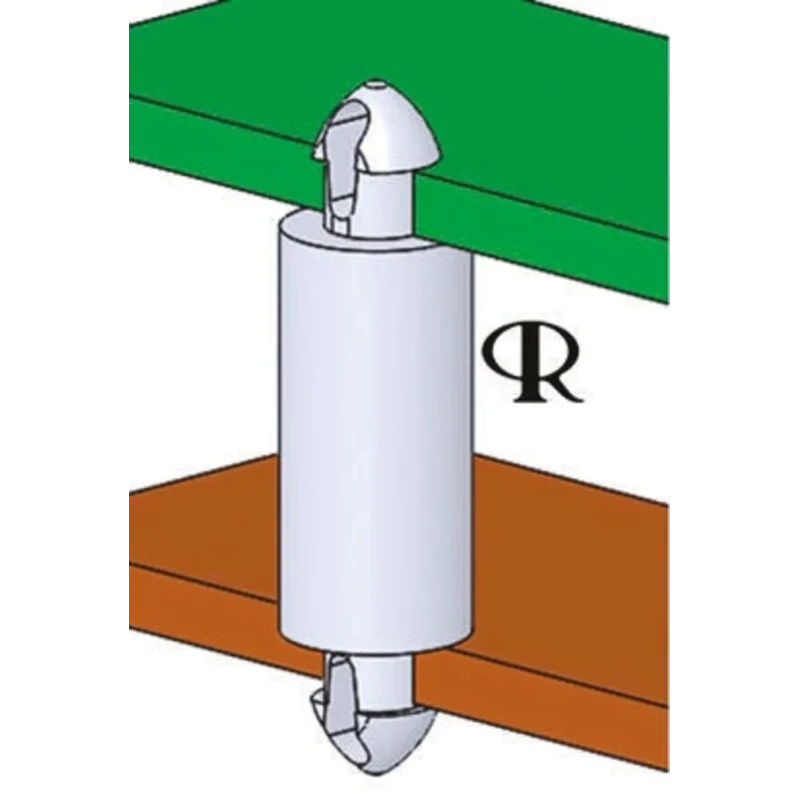

Essentra Nylon PCB Post Dual-Locking 16 mm Height 20 mm Overall Height 2.5 mm PCB Hole MDLSP1-16M-01
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Essentra |
| Material | Nylon |
| Colour | Natural |
| Height | 16mm |
| Model | MDLSP1-16M-01 |
| Overall height | 20mm |
| Standards/Approvals | RoHS |
| PCB Hole Diameter | 2.5mm |
| PCB Thickness | 1.65mm |
| Support Base Width | 4.6mm |
Key Features
- Constructed from natural Nylon 66 for durability.
- 16 mm height with 20 mm overall height for versatile PCB support.
- Designed for 2.5 mm diameter PCB holes and 1.65 mm PCB thickness.
- 4.6 mm support base width provides stable board mounting.
- Dual-locking mechanism requires no fixing screws and allows hand release.
- RoHS compliant, ensuring environmentally friendly materials.
- Manufactured in the United Kingdom with high quality standards.
Product Description
Essentra MDLSP1-16M-01 is a high-quality nylon PCB post designed for secure and efficient printed circuit board support applications. This dual-locking post is constructed from Nylon 66 in a natural color, offering robust mechanical strength and environmental resistance suitable for electronic manufacturing environments.
The product features a 16 mm height and an overall height of 20 mm, making it suitable for a broad range of PCB thicknesses, specifically designed for boards with a thickness of 1.65 mm and PCB holes of 2.5 mm diameter. The 4.6 mm support base width ensures stability when mounting the PCB, reducing mechanical stress and vibration impact.
Its dual-locking design enables the post to securely snap into place both on the chassis and the PCB without requiring additional fixing screws. This feature facilitates quick assembly and disassembly, as the post can be manually released when needed.
The product meets RoHS standards, confirming compliance with environmental directives and ensuring the use of safe material compositions. Manufactured in the United Kingdom, this PCB post upholds strict quality control measures appropriate for industrial, electronics manufacturing, prototyping, and laboratory applications.
Natural Nylon 66 material for durability and electrical insulation. 16 mm height with 20 mm overall length fits standard PCB thicknesses. Designed for 2.5 mm PCB hole diameter and 1.65 mm board thickness. 4.6 mm base width for strong support and stability.
Easy to install and remove without screws due to dual-locking mechanism. RoHS compliant and environmentally safe. Manufactured in the United Kingdom.
This Essentra MDLSP1-16M-01 PCB post is ideal for electronic assembly, prototyping, manufacturing environments, and applications requiring reliable and repeatable circuit board supports. Browse the Electronics & Electricals section at EnvMart for more high-quality PCB components and accessories.
Explore more products in our PCB Supports category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The height of this PCB post is 16 mm, with an overall height of 20 mm.
It is designed for PCB holes with a diameter of 2.5 mm.
This model supports PCBs with a thickness of 1.65 mm.
It is constructed from natural Nylon 66, providing durability and electrical insulation.
The support base width of this PCB post is 4.6 mm, ensuring stable mounting.
The dual-locking mechanism allows the post to securely snap into place on the chassis and PCB without the need for additional fixing screws, enabling quick assembly and disassembly.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This PCB post is manufactured in the United Kingdom, adhering to high quality standards.
It is suitable for electronic assembly, prototyping, manufacturing environments, and applications requiring reliable circuit board supports.
Yes, the dual-locking design allows for easy installation and removal without screws.
Key features include its dual-locking mechanism, support for specific PCB dimensions, and RoHS compliance, all contributing to its suitability for various electronic applications.
The overall height of the post is 20 mm.
