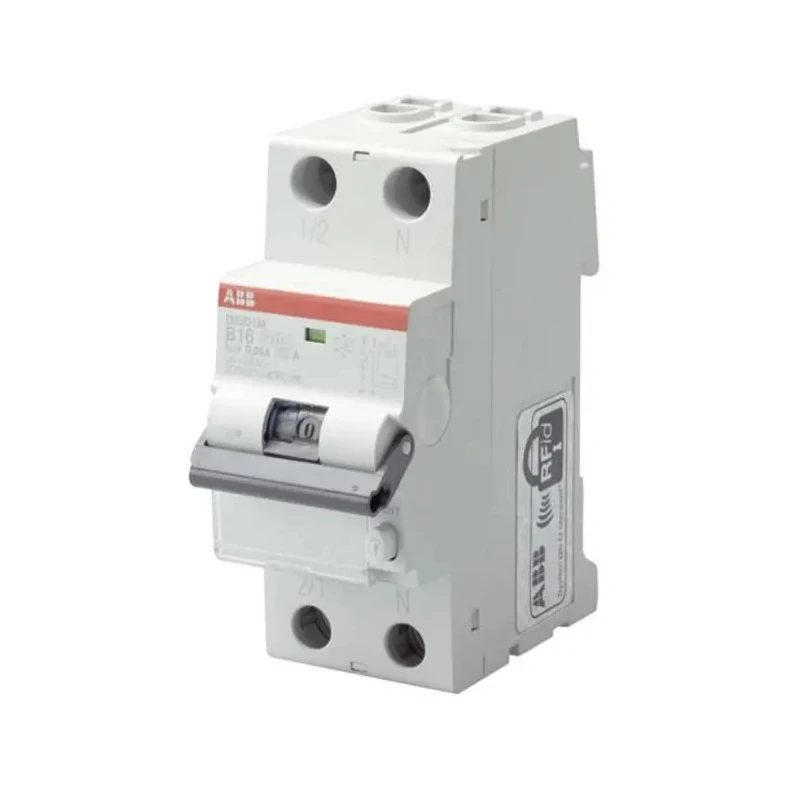

ABB Residual Current Circuit Breaker with Overload Protection, 20A Current Rating, 1-Pole, 300 mA Trip 2CSR245041R3204



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	DS201
Brand	ABB
Height	85mm
Model	2CSR245041R3204
Depth	69mm
Width	35mm
Mount Type	DIN Rail
Current Rating	20A
Series	DS201
Breaking Capacity	4.5kA
Number of Poles	1
Rated AC Voltage	230V ac
Tripping Characteristics	Type C
Trip Sensitivity	300mA
Earth Leakage Protection Type	AC

Key Features

Designed to protect end-user single-phase circuits against overload and short-circuit currents.
Features 300 mA trip sensitivity for effective earth leakage protection.
Type C tripping characteristics suitable for general applications.
Compact DS201 series device with DIN rail mount for easy installation.
Complies with IEC 61009 and EN 61009 standards for safety and performance.
Robust build with dimensions 85mm height, 35mm width, and 69mm depth.
Breaking capacity of 4.5kA ensures strong fault resistance.
Earth leakage protection type AC for sinusoidal alternating earth fault detection.

Product Description

ABB 2CSR245041R3204 Residual Current Circuit Breaker with Overload Protection is a 1-pole plus neutral (1P+N) device designed to safeguard single-phase electrical circuits against overload, short-circuits, and earth leakage currents. Operating at a rated current of 20A and rated AC voltage of 230V AC, this breaker provides precise protection with 300 mA trip sensitivity.

This device belongs to the DS201 series, a compact solution consisting of two modules ideal for installations requiring neutral on the left. It features Type C tripping characteristics, making it suitable for general power distribution applications where selective tripping is required.

Designed for DIN rail mounting, the breaker measures 85mm in height, 35mm in width, and 69mm in depth, enabling easy integration into electrical panels. Its breaking capacity of 4.5kA guarantees reliability during fault conditions and ensures enhanced safety for connected equipment.

Built to conform with IEC 61009-1, IEC 61009-2-1 and their EN equivalents, it meets strict international safety and performance standards. The earth leakage protection type AC detects sinusoidal alternating fault currents effectively to prevent indirect and direct contact hazards.

Manufactured in Italy, this ABB Residual Current Circuit Breaker offers industrial-grade quality, suitable for use in residential, commercial, and industrial electrical installations where overload and earth leakage protection are critical.

Protects single-phase circuits from overload and short-circuits. 300 mA earth leakage trip sensitivity enhances safety. Type C tripping characteristic for versatile application. Compact size supports DIN rail mounting. IEC and EN certified for compliance assurance.

4.5kA breaking capacity for effective fault interruption. AC type earth leakage protection for sinusoidal faults. Italian origin guarantees manufacturing quality. Explore our selection of electrical circuit protection devices at EnvMart for comprehensive safety and reliability in your electrical installations.
