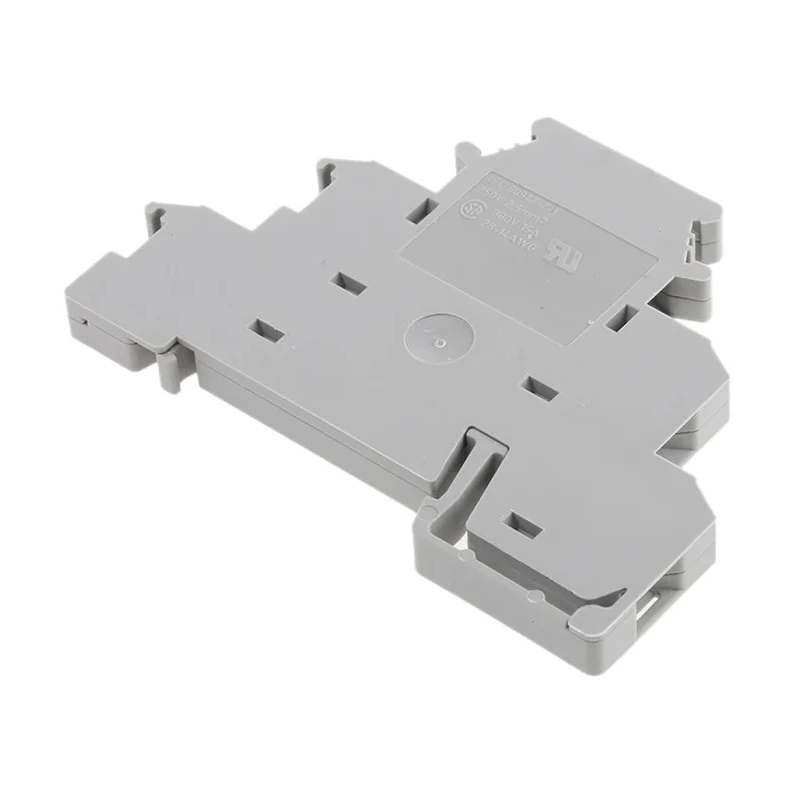

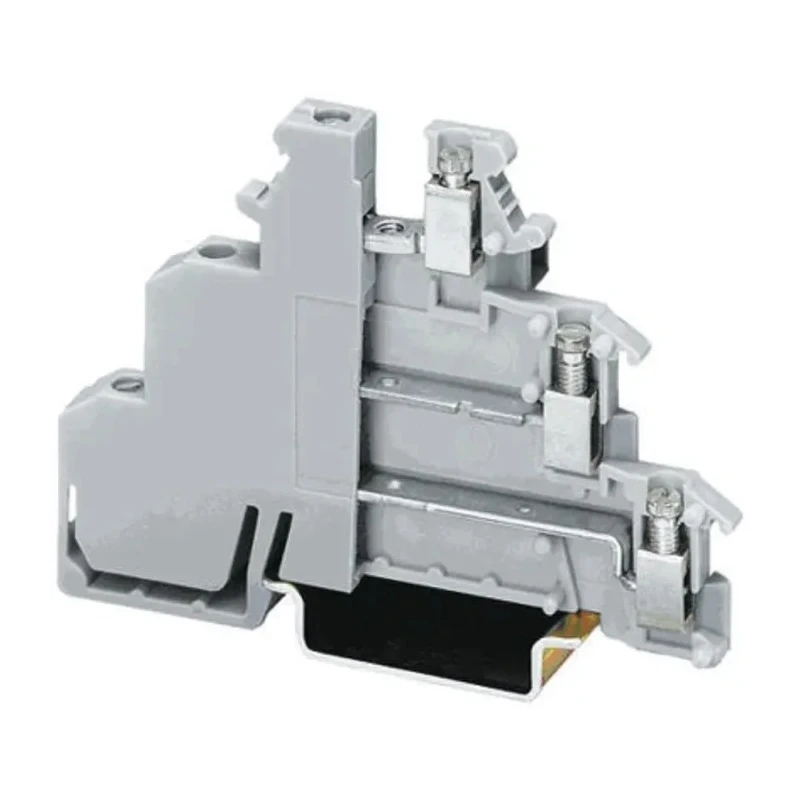

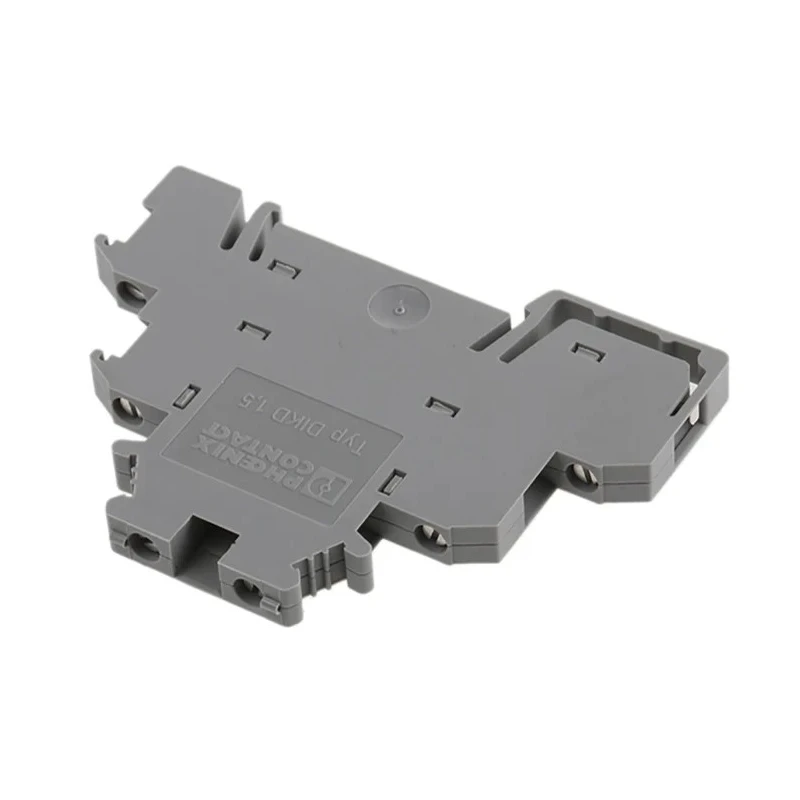

Phoenix Contact DIKD 1.5 Series DIN Rail Terminal Block 3-Level Screw Connection Grey 250V 24A 2715979
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 250V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 2715979 |
| Series | DIKD 1.5 |
| Termination Type | Screw |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 3 |
| Sub Type | Sensor/Actuator |
| Minimum Operating Temperature | -60°C |
| Standards/Approvals | CSA |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 0.2, 4mm² |
| Terminal Block Current | 24A |
Key Features
- Compatible with wire sizes ranging from 24 AWG to 12 AWG for flexibility.
- Rated for 24A current and 250V voltage for reliable power distribution.
- Constructed with a durable grey polyamide housing providing electrical insulation and impact resistance.
- Supports operation in extreme temperatures from -60°C to 105°C, meeting DIN EN 60216-1 thermal endurance standards.
- Features three-level wiring capability to simplify connection of sensors and actuators in control cabinets.
- Designed for mounting on flat top hat rails conforming to DIN EN 50 022 standards.
- Provides protection against power surges with a rated surge voltage of 4kV.
- Suitable for industrial, telecommunications, process control, and lighting control system applications.
Product Description
Phoenix Contact 2715979 DIKD 1.5 Series DIN Rail Terminal Block is a 3-level screw connection terminal block designed for mounting on flat top hat DIN rails. Rated at 24 amperes and 250 volts AC/DC, this terminal block is ideal for connecting sensors and actuators in industrial and telecommunication settings.
The terminal block accepts wires from 0.2 mm² up to 4 mm² cross-sectional area, corresponding to 24 to 12 AWG, providing versatile wiring options. It features a robust grey polyamide housing that offers excellent electrical insulation and mechanical impact resistance, ensuring operator safety and longevity of installation.
Engineered to withstand harsh environments, it meets the DIN EN 60216-1 thermal endurance standards, with an operating temperature range from minus 60°C to plus 105°C. The block also supports a rated surge voltage of 4 kilovolts, protecting connected devices from power surges.
The three-level design allows parallel connection of up to three wires to one terminal, simplifying complex wiring needs in modern machine controls and control cabinets. With its secure screw termination system, it guarantees reliable and vibration-resistant electrical connections even in demanding industrial conditions.
Accepts wire sizes 24 AWG to 12 AWG for broad compatibility. Rated for 24A current at 250V voltage for dependable performance. Durable polyamide housing offers impact and electrical insulation protection. Wide operating temperature range from −60°C to 105°C for thermal endurance.
Three-level terminal design simplifies wiring of sensors and actuators. Meets DIN EN 50 022 mounting standards for flat top hat rails. Rated surge voltage of 4kV protects against electrical surges. Screw termination ensures secure and stable connections.
This terminal block is suited for industrial automation, manufacturing, telecommunications, HVAC, water treatment, and process control systems where reliable sensor and actuator connections are critical. The product is manufactured in Poland maintaining high quality standards.
Explore the Phoenix Contact range of DIN Rail Terminal Blocks at EnvMart for dependable electrical connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum current of 24A.
This model can handle a voltage of up to 250V.
The operating temperature range is from -60°C to 105°C.
It accepts wire sizes ranging from 24 AWG to 12 AWG, corresponding to a cross-sectional area of 0.2 mm² to 4 mm².
This terminal block features a three-level design, allowing for the connection of up to three wires to one terminal.
It uses a screw termination type for secure connections.
It meets CSA standards and is designed for mounting on flat top hat rails conforming to DIN EN 50 022 standards.
It has a rated surge voltage of 4kV, providing protection against power surges.
The housing is constructed from grey polyamide, providing electrical insulation and impact resistance.
It is manufactured in Poland.
It is suitable for industrial automation, telecommunications, process control, and lighting control systems.
