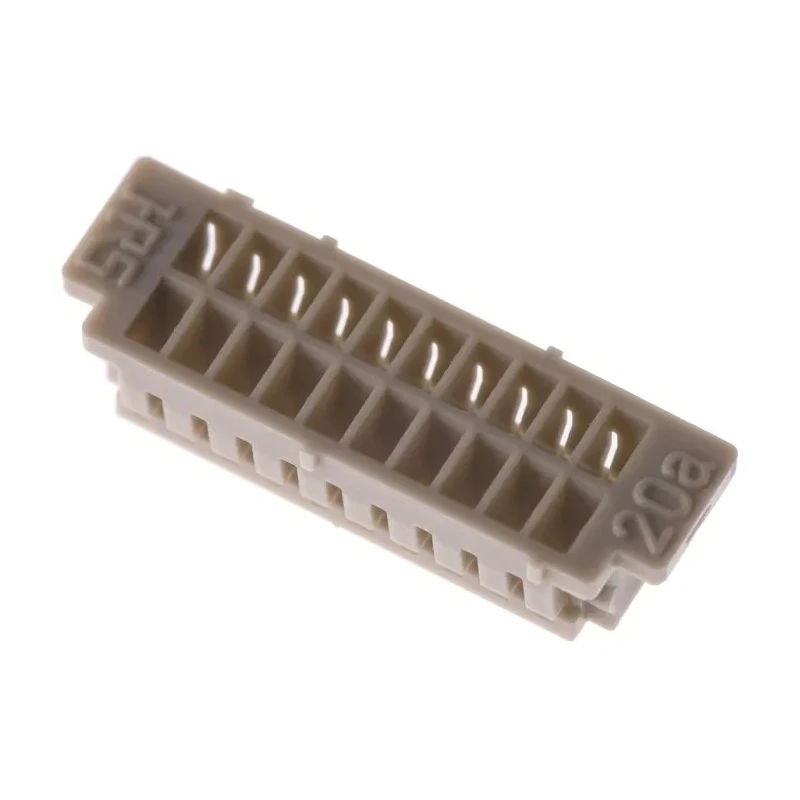

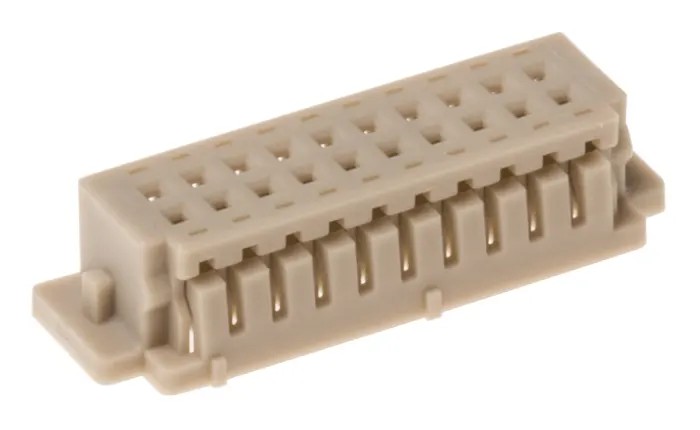

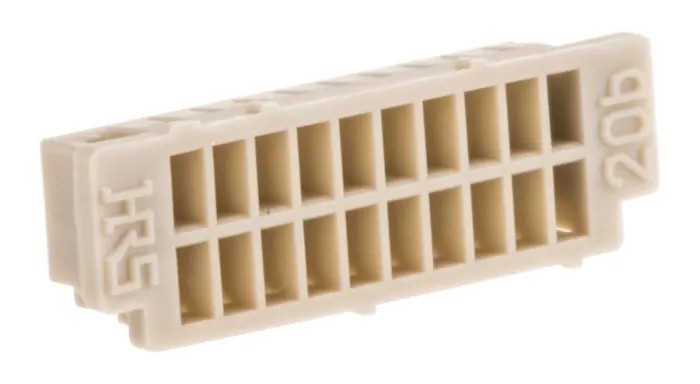

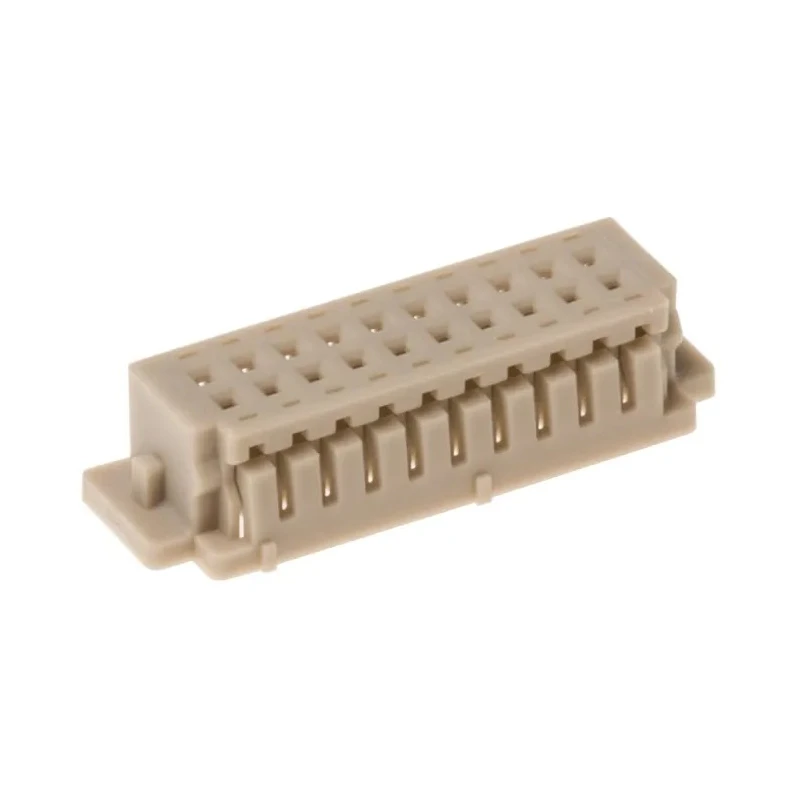

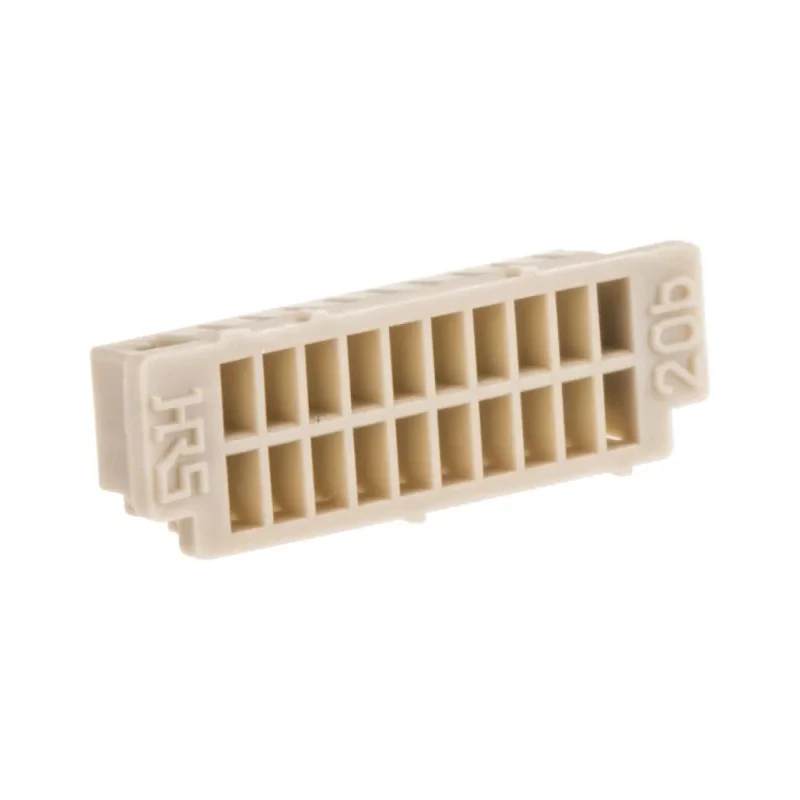

Hirose DF13 Female Connector Housing 1.25 mm Pitch 20 Way 2 Row Straight
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 16.65mm |
| Model | DF13 |
| Width | 5.2mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF13 |
| Number of Rows | 2 |
| Pitch | 1.25mm |
| For Use With | DF13 Series |
| Number of Contacts | 20 |
| Connector Gender | Female |
Key Features
- Miniature 1.25 mm pitch connector housing designed for compact electronic assemblies.
- 20 contact positions arranged in a 2-row straight configuration.
- Cable mount type suitable for use with DF13 series connectors.
- Constructed from durable polyamide housing material for reliable insulation.
- Polarisation slots and friction locking mechanism ensure secure and correct mating.
- Typical applications include digital cameras, LCD displays, DVRs, and measurement devices.
- Compact length of 16.65 mm and width of 5.2 mm optimizes space usage.
Product Description
Hirose DF13-20DS-1.25C female connector housing is a high-quality miniature connector designed for electronic devices requiring multiple signal connections in a compact form factor. Featuring a 1.25 mm pitch and 20-way contact arrangement in two rows, this cable mount connector is ideal for applications such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and various measurement instruments.
The connector housing is constructed from robust polyamide material that offers excellent insulation and durability. Its polarisation slots prevent incorrect insertion during assembly, while the friction locking mechanism secures the mating connection reliably. The straight orientation and compact dimensions (16.65 mm length by 5.2 mm width) lend it suitability for dense mounted PCB layouts where space saving is critical.
The DF13 series connector housings provide 30% higher density in double row configurations compared to single row variants, making this 20-way 2-row connector an efficient solution for signal-intensive electronics manufacturing.
Miniature 1.25 mm pitch size for space-constrained applications. 20-way female contacts distributed in two rows to maximize density. Cable mount type with straight orientation for versatile assembly. Durable polyamide housing ensures mechanical and electrical reliability.
Polarisation and friction lock features enhance mating security and prevent misalignment. Widely used in consumer electronics, automotive electronics, and industrial measurement devices. Compact form factor aids efficient PCB layout and device miniaturization.
Manufactured in Japan to high-quality standards, the Hirose DF13-20DS-1.25C is a dependable choice for electronics engineers and manufacturers seeking a reliable female connector housing solution.
Explore the comprehensive selection of electronics components and Connectors at EnvMart to find compatible parts for your projects and production lines.
