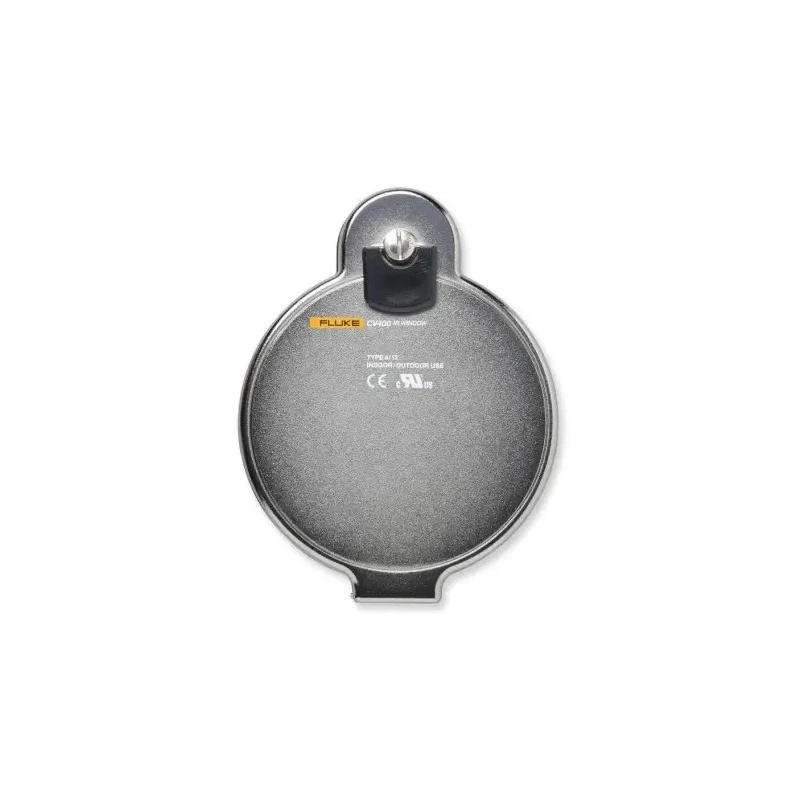

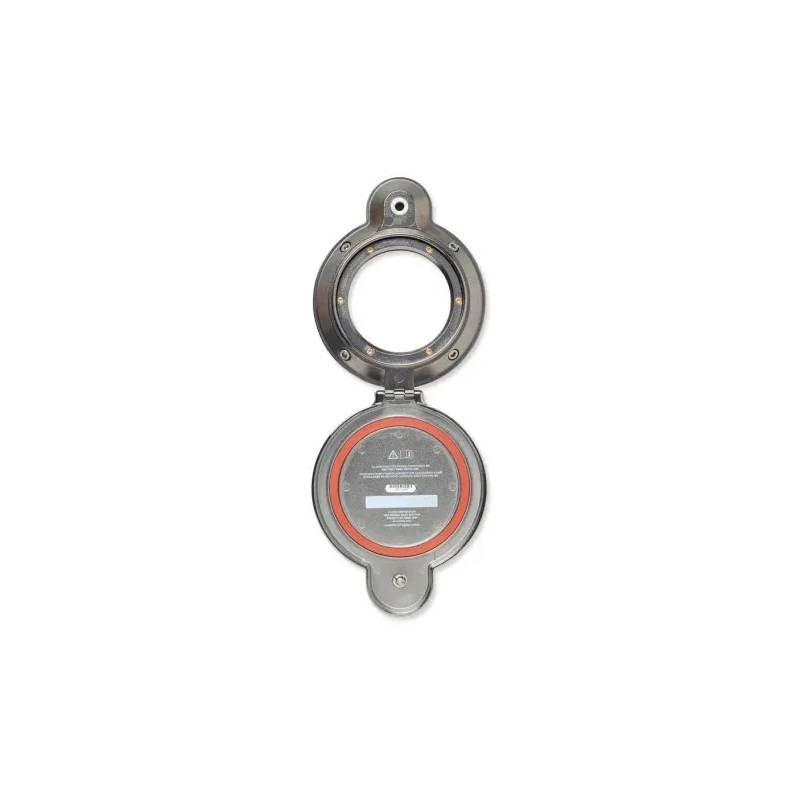

Fluke Inspection Window for Use with NEMA 4 Enclosure, NEMA 12 Enclosure FLUKE-CV400

Fluke FLUKE-CV400 Inspection Window is engineered as a sealed, flush-mounted viewing port suitable for NEMA 4 and NEMA 12 electrical enclosures. It facilitates thermal imaging and visual inspections without the need to remove enclosure panels, enhancing safety and efficiency in industrial and commercial electrical installations.

This inspection window is designed for environments requiring durable and reliable inspection solutions, suitable for both indoor and outdoor applications. Its arc-tested capability at 63 kA for 30 cycles provides enhanced personnel protection during electrical inspections, making it ideal for high-risk industrial settings.

The unit operates effectively within a broad temperature range from -40°C up to +232°C, ensuring performance in harsh environmental conditions. Installation is simplified with a single-hole front mount combined with the AutoGround™ feature, which guarantees a quick, secure fit and reliable electrical grounding via jam-nut teeth that create multiple gas-tight connections.

The inspection window complies with several rigorous standards, including CE, CSA, UL recognitions, and meets the IEC 60529 IP67 ingress protection rating, certifying its robust protection against dust and water ingress. Its certification to IEEE C37.20.7 and KEMA testing further confirms its suitability for demanding electrical enclosure environments.

This product is ideal for use as a panel inspection window in control cabinets and is suitable for metal enclosure window replacements. By allowing inspections without panel removal, it reduces downtime, enhances safety procedures, and eliminates the need for extensive PPE and work permits during inspection tasks.

Designed for NEMA 4 and NEMA 12 enclosures for indoor and outdoor use. Arc-tested at 63 kA for high personnel safety. Wide operating temperature range of -40°C to +232°C. Single-hole front installation with AutoGround™ for fast and safe deployment.

Certified to CE, CSA, UL, and IEC 60529 IP67 standards for robust protection. Ideal for metal enclosure inspection window replacements and control cabinet panels. Instant earthing via AutoGround™ ensuring electrical continuity and grounding.

Fluke’s FLUKE-CV400 is the preferred inspection window accessory for industries requiring reliable and safe viewing solutions for electrical enclosures. It supports thermal imaging camera accessories for temperature measurements and enhances overall operation safety. Explore the Electronics & Electricals category at EnvMart for a complete range of electrical enclosure accessories and Inspection Windows.
