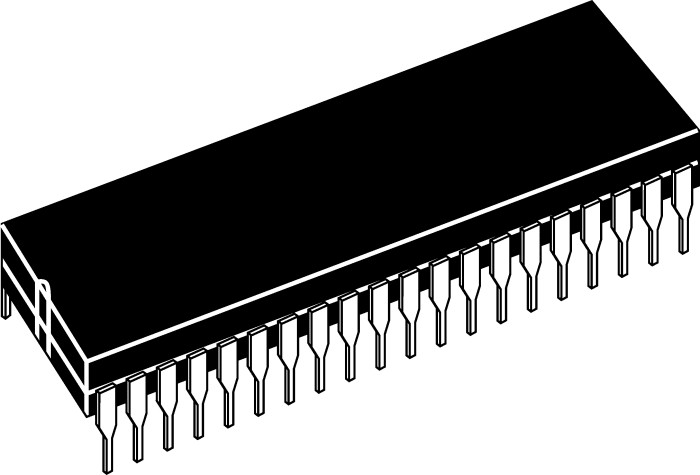

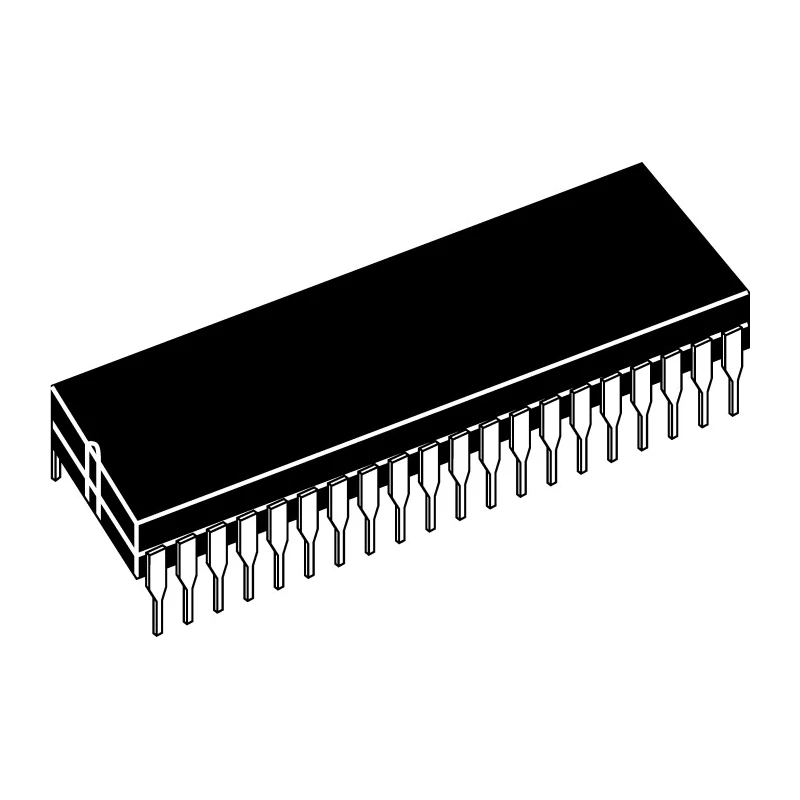

Microchip 8-Bit PIC Microcontroller 40 MHz 16kB FLASH 40-Pin PDIP PIC18F4431-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 53.21mm |
| Model | PIC18F4431-I/P |
| Width | 14.73mm |
| Mount Type | Through Hole |
| Series | PIC18F4431 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 768bit |
| Standards/Approvals | RoHS |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 16 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 256bit |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 9 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features 8-bit PIC device core suitable for embedded applications.
- Program memory size of 16kB FLASH provides efficient code storage.
- Operates with a maximum clock frequency of 40 MHz for fast processing.
- Includes 768-bit RAM and 256-bit expanded memory size.
- Supports 16 programmable input/output pins for flexible interfacing.
- Equipped with two analogue comparators and nine 10-bit ADC channels.
- Designed for operating temperatures from -40°C to 85°C ensuring wide environmental tolerance.
- Utilizes RISC instruction set architecture for optimized performance.
Product Description
Microchip PIC18F4431-I/P is a high-performance 8-bit PIC microcontroller designed for a wide range of embedded control applications. Featuring a 40 MHz maximum clock frequency and 16kB of FLASH memory, this microcontroller delivers efficient processing power in a 40-Pin PDIP package suitable for through-hole mounting.
The device core is based on an 8-bit PIC architecture, making it ideal for simple and complex control tasks. With 768-bit RAM and an expanded memory size up to 256 bits, it offers sufficient data handling capabilities alongside 16 programmable input/output pins for versatile interfacing options.
This microcontroller integrates two analogue comparators and supports nine 10-bit analogue-to-digital converters (ADCs), facilitating precise analogue signal processing in industrial, laboratory, and consumer electronics applications. It is rated to operate across a broad temperature range from -40°C to 85°C, allowing deployment in challenging environments.
The PIC18F4431-I/P uses a reduced instruction set computer (RISC) architecture, enabling faster instruction execution and improved code efficiency. Its through-hole PDIP package simplifies prototyping and circuit board integration, making it suitable for development and production use cases.
Being RoHS compliant, this product meets environmental standards and is safe for use in commercial and industrial equipment. Typical applications include embedded control systems, industrial automation, automotive electronics, and consumer device development.
Features 8-bit PIC device core suitable for embedded applications. Program memory size of 16kB FLASH provides efficient code storage. Operates with a maximum clock frequency of 40 MHz for fast processing. Includes 768-bit RAM and 256-bit expanded memory size.
Supports 16 programmable input/output pins for flexible interfacing. Equipped with two analogue comparators and nine 10-bit ADC channels. Designed for operating temperatures from -40°C to 85°C ensuring wide environmental tolerance.
Utilizes RISC instruction set architecture for optimized performance. Through-hole PDIP package with 40 pins allowing easy prototyping and board mounting. RoHS compliant, ensuring environmental safety and standards adherence.
Explore more Microchip Microcontrollers and embedded solutions on EnvMart for industrial, laboratory, and commercial development projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz, allowing for fast processing capabilities.
It features a program memory size of 16kB FLASH, providing efficient code storage for embedded applications.
The PIC18F4431-I/P is designed to operate within a temperature range of -40°C to 85°C, ensuring functionality in various environmental conditions.
This microcontroller supports 16 programmable input/output pins, offering flexibility for interfacing with other devices.
It comes in a 40-Pin PDIP package, which is suitable for through-hole mounting.
The RAM size of this microcontroller is 768 bits, which supports data handling capabilities for various applications.
This model is equipped with two analogue comparators, enhancing its ability to process analogue signals.
The maximum power dissipation for this microcontroller is 1W, which is important for thermal management in applications.
It utilizes a RISC instruction set architecture, which enables faster instruction execution and improved code efficiency.
This microcontroller supports nine 10-bit analogue-to-digital converter (ADC) channels for precise analogue signal processing.
The microcontroller requires a supply voltage between 2V and 5.5V for proper operation.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards for use in commercial and industrial equipment.
