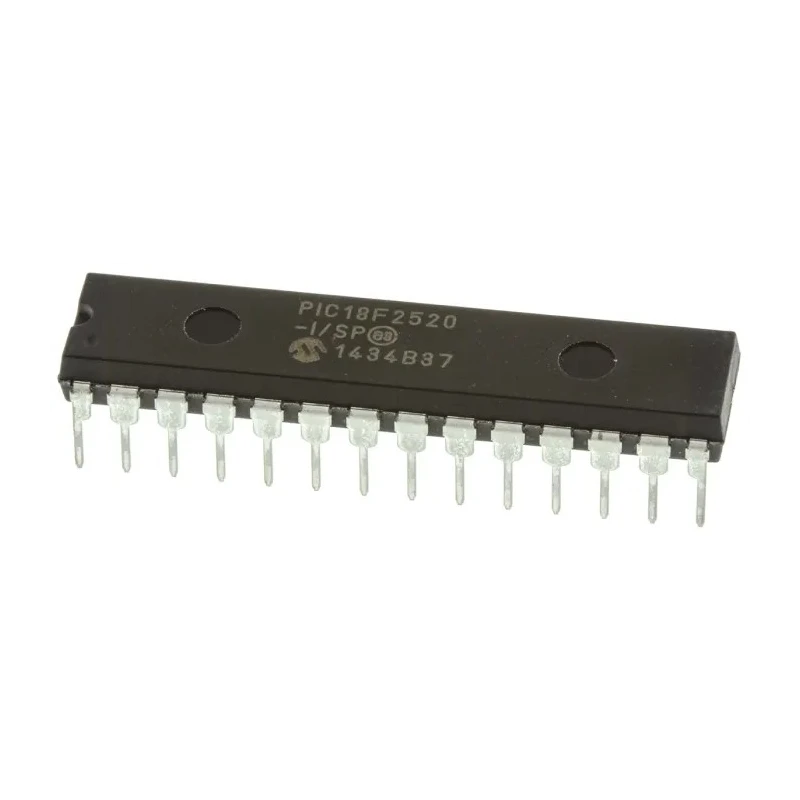

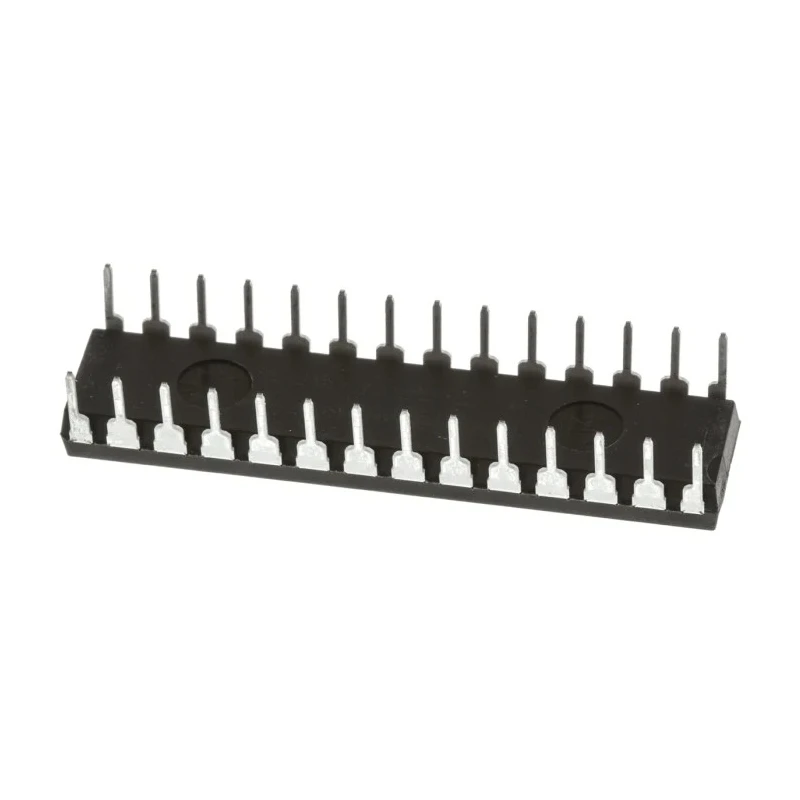

Microchip 8-Bit PIC Microcontroller 32kB FLASH 40 MHz 28-Pin SPDIP PIC18F2520

Microchip PIC18F2520 is a high-performance 8-bit PIC microcontroller designed for embedded system applications requiring reliable, efficient control and processing. Featuring a maximum clock frequency of 40 MHz, it supports a rich instruction set architecture (RISC) enabling up to 10 MIPS performance.

The device is equipped with 32kB of FLASH memory, providing ample program storage, and 1.54kB RAM for operational data management. Its 28-pin SPDIP package with through-hole mount guarantees mechanical robustness and ease of installation into various circuit designs.

Operating voltage ranges between 2V and 5.5V, allowing flexible power configurations suited to numerous application needs in industrial and commercial environments. The microcontroller includes 25 programmable I/O pins facilitating broad interfacing capabilities with external components.

Key peripherals include a 10-channel 10-bit analog-to-digital converter (ADC) for processing analog inputs, four timers for precise timing control, two analog comparators for signal discrimination, and SPI interface enabling serial communications. Additional features are power management technologies including nanoWatt technology and brown-out reset functionalities.

The device operates reliably in industrial temperature ranges from -40°C to 85°C, suitable for harsh environments. It supports extended instruction set enhancements for sophisticated control strategies, and includes in-circuit serial programming (ICSP) and debugging (ICD) capabilities for modern development workflows.

This microcontroller is ideal for applications in automotive, industrial controls, consumer products, and communication systems, offering well-rounded features and proven Microchip reliability. Package includes one Microchip PIC18F2520 8-bit microcontroller in 28-pin SPDIP format.

Max clock frequency of 40 MHz supports high-speed processing. 32kB of FLASH program memory for robust application storage. 1.54kB RAM enables efficient data handling. 28-pin SPDIP package with through-hole mount for easy PCB installation.

Operating voltage range from 2V to 5.5V for flexible power supply options. 25 programmable I/O pins allow versatile interfacing. Includes 10-channel 10-bit ADCs for analog signal processing. Features multiple timers and two analog comparators for precise timing and signal comparison.
