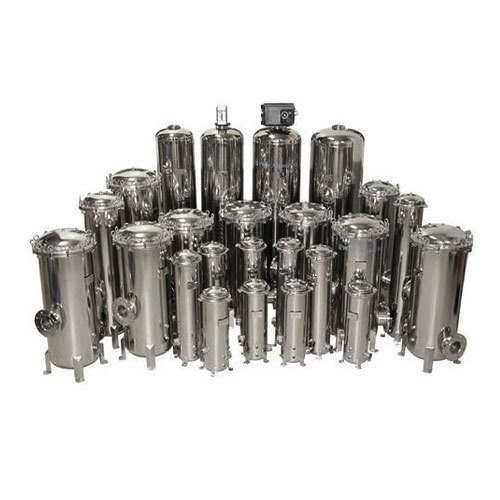

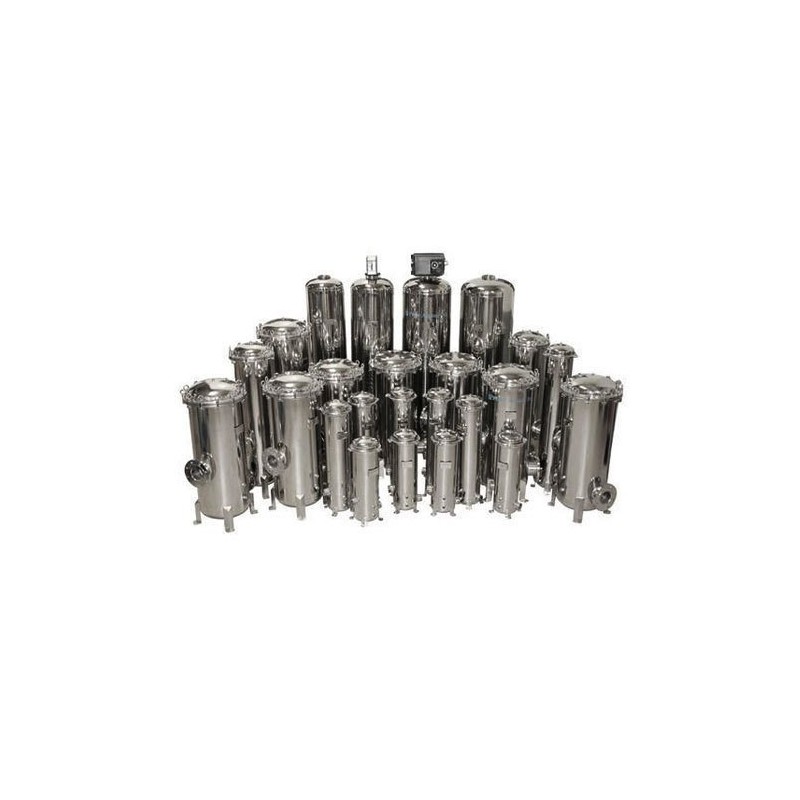

We are one of the leading manufacturer and supplier of Stainless Steel Multi Bag Filter. The stainless steel we use in manufacturing of our bag filter is of best qualityWhat is SS Multi Bag FilterStainless Steel Multi Bag Filter effectively remove dirt,pipe scale,and other contaminants from process liquids.Quality construction and design assure clean effluent and protection for all down stream equipment.Stainless steel Multi-bag filter housings OperationUnfiltered liquid enters the housing above the filter bags or strainer baskets,fills the interior of the housing and continues through the bag or strainer basket.Solids are trapped inside the filter bags or strainers and easily removed when the housing is serviced.Our standard O-ring seal between the baskets and the housing ensures a positive seal to prevent bypass.Features of Stainless steel Multi-bag filter housings1 Max flow rates up to 540ton/h2 Two basket to 18 basket housing designs,depending upon the required surface area and volume of fluid to be filtered.3. Low pressure drop4. Swing bolts with bearing-assisted davit closure5. EPDM,Viton,Buna seals-lid and basket6. Differential,drain,and vent port.7. SUS304 or 316L strainer basket.8. Accept #2-size filter bags.Working Principle of Stainless Steel Multi-bag filter housingsBag filter is a new filtration system, filter bag supported within the metal basket, the liquid flows into the inlet,filtered through the bag out from the exit, impurities were intercepted in the bag, the bag after the replacementcan continue to use.The bag filters is through the filter bag, in the effects of stress, through the filter bag, be prefiltration filter bag interception down pollutants, stranded in the filter bag,filter bag phosphate contained residue stay inside, and filtrate along metal bearing a basket with netting on top wall outflow, achieve  the purpose of filter.Operation instructions of Stainless steel Multi-bag filter housingsSimple operation, it just required that qualified micron filter bag be installed in the filter basket strainer, check working condition of the O shape sealing ring , then tighten the ring bolt of filter cover to start working. After pump is started, the pressure gauge will slightly rise, initial pressure is around 0.05Mpa,as the working time increases, the residue inside the filter housing will increase gradually, when pressure raches 0.4Mpa, the filter must be stopped working and operator should open the filter cover to check the residue in the bag, replaceable filter bag could be continue used (generally,washed bag filters could be repeated use). It is appropriate that filter pressure be setted at 0.1-0.3Mpa , but it could be adjusted through the return line or return valve on pump ,it is important that high working pressure will damage the filter bag and protection strainer.Application of Stainless Steel Multi-bag filter housings1. As the security department of the NF,UF,RO,EDI systerms;2. Biopharmaceutical,petrochemical,chemical industry,etc.3. Electronics, microelectronics, semiconductor industries using high pure water filtration;4. Oil field water injection, boiler water, chemical reagent, organic products, high purity chemicals, thick liquid medicine filter;5. Drinking water,mineral water,fruit juice,tea beverages,health drinks filtration6. Liquor, wine, beer, yellow wine and other wine filtration, pure draft beer aseptic filtration (replacement pasteurization);7. As the security filter in the water pre-treatment systerm,to process the production/living sewage
