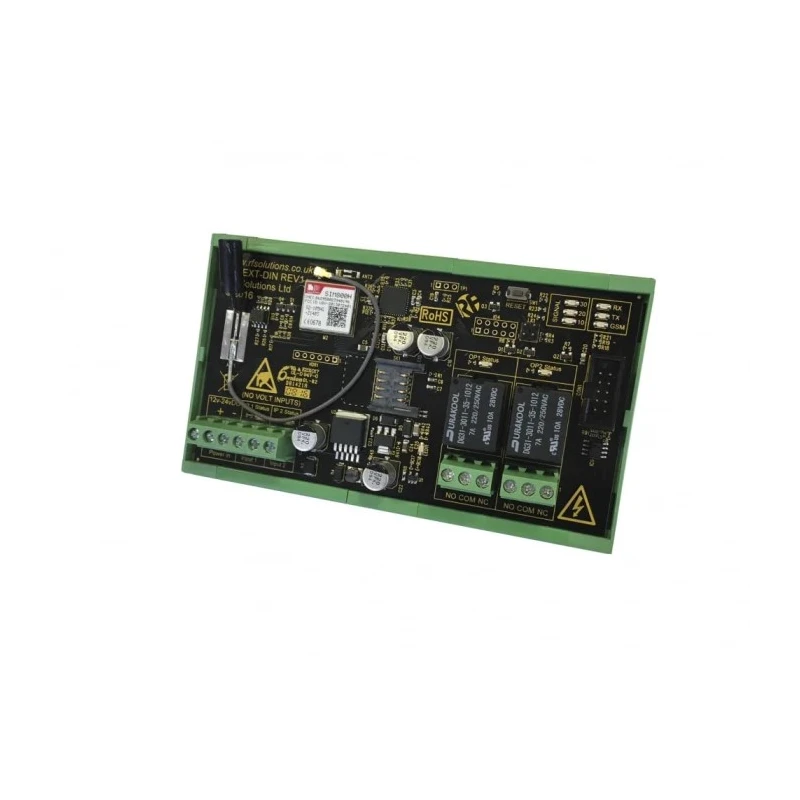

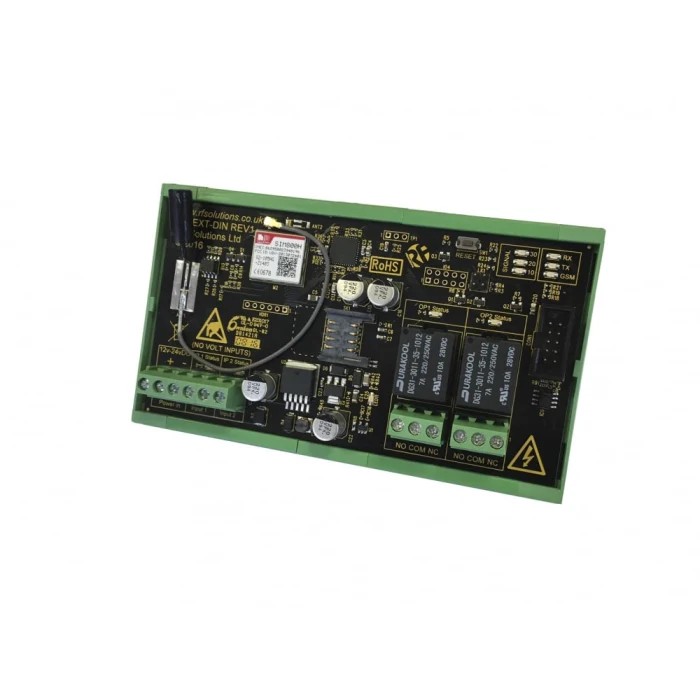

RF Solutions Two-Way GSM Remote Control System 12/24 V 2 Channels EZTEXT-DIN

RF Solutions EZTEXT-DIN is a two-way GSM remote control system designed for industrial and commercial applications requiring remote monitoring and control via SMS text messaging. It operates on a nominal supply voltage of 12/24 V and features two relay changeover contacts rated at 240Vac 5A, enabling reliable switching capabilities.

The system includes two volt-free digital inputs that can be expanded up to 16 inputs and 16 outputs via plug-in modules, providing flexibility to customize control setups. Upon activation of inputs or temperature triggers, the system sends SMS alerts to up to five pre-configured numbers, enhancing situational awareness and remote response.

Installation and configuration are streamlined through SMS text commands, eliminating the necessity for dedicated PC software. Users can assign custom names to each input and output channel and create personalized messages, simplifying operation and management.

The device is housed in a compact enclosure measuring 136mm in width, 78mm in height, and 42mm in depth, suitable for DIN rail mounting and integration into existing control panels. It supports worldwide quad-band GSM connectivity, ensuring compatibility in diverse geographic locations.

Operating temperature ranges from 0°C to 55°C make it suitable for a wide array of industrial environments. Compliance with the RoHS Directive 2002/95/EC, European Radio Equipment Directive 2014/53/EU, WEEE Directive 2002/96/EC, and CE certifications endorses its quality and environmental standards. It is manufactured in the United Kingdom.

Operates with two changeover relay contacts rated at 240Vac 5A. Features two volt-free digital inputs expandable with plug-in modules. Supports SMS alerts to up to five numbers on input activation or temperature triggers.

Easy installation and configuration through SMS commands without PC. Worldwide quad-band GSM compatibility. Allows input/output custom naming and message creation. Compact size suitable for DIN rail applications. Wide operating temperature range of 0°C to 55°C.

Adheres to RoHS, CE, and other European directives.

This remote control system is ideal for remote monitoring, industrial automation, HVAC control, and other commercial applications requiring dependable GSM-based communication. Explore more remote control solutions from RF Solutions and similar industrial equipment categories at EnvMart.
