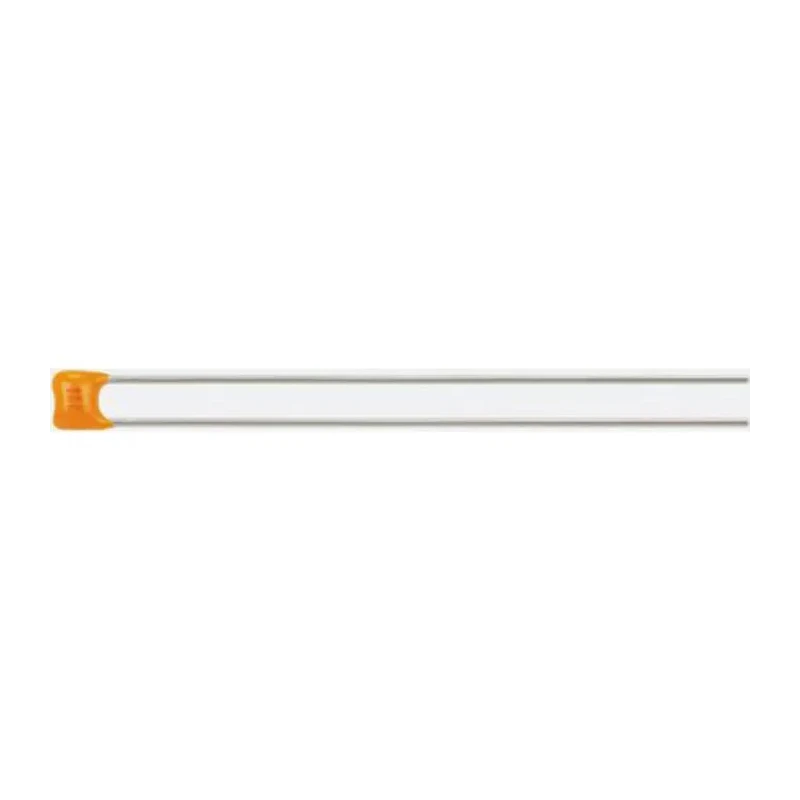

KYOCERA AVX 47 nF 50V dc ±10 % X7R Dielectric Multilayer Ceramic Capacitor Through Hole Solder SR205C473KAR

KYOCERA AVX SR205C473KAR is a 47 nF multilayer ceramic capacitor designed for through hole solder mounting applications, rated at 50V dc with ±10 % tolerance. This component features the X7R dielectric, providing reliable performance over a wide temperature range from -55°C to 125°C, suitable for industrial and electronic component manufacturing.

The capacitor belongs to the SR series known for robust thermal shock and vibration resistance. Its compact dimensions of 5.08mm height and length, and 3.18mm width, along with a lead spacing of 2.5mm and lead diameter of 0.51mm, accommodate precision in circuit board design requiring through hole components.

Packaging on tape and reel supports efficient automated assembly processes. It complies with important industry standards including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, ensuring quality and safety for usage in demanding environments.

This capacitor uses X7R dielectric for stable temperature characteristics. It features ±10 % tolerance ensuring consistent electrical behavior. Designed for operating temperatures from -55°C up to 125°C. Series SR capacitors support wave soldering processes.

Dimensions are compact with 5.08mm height and length, and 3.18mm width. Lead spacing measures 2.5mm with 0.51mm lead diameter for secure mounting. Packaging is tape and reel, facilitating automated placement. Standards compliance includes ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, and RoHS.

This type of capacitor is widely used for bypass, decoupling, filtering, sample and hold, and timing circuits across industrial electronics, power connectors, and electronic component assemblies.
