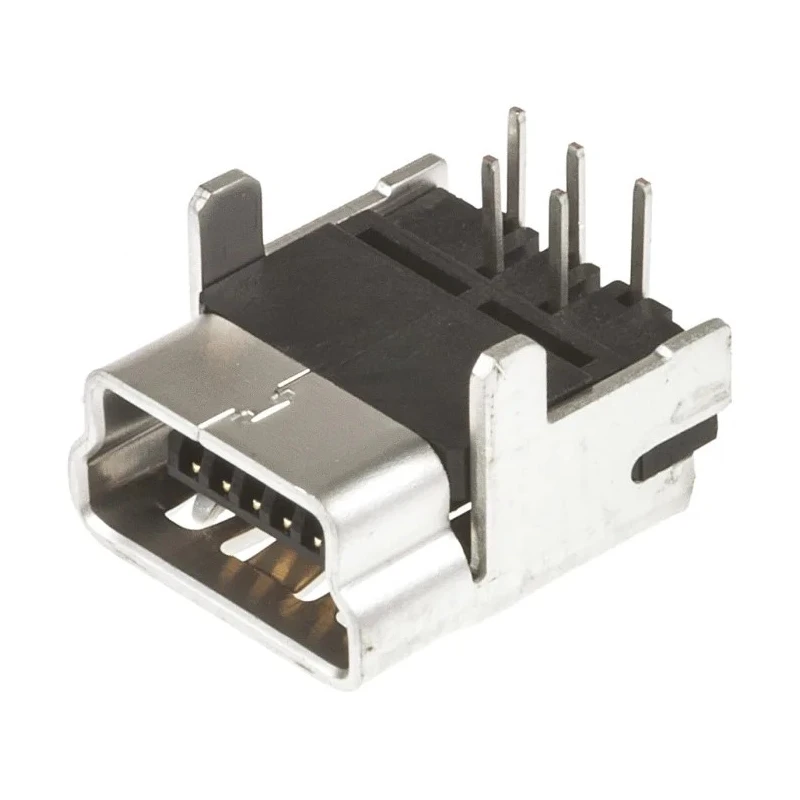

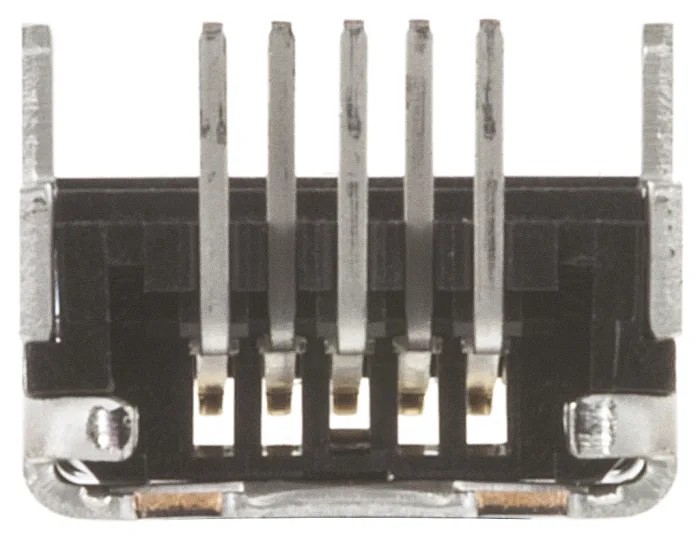

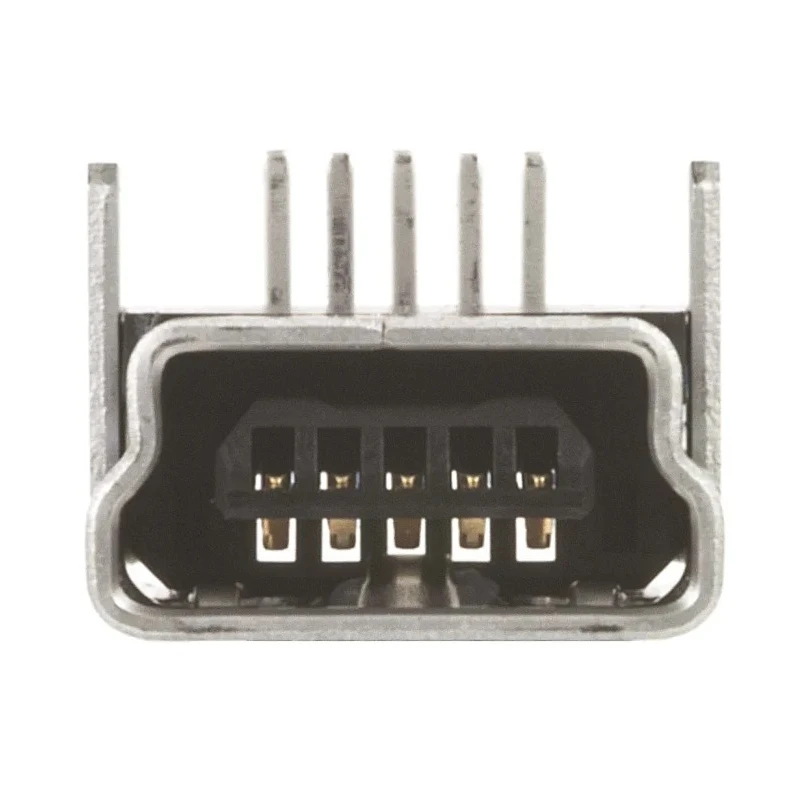

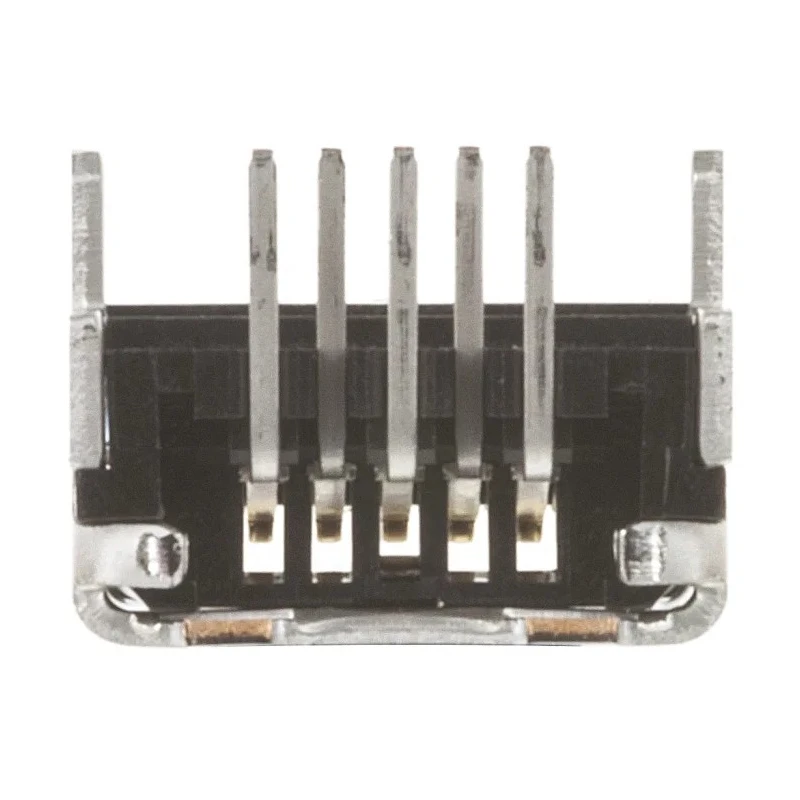

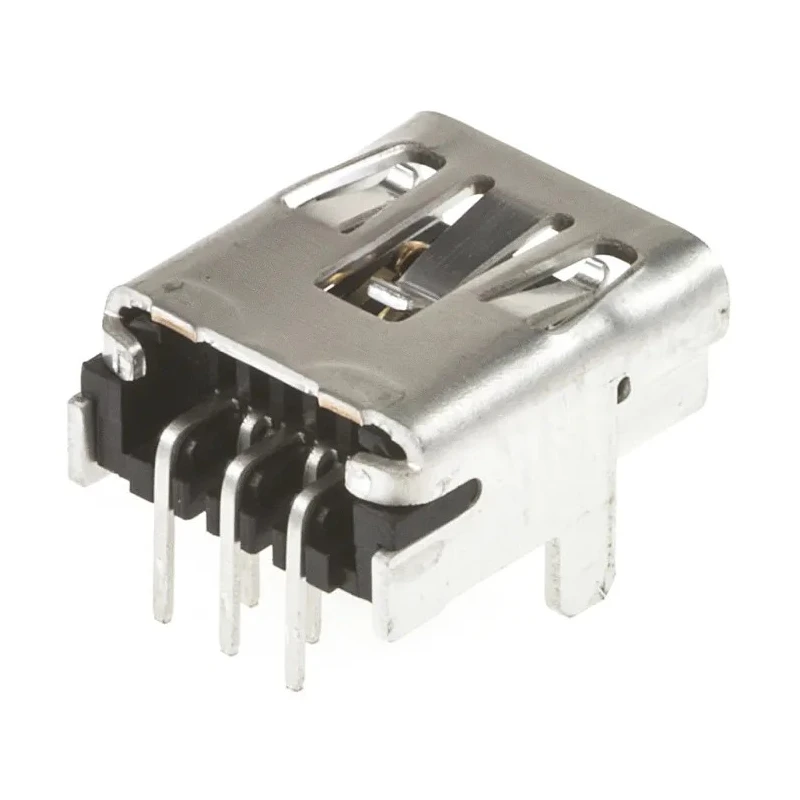

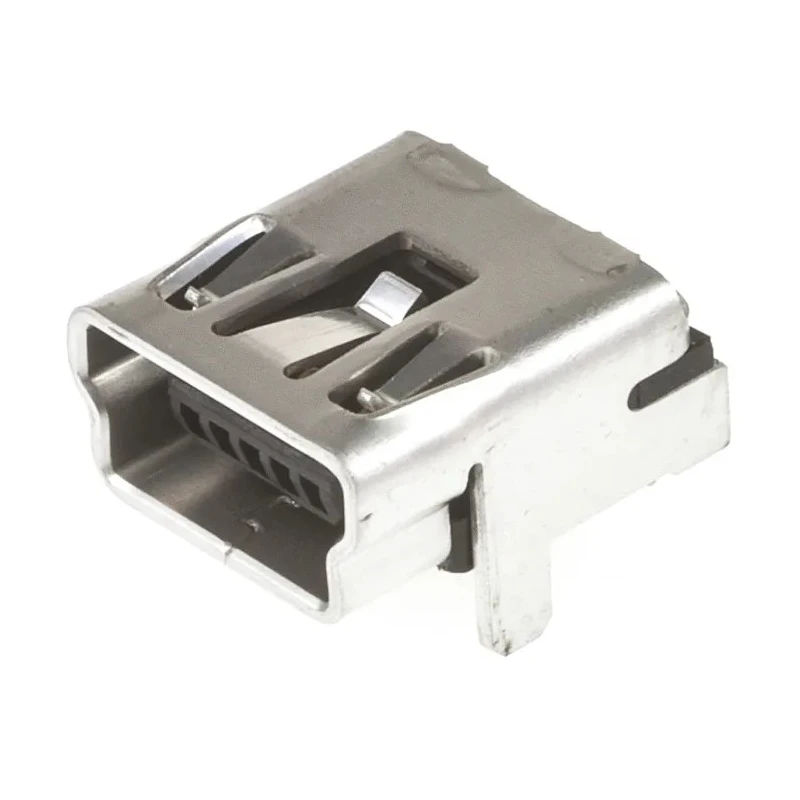

Molex USB 2.0 Right Angle Through Hole Female 1 Port USB Type B Connector 30V 1A 54819-0519
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | On-The-Go |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Interfaces | standard USB-B connector Excellent RFI/EMI performance |
| USB Type | USB Type B |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- The connector features a right angle orientation ideal for space-saving designs.
- Construction includes copper alloy contacts plated with gold for corrosion resistance.
- Supports USB 2.0 standard ensuring data transfer speeds up to 480 Mbps.
- Designed for through hole mounting with solder termination for stable installation.
- Operates reliably between -20°C and +85°C suitable for industrial environments.
- Flame resistant and shielded to minimize electrical interference for clear signals.
- Compact 1 port USB Type B female socket perfect for connecting USB cables to devices.
- Lightweight design weighing approximately 0.57 grams reduces mechanical strain.
Product Description
Molex 54819-0519 is a USB 2.0 Right Angle Through Hole Female Connector designed for robust and reliable connections in electronic devices. The connector supports 30V voltage and 1A current ratings, making it suitable for a variety of industrial and commercial applications.
This connector features a right angle orientation to enable compact PCB layouts and reduce cable strain. Its copper alloy contacts are gold plated to prevent rust and ensure long-term electrical performance. The thermoplastic housing provides resistance to high temperatures, suitable for harsh environments up to 85°C.
The product is versatile in mounting options, supporting through hole and surface mount technologies with solder termination for secure attachment. Designed to conform with USB 2.0 specifications, it delivers data transfer rates up to 480 Mbps and is shielded against electromagnetic interference (EMI) and radio frequency interference (RFI) to maintain signal integrity.
Operating temperature ranges from -20°C to +85°C allow use in challenging environmental conditions. The connector is flame resistant, ceasing to burn within 60 seconds in case of fire, making it safe for hazardous areas.
The right angle socket type B connector supports On-The-Go (OTG) features as part of the USB OTG supplement Rev. 1.0. Ideal for use in audio interfaces, industrial machinery, and equipment requiring compact USB connections.
The lightweight and compact form factor reduces installation space and mechanical stress. Manufactured in China under On-The-Go series and RoHS compliant.
This Molex connector is a reliable choice for designers and manufacturers needing high-quality USB interfaces. It combines durability, performance, and safety for electronic components in industrial, laboratory, and commercial environments.
Explore more from the USB Connector category to find compatible and complementary products for your projects, ensuring seamless integration and superior performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this USB connector is 1A.
This connector supports a voltage of 30V.
It operates reliably between -20°C and +85°C, making it suitable for various industrial environments.
The right angle orientation allows for compact PCB layouts and reduces cable strain, making it ideal for space-saving designs.
This model features solder termination for secure attachment during installation.
Yes, it conforms to USB 2.0 specifications, ensuring compatibility and reliable data transfer.
The contacts are made from copper alloy and are gold plated to prevent corrosion, while the housing is thermoplastic for high-temperature resistance.
It supports data transfer speeds of up to 480 Mbps, adhering to the USB 2.0 standard.
This model is designed for through hole mounting, providing stable installation options.
The connector is shielded to minimize electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring clear signals.
The connector is manufactured in China.
It is ideal for use in audio interfaces, industrial machinery, and equipment requiring compact USB connections.
