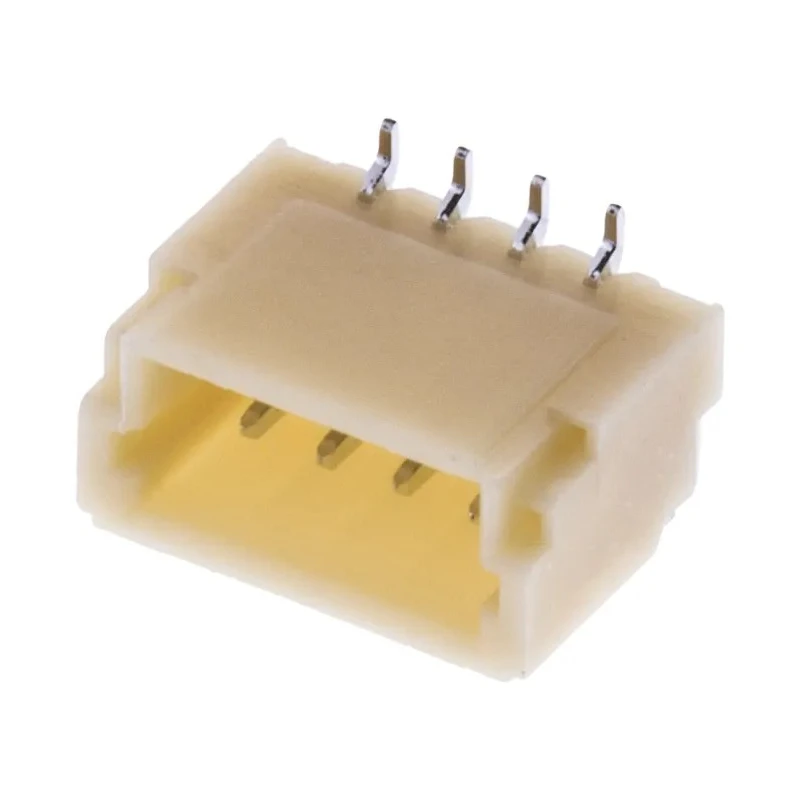

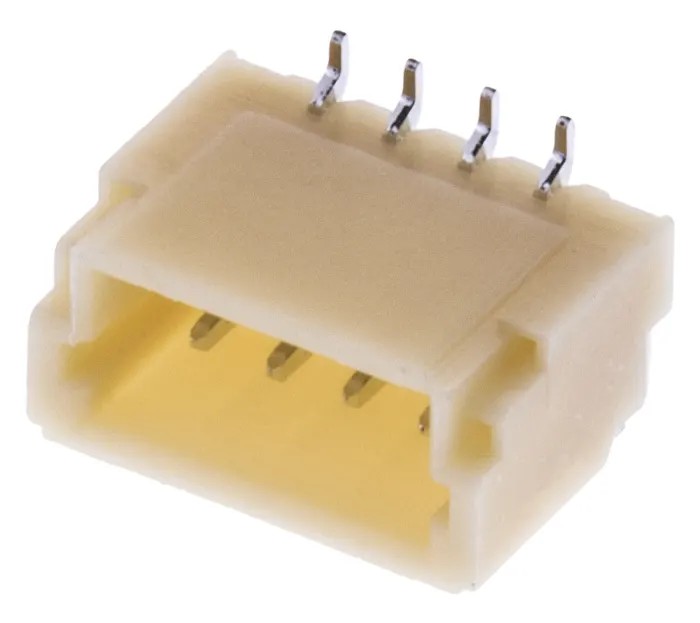

JST SH Series Straight Surface PCB Header 4 Contacts 1 mm Pitch 1 Row Shrouded BM04B-SRSS-TB(LFSN)

JST BM04B-SRSS-TB(LFSN) is a high-quality SH Series Straight Surface PCB Header designed for wire-to-board connections with precise 1 mm pitch and 4 contacts arranged in a single row. The shrouded housing made of polyamide ensures secure connection and mechanical protection. It is a male connector featuring copper alloy contacts with tin plating for effective electrical conductivity and corrosion resistance.

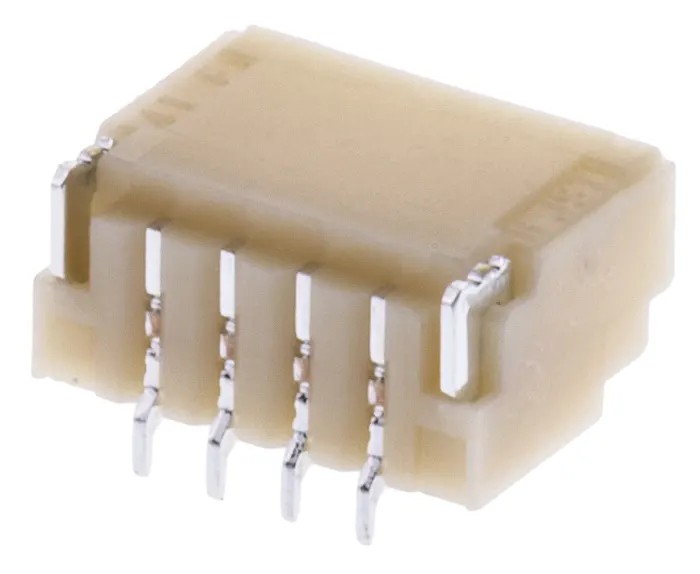

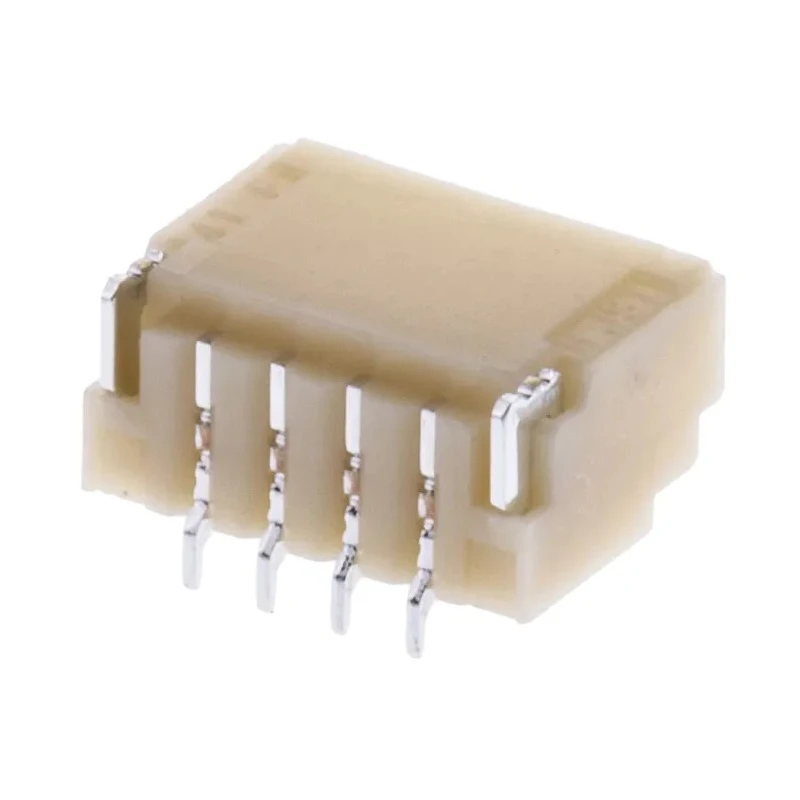

This SMT header includes solder tabs for reinforced mechanical support, enhancing its mounting stability on PCB surfaces. With a current rating of 1A and a voltage rating of 50V, this component suits a variety of electronic applications requiring compact and reliable connectors.

Designed to operate under a wide temperature range from -25°C to 85°C, it is ideal for use in industrial electronics, consumer devices, instrumentation, communication equipment, and other applications where space-constrained, durable, and efficient PCB connections are needed.

The connector mates with the corresponding crimp terminal housing (typical stock number 311-6502), allowing flexible wire harness assembly for efficient installation. Its low profile and polarised housing minimize assembly errors and improve electrical reliability.

This product is manufactured in China and complies with technical standards relevant to electronic components, offering a dependable solution for PCB-based designs. Compact and versatile connector for PCB mounting. Supports current rating of 1A and voltage up to 50V.

Consists of 4 male copper alloy contacts plated with tin. Polyamide housing with shrouded design enhances durability. Designed for surface mount technology with solder termination. Operates reliably from -25°C to 85°C ambient temperature.

1 mm row pitch in a single row configuration. Explore more PCB Headers and electronic component solutions in the Electronics & Electricals category at EnvMart.
