JST SH Series Straight Surface PCB Header 10 Contact 1 mm Pitch 1 Row Shrouded BM10B-SRSS-TB(LFSN)

Free Delivery in India | Lowest Global Shipping Charges

JST SH Series Straight Surface PCB Header 10 Contact 1 mm Pitch 1 Row Shrouded BM10B-SRSS-TB(LFSN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	China
Voltage	50V
Brand	JST
Orientation	Straight
Current	1A
Model	BM10B-SRSS-TB(LFSN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	SH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header features a compact 1 mm pitch suitable for space-constrained electronic applications.
It has 10 male copper alloy contacts plated with tin for optimal conductivity and durability.
The housing is made of durable polyamide material, ensuring mechanical strength and resistance.
Designed with a straight orientation and surface mount technology for efficient PCB assembly.
The header is shrouded to protect contacts and support secure mating.
Operating temperature range is from -25°C to 85°C, suitable for various industrial environments.
Rated for 1 ampere current and 50 volts voltage, matching many low-power PCB interface needs.
Includes solder termination type with additional solder tabs for mechanical support during assembly.

Product Description

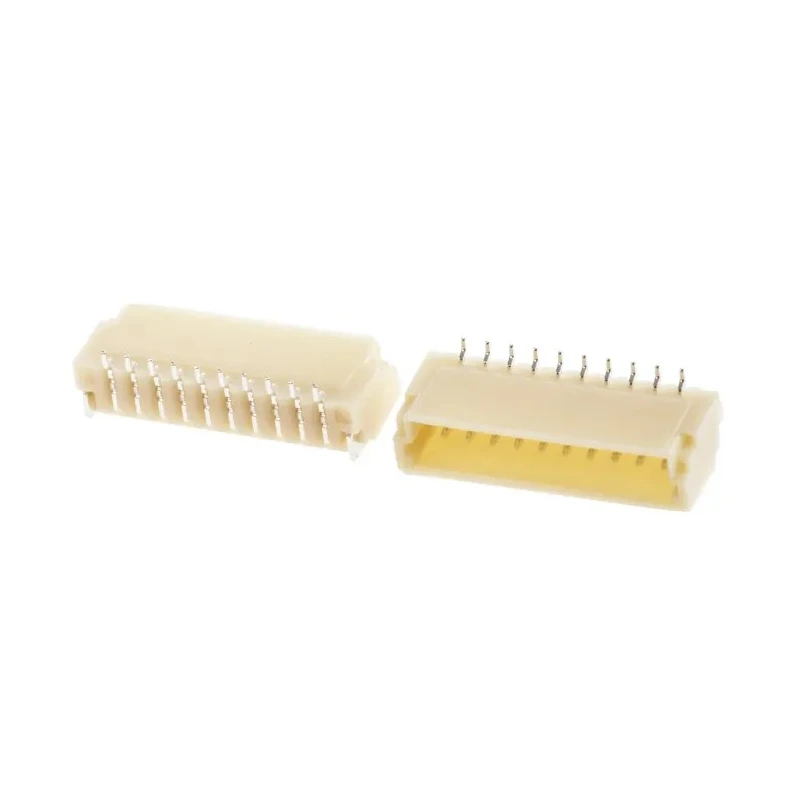

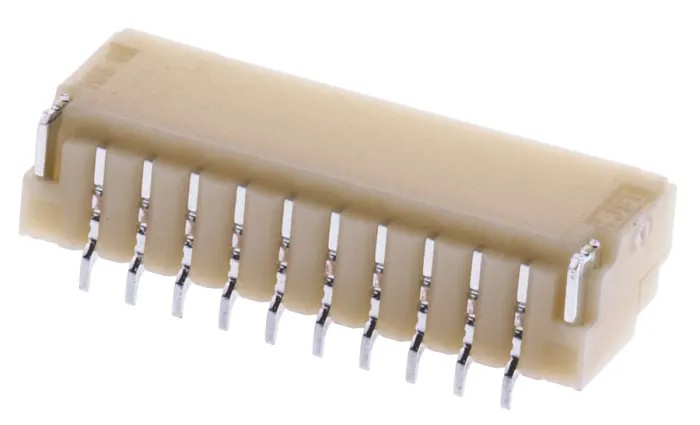

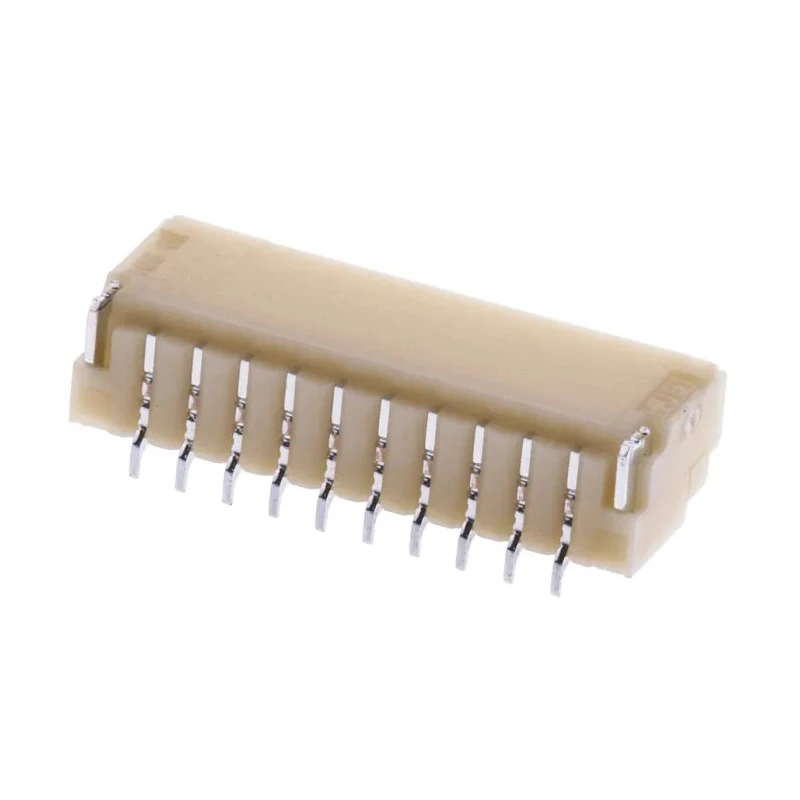

The JST BM10B-SRSS-TB(LFSN) SH Series Straight Surface PCB Header is a high-quality wire-to-board connector featuring a compact 1 mm pitch and 10 contact points arranged in a single row. This shrouded header is designed for surface mount technology, providing reliable mechanical and electrical connections for PCB applications.

Manufactured with polyamide housing and male copper alloy contacts plated with tin, this header ensures durability and consistent performance across a range of industrial and electronic uses. Its straight orientation and solder termination with solder tabs offer enhanced mechanical support and soldering reliability, making it ideal for automated PCB assembly.

Operating reliably within a wide temperature range from -25°C to 85°C, it is suited for electronic components, power & connectors, and other demanding applications where compact size, performance, and protection are critical.

Compact 1 mm pitch design for space-limited PCBs. Durable polyamide housing providing mechanical strength. Male copper alloy contacts with tin plating for corrosion resistance. Straight orientation suitable for standard mounting.

Shrouded contact system for secure mating and protection. Surface mount with solder tabs for strong mechanical fixation. Rated for 1 amp current and 50 volts maximum voltage. Operates in temperatures from -25°C to 85°C.

This JST PCB header is widely used in industrial electronics manufacturing, power connectors assembly, telecommunications equipment, and other applications requiring compact yet durable surface mount connectors. It mates compatibly with JST crimp terminal housing stock number 311-6502.

Explore a wide range of PCB connectors and headers on EnvMart for diverse industrial, commercial, and electronic component assembly needs.

Explore more products in our PCB Headers category.
